H&K 87050.01P Equipment Manual

H&K 87050.01P Equipment Manual

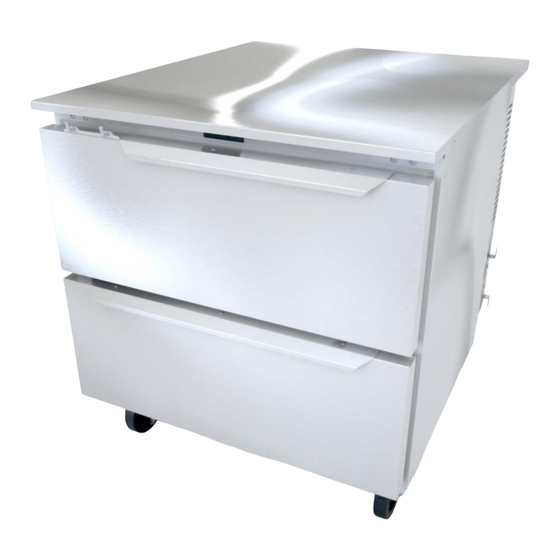

30” 2-drawer refrigerator

Advertisement

30" 2-DRAWER REFRIGERATOR
This manual is for the exclusive use of
licensees and employees of
McDonald's Systems Inc.
Manufactured by:
H&K International
2200 Skyline Drive
Mesquite, TX 75149
U.S.A.
Telephone: (214) 818-3500
Fax:
(214) 818-3596
Distributed by:
H&K International
2200 Skyline Drive
Mesquite, TX 75149
U.S.A.
Telephone: (214) 818-3500
Fax:
(214) 818-3596
©McDonald's Limited
All Rights Reserved
Equipment Manual
H&K Model Number 87050.01P
Revision A – May 2017
Printed in USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 87050.01P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for H&K 87050.01P

  • Page 1 30” 2-DRAWER REFRIGERATOR Equipment Manual H&K Model Number 87050.01P This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. Manufactured by: H&K International 2200 Skyline Drive Mesquite, TX 75149 U.S.A. Telephone: (214) 818-3500 Fax: (214) 818-3596 Distributed by: H&K International...
  • Page 2: Table Of Contents

    Table of Contents Warnings ......................... 3 Introduction ........................4 Power Requirements ....................... 4 Installation Instructions ....................4 Inspection ........................4 Uncrate the Unit ......................4 Remove Packing & Loose Components ..............5 Wash and Sanitize Unit Interior & Drawer Components ..........5 Operating Instructions .....................
  • Page 3: Warnings

    Warnings This Installation & Operating Manual contains important instructions and safety information. Read and understand the contents of this manual before attempting to install, operate, or service the unit. Disconnect all power sources before attempting any service work. A licensed technician should do all servicing and repairs. Use of abrasive pads to clean the unit will result in scratching and spoiling the finish of the unit.
  • Page 4: Introduction

    Introduction The Fresh Product Refrigerator is designed to hold product between 33°F - 40°F temperature during normal and peak sales periods. Power Requirements All electrically operated appliances must be electrically grounded in accordance with local codes, or in the absence of local codes, with National Electric Code, ANSI/NFPA No.
  • Page 5: Remove Packing & Loose Components

    Remove Packing & Loose Components Remove any tape and foam blocking used to secure the loose components. Wash and Sanitize Unit Interior & Drawer Components Note! Use only McDonald’s approved cleaning and sanitizing agents according to instructions. Wipe down, sanitize and dry the refrigerator interior using McD Approved KAY Peroxide Multi-Surface Cleaner &...
  • Page 6: Operating Instructions

    Operating Instructions Temperature Setting The 87050.01P has been tested and preset at the factory to maintain a Product temperature between 33ºF (0°C) and 40ºF (5°C). The temperature controller located on the front panel displays the internal temperature of the refrigerator.
  • Page 7: Loading And Restocking

     DO NOT Overload Drawer, Max Load for the Drawer is (66 lbs., 30kg.) Cleaning Caution! Do not use a pressurized spray to clean the 87050.01P. Caution! Do not use abrasives or strong chemicals to clean any surfaces of the 87050.01P.
  • Page 8: Preventative Maintenance

    Preventative Maintenance Warning! Failure to properly perform scheduled preventative maintenance may void manufacturer’s warranty. WARNING! Verify refrigerator is disconnected from the power source before attempting any preventative maintenance. Failure to disconnect the electric power could result in electric shock, burns, injuries or death. CAUTION! The fins on a condenser coil are very sharp, and some refrigeration components can be very hot, resulting in possible cuts and/or burns.
  • Page 9 Drawer Cleaning and Removal 1) Remove and clean Drawer Organizer. 2) Clean inside and outside of Drawer with McD approved Kay Peroxide Multi-Surface Cleaner and Disinfectant solution. *Please See PM Card for Cleaning Details.* To Remove Drawers 1) open drawer fully and press front drawer lock forward on both sides 2) Grasp both sides of drawer lift and pull drawer forward and out.
  • Page 10 To Reload Drawer 1) First place Roller assemblies back in tracks on as Shown. Push roller assembly To rear of channel to lock roller assembly into track. 2) Please insure that front drawer lock Is in the unlocked/forward position as shown in picture.
  • Page 11 Press front Locking tabs back to lock to insure Safe operation of the Drawer. Now roll Drawer back and forth and verify smooth drawer slide operation. Please Scan QR Code on front of cabinet to access video on to remove and install drawer. This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc.
  • Page 12: Product Warranty

    Product Warranty H&K International makes the following limited warranties to the original purchaser only for this equipment and replacement parts: H&K warrants all components to be free of defects in material and workmanship, if properly installed, operated and maintained, for period of (2) years from the date of the delivery.
  • Page 13: Troubleshooting

    Troubleshooting Warning: Before servicing the unit,Unplug The power cord PROBLEM POSSIBLE CAUSE WHAT TO DO Unit is not “fully” plugged in. Verify unit is plugged into outlet. Plug the refrigerator into another The receptacle on the Wall isn’t extension outlet. If the receptacle on the Unit does not run after plug working.
  • Page 14 The evaporator probe has failed and must be replaced If unit does not go back to normal operation after 1 hour, Call H&K at 800- Controller read ‘def” Unit is currently in defrost cycle. 788-2445 for service If unit does not go back to normal Unit is currently is in recovery operation after 1 hour, Call H&K at 800- Controller read ‘rec”...
  • Page 15: Assembly Drawing

    Assembly Drawing This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. Page 15 of 18 Revision A...
  • Page 16: Wiring Diagram

    Wiring Diagram This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. Page 16 of 18 Revision A...
  • Page 17: Refrigeration Specification

    Refrigeration Specification Refrigerant R-290 Operating pressure LSP = 15 psig HSP = 100 psig Electrical Data 120v-1ph-60hz MCA 2.0 MAX. FUSE 15amps System charge 4.1 oz (116g) Replacement Parts DESCRIPTION H&K PART NO. Compressor P-1-313 Capillary tube 8 Ft. (2.43 m.) of P-1-56-1200 Dryer P-1-24-2 Controller...
  • Page 18: Controller Parameters

    Controller Parameters Parameter Value Parameter 33° F Minimum temperature setpoint 40 F Maximun temperature setpoint 33 F Effective setpoint Operation mode:Refrigeration Hysteresis (Differential) Minimum compressor off time Compressor run time if T1 failure Compressor off time if T1 failure Compressor stop delay door opening (active only if DS=Yes) Defrost start mode: Time interval Defrost interval Defrost timer backup...
