This manual is for the exclusive use of
licensees and employees of McDonald's
Systems Inc.
Manufactured by:
H&K International
2200 Skyline Drive
Mesquite, TX 75149
Telephone: (214) 818-3500
Fax: (214) 818-3596
Distributed by:
H&K International
2200 Skyline Drive
Mesquite, TX 75149
Telephone: (214) 818-3500
Fax: (214) 818-3596
For a full list of worldwide locations,
visit www.hki.com

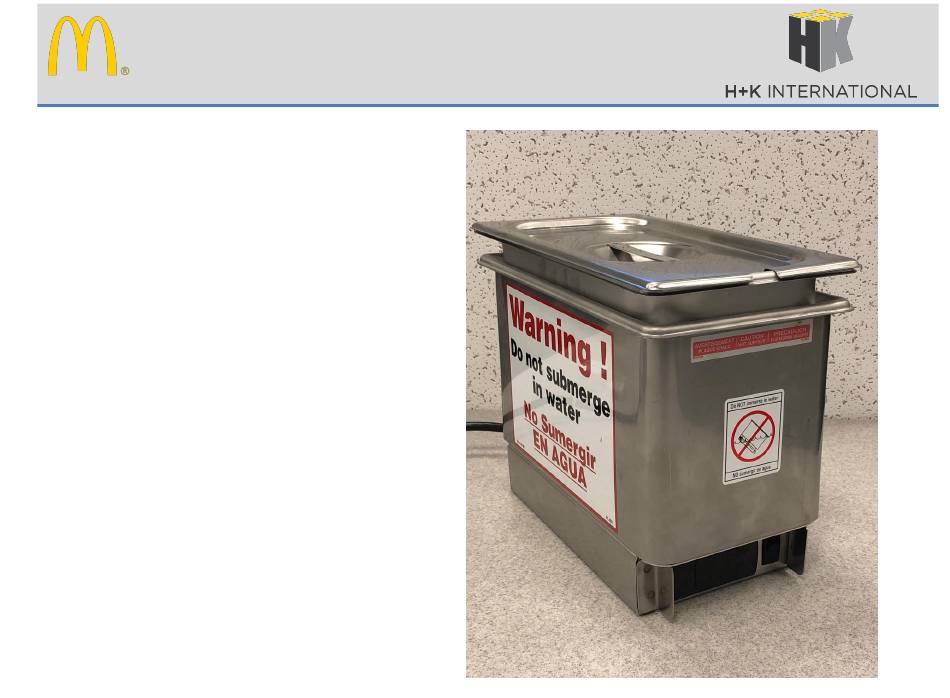

Marinator
Equipment Manual
H&K Model P/N MCR011
U.S.A.
U.S.A.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for H&K MCR011
Summary of Contents for H&K MCR011

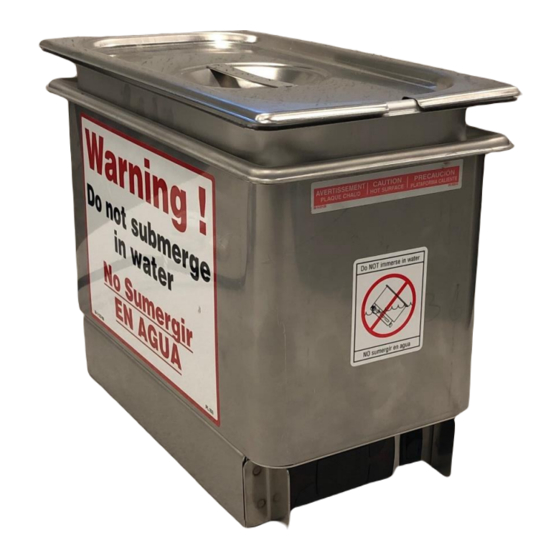

- Page 1 Marinator Equipment Manual H&K Model P/N MCR011 This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. Manufactured by: H&K International 2200 Skyline Drive Mesquite, TX 75149 U.S.A. Telephone: (214) 818-3500 Fax: (214) 818-3596 Distributed by: H&K International...
-
Page 2: Table Of Contents
Marinator MCR011 Table of Contents Section Page Warnings Introduction Warranty Service Information Power Requirements Initial Setup Calibration Check Operation Procedures Parts Description Wiring diagram Troubleshooting Parts Ordering & Service Revision (B) -
Page 3: Warnings
The intention is to have the Marinator at the point of service near the UHC table to expedite assembly of such items as the McRib sandwich. The MCR011 Marinator is to be filled to water level line and turned ON to preheat for 60 minutes prior to loading with product. -
Page 4: Warranty
Marinator MCR011 Product Warranty H&K International makes the following limited warranties to the original Service purchaser only for this equipment and replacement parts: Contact H&K Service Dept for the following: • Service • Maintenance H&K warrants all components to be free of defects in material and •... -
Page 5: Power Requirements
Marinator MCR011 Power Requirements Operation Procedures Insert the Plug of the MCR011 into a standard 120VAC, 60 Hz, 15A Setup: or 20A outlet 1. Plug power cord into the appropriate power source All electrically operated appliances must be electrically 2. Fill the water pan with warm water up to the water level mark on... -
Page 6: Parts Description
Marinator MCR011 Parts Description ITEM NO. DESCRIPTION PART NUMBER CORD 14/3 SJTO 96" E-10-12-8 LIGHTED ROCKER SWITCH E-1-19-1 +FUSE, LITTLEFUSE #326002P 2AMP E-3-21-7 FUSEHOLDER E-3-23-2CS SWITCH, HI-LIMIT (PB) #3L11220 E-5-117 HEYCO 1311,CLEAR WINDOW PLUG E-8-32-2 STRAIN RELIEF E-8-44-1 FOIL HTR,8-1/2X11-1/4" 120V150W... -
Page 7: Wiring Diagram
Marinator MCR011 Schematic Revision (B) -
Page 8: Troubleshooting
Marinator MCR011 Troubleshooting Problem Possible Cause Possible Solution Marinator does not heat 1. No power at receptacle Check receptacle power 2. Power switch not ON Turn power on 3. Marinator not fully plugged into receptacle Plug the Marinator cord into 120V 15A... -
Page 9: Parts Ordering & Service
Marinator MCR011 Parts and Ordering Service Returns Contact: H&K Dallas, Inc. Disconnect all power sources before attempting any service or repair work. 2200 Skyline Drive Mesquite, TX 75149 Caution! A qualified licensed technician should perform all service and repair. (214) 818-3500 Damages and Shortages Upon receipt, examine the equipment carefully for any damage.
