This manual is for the exclusive use of licensees and employees of McDonald's Systems
Manufactured by:
H&K International
1343 South Henderson Avenue
Dallas, TX 75223
U.S.A.
Telephone: (214) 818-3500
Fax:
(214) 818-3596
©McDonald's Limited
All Rights Reserved

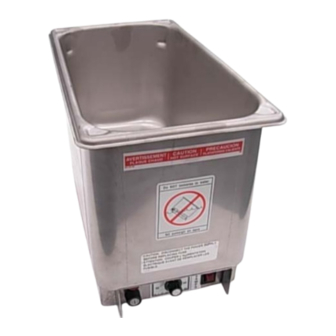

Marinator
(H&K P/N MCR009)
Equipment Manual
Inc.
Revision 6 – October 08
Distributed by:
H&K International
1343 South Henderson Avenue
Dallas, TX 75223
U.S.A.
Telephone: (214) 818-3500
Fax:
(214) 818-3596
Printed in USA
Advertisement
Table of Contents
Related Manuals for H&K MCR009
Summary of Contents for H&K MCR009
- Page 1 Marinator (H&K P/N MCR009) Equipment Manual This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. Manufactured by: Distributed by: H&K International H&K International 1343 South Henderson Avenue 1343 South Henderson Avenue Dallas, TX 75223 Dallas, TX 75223 U.S.A.
-
Page 2: Table Of Contents
Marinator Operations Manual Table of Contents Warnings ........................3 Introduction ........................ 3 Warranty ........................4 Service Information ....................4 Power Requirements ....................5 Initial Setup ........................ 5 Calibration Check ...................... 5 Operation Procedures ....................6 Parts Description ......................7 Wiring Diagram ......................9 Troubleshooting ....................... -
Page 3: Warnings
Marinator at the point of service in the Prep/Packaging Table to expedite assembly of such items as the McRib Sandwich. The MCR009 Marinator is to be filled to the water level line and turned ON to preheat for 30 to 40 minutes prior to loading with product. -
Page 4: Warranty
Marinator Operations Manual Warranty The company assumes no liability for expenses or repairs made by other parties except by written consent. Corrections of such defects by repair or replacement shall constitute fulfillment of all company obligations to the purchaser. H&K shall not be liable for loss, damages, or expenses arising from the misuse, abuse, alteration, accident or improper installation of the Marinator such as: •... -
Page 5: Power Requirements
Marinator Operations Manual Power Requirements Insert the plug of the MCR009 Marinator into a standard 120VAC, 60 Hz, 15A outlet. All electrically operated appliances must be electrically grounded in accordance with local codes, or in the absence of local codes, with National Electric Code, ANSI/NFPA No. -
Page 6: Operation Procedures
Marinator Operations Manual Operation Procedures Setup: 1. Plug the power cord into the appropriate power source. 2. Fill the water pan with warm water up to the water level mark on the ends of the pan. 3. Turn the thermostat dial to the correct setting. 4. -
Page 7: Parts Description
Marinator Operations Manual Parts Description Item #7 Item #3 Item #1 Items #4 & 5 Item #2 Item #6 Item Description H&K Part Number Lighted On/Off Power Switch E-1-19-1 Thermostat E-4-3-139 Pilot Light E-6-32 Fuse Holder E-3-23-2CS Fuse (2 amp Littlefuse #326002) E-3-21-7 Strain Relief Bushing E-8-44-1... - Page 8 Marinator Operations Manual This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. Page 8 of 13...
-
Page 9: Wiring Diagram
Marinator Operations Manual Wiring Diagram This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. Page 9 of 13... -
Page 10: Troubleshooting
Marinator Operations Manual Troubleshooting PROBLEM POSSIBLE CAUSE WHAT TO DO 1. Power switch not ON. 1. Turn power on Marinator does not heat. 2. Marinator not fully 2. Plug the Marinator cord into plugged into receptacle. 120V 15 amp receptacle. 1. -
Page 11: Installing The Marinator
1. Remove a 1/3 size condiment pan from the Prep/Packaging Table, as shown in the picture. 2. Place the MCR009 Marinator in the same opening and plug into a standard 120V outlet. This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. -
Page 12: Parts Ordering And Service
Marinator Operations Manual Parts Ordering and Service Returns Contact: H&K Dallas, Inc. 1343 South Henderson Avenue Dallas, TX 75223 (214) 818-3500 Damages and Shortages Upon receipt, examine the equipment carefully for any damage. If damage has occurred, notify the carrier and H&K Dallas, Inc. immediately. Service and Parts Contact: H&K Dallas, Inc. -
Page 13: Notes
Marinator Operations Manual Notes This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc. Page 13 of 13...
