- Page 1 H&K EUROPE User manual Filet Freezer 804048V Filet Chiller 804800 Please keep in the McDonald’s store equipment manual for future reference...
-
Page 2: Table Of Contents
Contents Warning Introduction Manufacturer’s details Warranty Purchase record Installation Operation Technical information Maintenance Troubleshooting Setting operational temperature MTR12 Controller configuration LAE MTR12 Controller configuration FK207T Setting operational temperature FK207T Fault codes FK207T Replacement parts Wiring schematic Issue 1:1 31.10.2002... -
Page 3: Warning
Warning Do not operate, maintain or repair the filet freezer without first reading this manual Care should be taken when moving the unit as it is of considerable weight Alteration of the controller may result in operating difficulties Disconnect power source before maintaining or repairing the unit Do not steam clean, jet wash or use high-pressure hoses on, or in the vicinity of, this unit. -
Page 4: Introduction

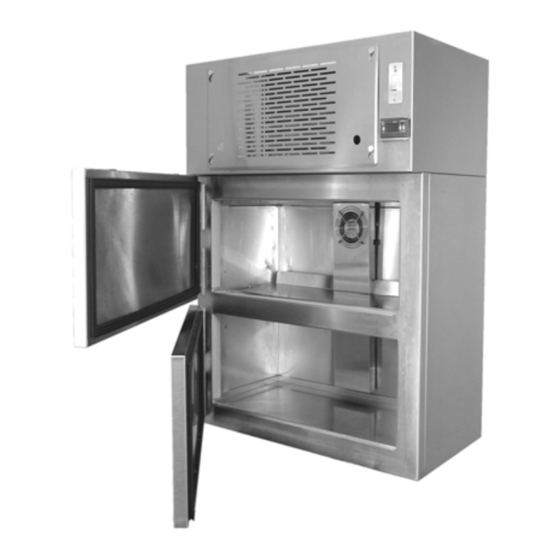

Introduction The Filet Freezer and Filet Chiller holding cabinets have been specifically designed for the McDonald’s corporation to hold food products at regulated temperatures. Pre-frozen products are held in the Filet freezer at the regulated temperature of -18°C to -24°C and chilled products are held at 1°C to 4°C in the Filet Chiller. -
Page 5: Warranty
Warranty Equipment manufactured by H&K Ltd is guaranteed for a period of one year from date of purchase. H&K Ltd warranty terms covers labour charges and replacement of defective parts within this period. Claims for defective equipment will be accepted if the defect is a result of manufacturing error or of a part’s non-compliance. -
Page 6: Installation
Installation Upon receipt of equipment inspect for damage. Any damaged parts should be reported to H&K Ltd within 24 hours of receiving the unit. The unit must be kept upright at all times (i.e. in working position) and must be securely fixed to the wall using the Mounting Bracket provided. Temperature settings on the controller have been factory pre-set and should not require adjustment. -
Page 7: Maintenance
Maintenance Ensure power is disconnected before attempting any maintenance work Cleaning the condenser The condenser (pictured below) must be kept clean in order to maintain a clear passage through which air may pass. Air is continually drawn through the condenser fins, along with dust, lint, paper, grease, etc. Do not allow this dirt to build up and block vision through the fins. -
Page 8: Troubleshooting
Troubleshooting Problem Cause Repair Unit will not 1. Unit not plugged in 1. Plug unit into relevant start socket 2. No power to unit 2. Check store power supply (controller display not (isolator breaker tripped) illuminated) WARNING! Electricity can kill 3. -
Page 9: Controller Configuration Lae Mtr12
Information for service company LAE MTR12 controller configuration Read following instructions fully before commencing any alterations Set key Adjustment Display keys Programming the controller to the Filet Freezer and Chiller units Commence with unit switched off Step Press Display Press Display Adjust display reads... -
Page 10: Controller Configuration Fk207T
Read following instructions fully before commencing any alterations FK 207T Controller configuration Display Adjustment keys Set key Programming the controller Commence with the unit switched on If before all of the proceeding steps are completed no key action is detected for 60 seconds the controller will revert back to its running mode. -
Page 11: Setting Operational Temperature Fk207T
Setting the operating temperature FK207T Unit must be switched on Adjustment parameters Press and hold Set key Adjust FREEZER CHILLER UNIT UNIT -24°C 01°C Fault codes FK207T This new controller has a fault indication program that aid’s in recognising problem’s that may occur with the refrigeration aspects. A simple code, listed below, will show on the controller display. -
Page 12: Replacement Parts
Replacement parts Description Part number Quantity On/off Switch E11020 LAE MTR12 Controller (Freezer) 1000-R02010 LAE MTR12 Controller (Chiller) 1002-R02010 Fk207T controller (Freezer) 1000-R02012 Fk207T controller (Chiller) 1001-R02012 Probe R02009 Compressor R01112 Capillary Tube and Drier R01201 Condenser Fan Motor R01020 Condenser Fan Blade R01021 Mains Cable... -
Page 13: Wiring Schematic
Wiring schematic Freezer Chiller Issue 1:1 31.10.2002...
