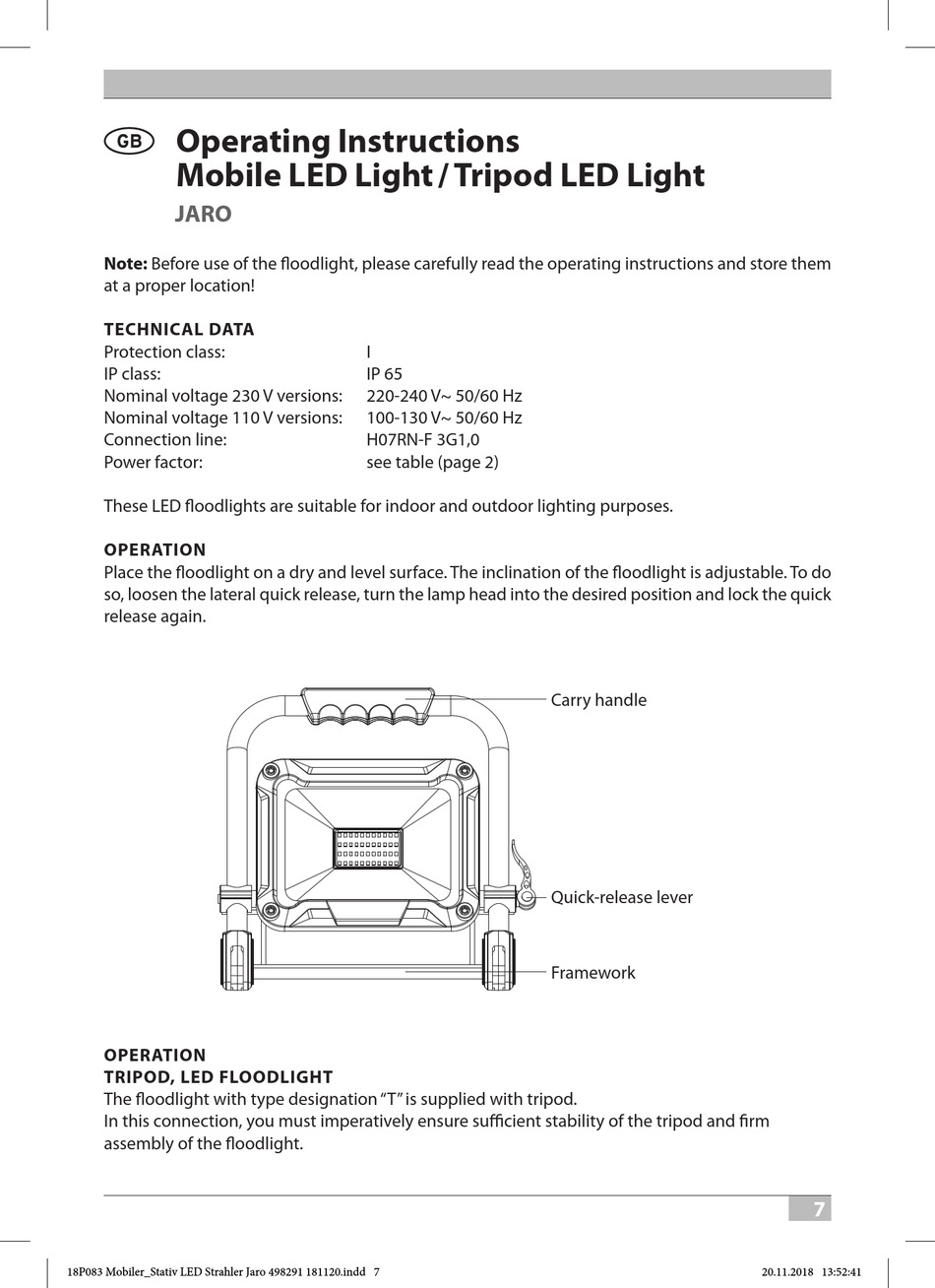

Operating Instructions
D

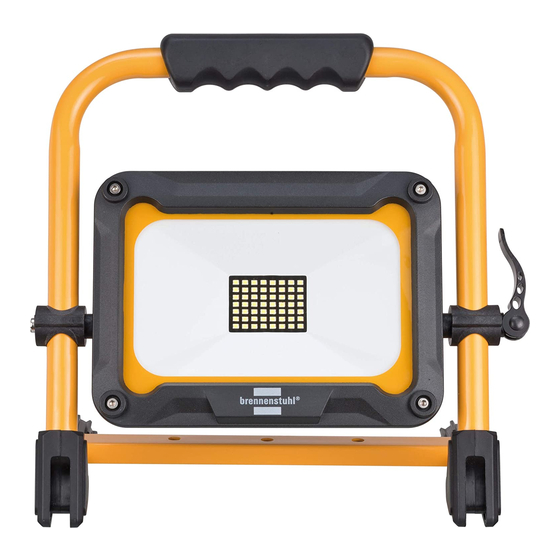

Mobile LED Light / Tripod LED Light
JARO
Note: Before use of the floodlight, please carefully read the operating instructions and store them
at a proper location!

TECHNICAL DATA

Protection class:
IP class:
Nominal voltage 230 V versions:
Nominal voltage 110 V versions:
Connection line:
Power factor:
These LED floodlights are suitable for indoor and outdoor lighting purposes.

OPERATION

Place the floodlight on a dry and level surface. The inclination of the floodlight is adjustable. To do
so, loosen the lateral quick release, turn the lamp head into the desired position and lock the quick
release again.
OPERATION

TRIPOD, LED FLOODLIGHT

The floodlight with type designation "T" is supplied with tripod.
In this connection, you must imperatively ensure sufficient stability of the tripod and firm
assembly of the floodlight.
18P083 Mobiler_Stativ LED Strahler Jaro 498291 181120.indd 7
I
IP 65
220-240 V~ 50/60 Hz
100-130 V~ 50/60 Hz
H07RN-F 3G1,0
see table (page 2)
Carry handle
Quick-release lever
Framework
7
20.11.2018 13:52:41
