Status Instruments SEM1600B User Instructions

SEM1600B
USER INSTRUCTIONS
Important - Please read this document before installing.
Every effort has been taken to ensure the accuracy of this document; however, we do
not accept responsibility for damage, injury, loss or expense resulting from errors and
omissions, and we reserve the right of amendment without notice.
IMPORTANT – CE, UKCA & SAFETY REQUIREMENTS
Product must be DIN rail mounted, inside a suitable enclosure providing environmental
protection to IP65 or greater.
To maintain CE UKCA requirements, input and supply wires must be less than 30
metres.
The product contains no serviceable parts, or internal adjustments. No attempt must be
made to repair this product. Faulty units must be returned to supplier for repair.
Before attempting any electrical connection work, please ensure all supplies are
switched off.
ABSOLUTE MAXIMUM CONDITIONS (To exceed may cause damage
to the unit).
Supply voltage (SELV)
Current with over-voltage
Input voltage
Input current
Environmental protection
Ambient
--------------------------------------------------------------------------------------------------------------

1~DESCRIPTION.

The SEM1600B is a powered bridge amplifier for use with strain
gauges or load cell signals. The product has a built-in capability to
scale the input signal to a process value while the output stage offers
either voltage, bipolar voltage or active/passive current retransmission
signals. The device uses ratio metric measurement to obtain high
stability.
The product comes with an AC/DC power supply that will operate in
the range (10 to 48) VDC and (10 to 32) VAC making the device ideal
for battery operation. An additional volt-free contact input is available
for tare setting using a remote switch. The high precision input stage
of the device allows for a bridge excitation voltage of 5 VDC to be
used, as opposed to the traditional 10 VDC. This reduces the power
requirement for the bridge supply and up to four bridges (cells) may
.
be connected to the input
To configure: connect a standard USB cable between the SEM1600B
and a PC. The free configuration software will guide you through any
changes you wish to make. The SEM1600B does not need to be
wired to a power supply for configuration.

2~RECEIVING AND UNPACKING.

Please inspect the packaging and instrument thoroughly for any signs of transit
damage. If the instrument has been damaged, please notify your supplier immediately.

3~SPECIFICATION.

Refer to the datasheet for full specification. Download at
Factory Calibration factor 2 mV/V, Balance 0.0
defaults Sample rate 10 per s, Filter Off
Scale 2 points
Tare Setpoint 0, Tare Offset 0
Process Output 0 to 100 = (4 to 20) mA
Button locks Off
D2534-01-04
± 50 Vdc Protected for over-voltage
and reverse connection
± 200 mA
± 10 VDC between any terminals
± 100 mA between any terminals
IP65 or greater required
Temperature (-30 to 75) °C
RH (10 to 95)% non-condensing
Important – Read this
document before installing.
www.status.co.uk

4~INSTALLATION AND WIRING.

Important safety requirements
This equipment is suitable for Environment Installation BS EN61010-1
Pollution Degree 2; Installation CAT II; CLASS I and is classed as
"PERMANENTLY CONNECTED EQUIPMENT". The equipment is
intended for industrial and commercial application only and is not
suitable for domestic or medical use.
The equipment must be mounted inside an enclosure that provides
protection >= IP65. In NORMAL USE, the equipment will only be
accessed for maintenance by qualified personnel.
Please ensure the equipment is mounted vertically with terminals (10,
11 and 12) at the bottom. This will provide maximum ventilation.
This equipment may generate heat. Ensure the enclosure size is
adequate to dissipate heat. Be sure to consider any other equipment
inside the enclosure.
The equipment surfaces may be cleaned with a damp cloth. Use a
mild detergent/water. Ensure the supply is off before cleaning and, on
completion of cleaning, the equipment is completely dry before the
supply is turned back ON.
This equipment must be installed by a qualified person. All electrical
wiring must be carried out in accordance with the appropriate
regulations for the place of installation.

4.1~MECHANICAL.

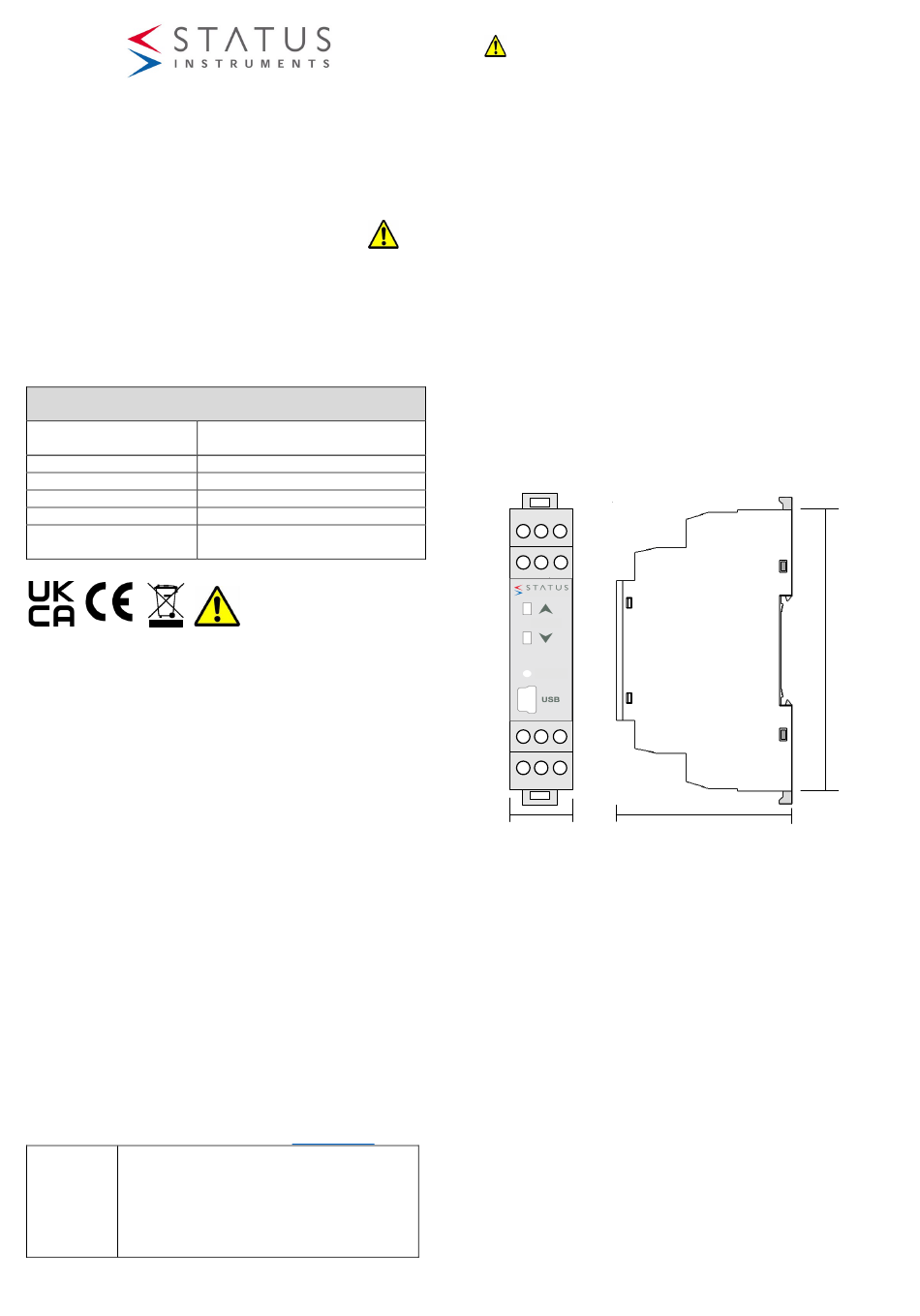

Dimensions in mm
1 2 3
4 5 6
ADJUST
ST ATE
1
2
7 8 9
10 11 12
17.5 mm
The equipment must be mounted on a DIN rail style DIN EN50022
inside a plastic or metal enclosure with a protection level >= IP65. All
wiring must be secured. Maximum cable sizes 2.5 mm². Connection is
via screw clamp terminals.

4.2~ELECTRICAL/CONNECTIONS

For wiring connections refer to the side label on the SEM1600B and
this document.
Supply (10 to 48) Vdc, (10 to 32) Vac
To maintain CE EMC requirements, input and supply wires must be
less than 30 metres.
Input cable lengths > 3 m it is recommended to use screened or
twisted pair.
Maximum mA output cable run = 1000 metres. The output loop
should be grounded at a single point.
Before installation, care must be taken to ensure enough voltage is
available in any loop to drive the total loop load.
90mm
56.4 mm
