Sealey sa12/S.v2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
 WARNING! Ensure Health & Safety, local authority and general
workshop practice regulations are adhered to when using this
equipment.
 WARNING! Disconnect the hammer from the air supply before
changing accessories, servicing or performing any maintenance.
 Keep the hammer clean and maintain it in good condition (use an
authorised service agent).
 Replace or repair damaged parts. Use genuine parts only.
Unauthorised parts may be dangerous and will invalidate the warranty.
 Keep the work area clean and uncluttered. Ensure that there is
adequate lighting.
 Ensure chisels are correctly rated for the job. DO NOT use
damaged or suspect chisels.
 WARNING! Wear approved safety eye or face protection, ear
defenders and, if dust is generated, respiratory protection.
 Keep hands and body clear of the work when operating the hammer.
 Maintain correct balance and footing. Ensure that the floor is not
slippery and wear non-slip shoes.
 Remove ill fitting clothing. Remove ties, watches, rings and other
loose jewellery and contain and/or tie back long hair.
 Keep children and unauthorised persons away from the work area.
 Secure unstable workpiece with a clamp, vice or other adequate
holding device.
 Avoid unintentional starting.
2. AIR SUPPLY
The recommended set-up is shown in fig. 1.
2.1. Ensure the trigger is in the "off" position before connecting to the air supply.
2.2. You will require an air pressure of 90psi and an available air flow
of 4cfm to operate the unit.
2.3.  WARNING! Ensure the air supply does not exceed 90 psi while
operating the hammer. Too high an air pressure and/or unclean air will
shorten the product life due to excessive wear and may be dangerous,
causing damage and/or personal injury.
2.4. Drain the air tank daily. Water in the air line will damage the hammer.
2.5. Clean the air inlet filter screen weekly.
2.6. Line pressure should be increased to compensate for unusually long air
hoses (over 8 metres). The minimum hose diameter should be 10mm I.D.
and fittings must have the same inside dimensions.
2.7. Keep hose away from heat, oil and sharp edges. Check hoses for wear, and
2.8 Couplings. Vibration may cause failure if a quick change coupling is connected directly to the hammer. To overcome this, connect a
leader hose to the hammer. A quick change coupling may then be used to connect the leader hose to the air line recoil hose. See fig 1 & 2.
fig 1
3. INTRODUCTION & SPECIFICATION

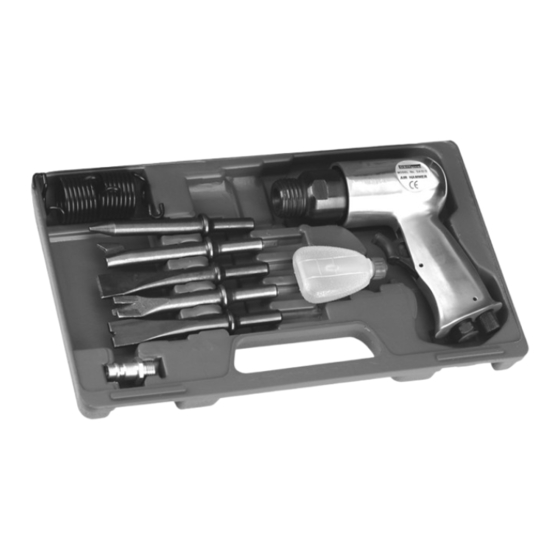

GS/TUV approved quality long stroke air hammer supplied in carry case. Kit also includes spare retainer spring, long blade panel cutter, special
panel cutter, panel cutter,
SPECIFICATION
Chisel Shank . . . . 0.401" Parker Taper
Speed . . . . . . . . . . . . . . . . . . . 4500bpm
Stroke . . . . . . . . . . . . . . . . . . . . . 32mm
muffler tail pipe remover,
Operating Pressure . . . . . . . . . . . 90psi
Air Consumption. . . . . . . . . . . . . . 4cfm
Air Inlet . . . . . . . . . . . . . . . . . . .1/4"BSP
Original Language Version
INSTRUCTIONS fOR:
MEDIUM STROKE AIR HAMMER
SA12/S.V2
MODEL NO:
 WARNING! Ensure that the correct air pressure is maintained and
not exceeded.
 Keep air hose away from heat, oil and sharp edges. Check air hose
for wear before each use and ensure that all connections are secure.
 DO NOT use the hammer for a task it is not designed to perform.
 DO NOT operate the hammer if any parts are damaged or missing
as this may cause failure and/or personal injury.
 WARNING! DO NOT chisel into any materials containing asbestos.
 DO NOT switch the hammer on whilst the chisel is in contact with
the workpiece.
 DO NOT carry the by the hose, or yank the hose from the air supply.
 DO NOT hold the workpiece by hand. Use clamps or a vice (not
included) to secure the workpiece. Available from your Sealey dealer.
 DO NOT allow untrained persons to operate the hammer.
 DO NOT operate the hammer when you are tired or under the
influence of alcohol, drugs or intoxicating medication.
 DO NOT use hammer where there is flammable liquid, solid or gas
such as paint solvent, including waste wiping or cleaning rags etc.
 DO NOT leave the hammer operating unattended.
 DO NOT carry the hammer with your finger on the trigger.
 DO NOT direct air from the air hose at yourself or others.
 When work is complete ensure that the air supply is turned off.
 When not in use disconnect from the air supply and store in a
safe, dry, childproof area.
m a k e certain that all connections are secure.
cold chisel, air hose connector
fig 2
and air tool lubricating
Weight . . . . . . . . . . . . . . . . . . . . . 1.2kg
Noise Level. . . . . . . . . . . . . . . . .98.7dB
Vibration . . . . . . . . . . . . . . . . . 25.3m/s2
SA12/S.V2 Issue: 2 - 04/11/09
oil.
