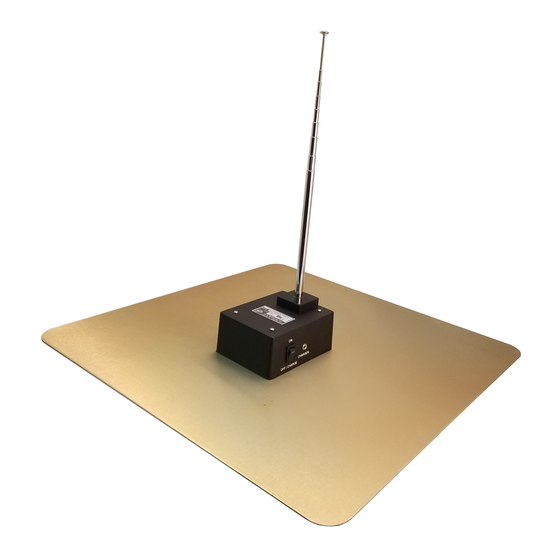

- Page 1 A.H. Systems Model Active Monopole Antennas Active Monopole Antennas User Manual © A.H. Systems inc REV E...
-
Page 2: Table Of Contents
A.H. Systems Model Active Monopole Antennas TABLE of CONTENTS Introduction Safety Instructions Specifications Operating instructions Calibration Accessories Maintenance Troubleshooting Warranty Information © A.H. Systems inc REV E... -
Page 3: Introduction
A.H. Systems Model Active Monopole Antennas INTRODUCTION Frequency Part Model Range Number Description SAS-550-1B 9 kHz – 60 MHz 2380 Active Monopole Antenna, Battery Powered SAS-550-2B 100 Hz – 60 MHz 2381 Active Monopole Antenna, Battery Powered Included parts: •... -
Page 4: Safety Instructions
A.H. Systems Model Active Monopole Antennas SAFETY PRECAUTIONS This equipment is intended for general laboratory use in a wide variety of industrial and scientific applications and designed to be used in the process of generating, controlling and measuring high levels of electromagnetic Radio Frequency (RF) energy. It is the... -
Page 5: Specifications
A.H. Systems Model Active Monopole Antennas SPECIFICATIONS GENERAL DESCRIPTION The A.H. Systems active monopole antennas are active, general-purpose, receive-only antennas which cover the 100 Hz – 60 MHz frequency range. They are ideal for instantaneous bandwidth scanning (without tuning) of electric fields in its frequency range and can drive any receiver with an input impedance of 50 . -
Page 6: Operating Instructions
A.H. Systems Model Active Monopole Antennas OPERATING INSTRUCTIONS ASSEMBLY INSTRUCTIONS To prepare the antenna for operation, attach the telescoping rod antenna element to the top of the high impedance preamplifier. Adjust the rod length to 41” (1.04 meters). Do not operate the Monopole antenna with the Battery Charger connected. - Page 7 A.H. Systems Model Active Monopole Antennas GENERAL USE INSTRUCTIONS The calibration tables shown provide a listing of the frequency of operation and its antenna factor in dB/m. The field strength is the receiver voltage in dBV plus the antenna factor (refer to the antenna factor calibration) plus any cable loss.
-
Page 8: Calibration
A.H. Systems Model Active Monopole Antennas CALIBRATION Equivalent Capacitance With changes to our Active monopole antenna (converting the input connection from a BNC to a more rugged ¼-20 input) our element diameter changed to 6.17mm (Average). It is our recommendation to use a 12 pF for the ECSM fixture for an element height of 41” (1.04 meter) as per ANSI C63.5:2017 and CISPR 16-1-6:2017. - Page 9 A.H. Systems Model Active Monopole Antennas Active Monopole Calibration The antenna factor for the rod antenna shall be determined by measuring the signal transfer characteristics with the matching device and assuming that the antenna is a short monopole with an infinite ground plane.
-
Page 10: Accessories
ATU-510 (Antenna Tripod, wooden) The ATU-510 wooded Tripod comes with a spring loaded 1/4-20 male thread for mounting all of A.H. Systems and most other compliance measurement antennas. This wood tripod can hold up to 30 lbs. (13.6 Kg). Each wooden leg is adjustable independently of each other. -
Page 11: Maintenance
MAINTENANCE To ensure reliable and repeatable long-term performance, annual re- calibration of your active monopole preamplifier by A.H. Systems’ experienced technicians is recommended. Our staff can recalibrate almost any type or brand of antenna. For more information about our calibration services or to place an order for antenna calibration, visit our website at www.AHSystems.com or call (818) 998-0223. - Page 12 A.H. Systems Model Active Monopole Antennas FAQ’s Q: Is your output connector bonded to the network case per MIL-STD 461F/G? A: The signal output connector is bonded to the antenna matching network case. Q: The product page states that the antenna includes an 18” ground plane but the standard I’m testing to requires at least a 60cm ground plane?
-
Page 13: Troubleshooting
Charger not plugged in Replace battery pack assembly Low response / No gain Front end damage, possible ESD Contact A.H. Systems, inc. SERVICE INFORMATION If you have any questions or comments regarding this unit’s operation or you need technical advice, repair, or genuine factory replacement parts, please contact our Customer Service Department or visit our website at www.AHSystems.com. -
Page 14: Warranty Information
A.H. Systems Model Active Monopole Antennas WARRANTY INFORMATION A.H. Systems Inc., warrants that our Antennas, Sensors and Probes will be free from defects in materials and workmanship for a period of three (3) years. All other products delivered under contract will be warranted for a period of two (2) years. Damage caused by excessive signals at the product's input is not covered under the warranty.
