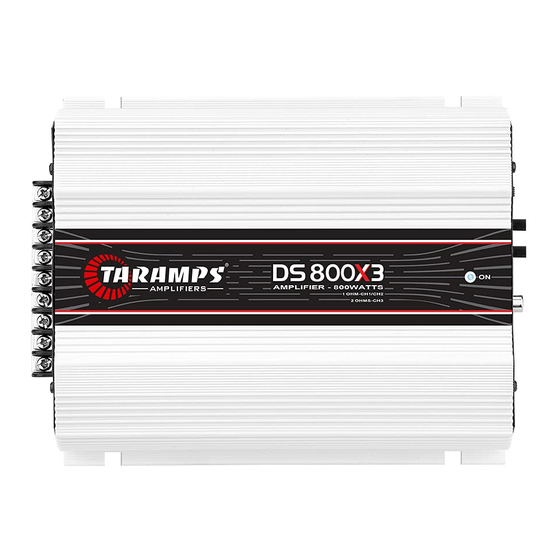

Introdução Parabéns pela compra de um produto Taramps. Desenvolvido em moderno laboratório, com a mais alta tecnologia e profissionais altamente qualificados. Este manual explica todos os recursos, operações e orientações para solucionar dúvidas que possam surgir em sua instalação. Reserve algum tempo para lê-lo atentamente e garantir uma instalação adequada e o uso de todos os benefícios que este produto pode oferecer.
Funções e entradas LEVEL CH1 / CH2 BASS INPUT BOOST HIGH INPUT MAX. 10dB 100Hz 700Hz AUTOMATIC REMOTE 1 - HIGH INPUT L / R (FIO): Entradas dos sinais a serem amplificados. Conectar as mesmas às saídas amplificadas (FIOS) do CD / DVD Player. Obs: Usando esta entrada, não será...
Page 5
Conector de saída e alimentação POWER 1 - OUTPUT CH1 / CH2 : Para conectar o(s) alto falante(s). Seguir a polaridade indicada e a impedância mínima recomendada. (Veja impedância no adesivo superior do amplificador). O canal CH1 é associado a entrada L. O canal CH2 é...
Instalação Qualquer ligação nos conectores de alimentação, entrada ou saída deverão ser feitas somente com o amplificador desligado. Bitola de fiação e fusível recomendados Cabo de alimentação positivo / negativo_______________________________10mm² Bitolas dos cabos de saída __________________________________________ 1,5mm² Bitola do cabo remote ____________________________________________ 0,75mm² Fusível ou disjuntor de proteção_________________________________________60A Atenção: O uso de fiação com bitola inferior ao recomendado causa perda de potência e sobreaquecimento da fiação.
Page 7
Note: In case of horns and tweeters you must install a passive filter in the positive terminal of the same ones (Consult transducer’s manufacturer manual). 4 ohms 4 ohms DS800X3 2 2 ohms 2 ohms DS800X3 1 4 ohms 4 ohms...
Page 8
Introduction Congratulations on your purchase of a Taramps product. It was developed in a modern laboratory and with the latest technology. This manual covers all features, operations and instructions to solve any doubt that may arise during the installation. Please take some time to read it carefully in order to ensure the proper installation and the use of all benefits that this product can offer.
Functions & inputs LEVEL CH1 / CH2 BASS INPUT BOOST HIGH INPUT MAX. 10dB 100Hz 700Hz AUTOMATIC REMOTE 1- INPUT FOR SIGNALS L / R (HIGH LEVEL): Signal connectors to be amplified. Connect them to the hi-level output connections (WIRES) from CD / DVD player. Attention: Using this connector, the connection of the REMOTE cable is isn’t required.
Output & power supply connector POWER 1 - OUTPUT CH1 / CH2: To connect the speaker(s). Follow the polarity and the minimum impedance recommended. (See impedance on the top of the amplifier). The CH1 output comes from L input. The CH2 output comes from R input. Both CH1 and CH2 has a fixed HPF filter 100Hz (-12dB/8 oct).
Page 11
Características técnicas / Technical features Impedância Mínima de Saída 2 OHMS 1 OHM Minimum Output Impedance: Número de Canais Number of Channels: Potência Nominal CH1/ CH2 (2 x 200W RMS) 2 OHMS* CH1/ CH2 (2 x 200W RMS) 1 OHM* Output Power / @12.6VDC: CH3 (1 x 400W RMS) 4 OHMS** CH3 (1 x 400W RMS) 2 OHMS**...
