Summary of Contents for Taramps Electronics BASS 3K

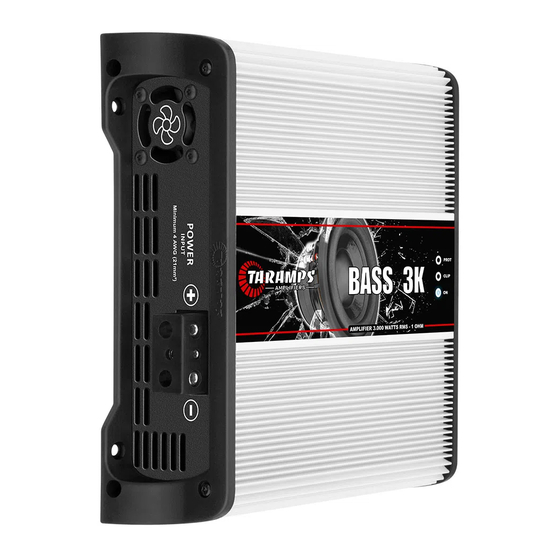

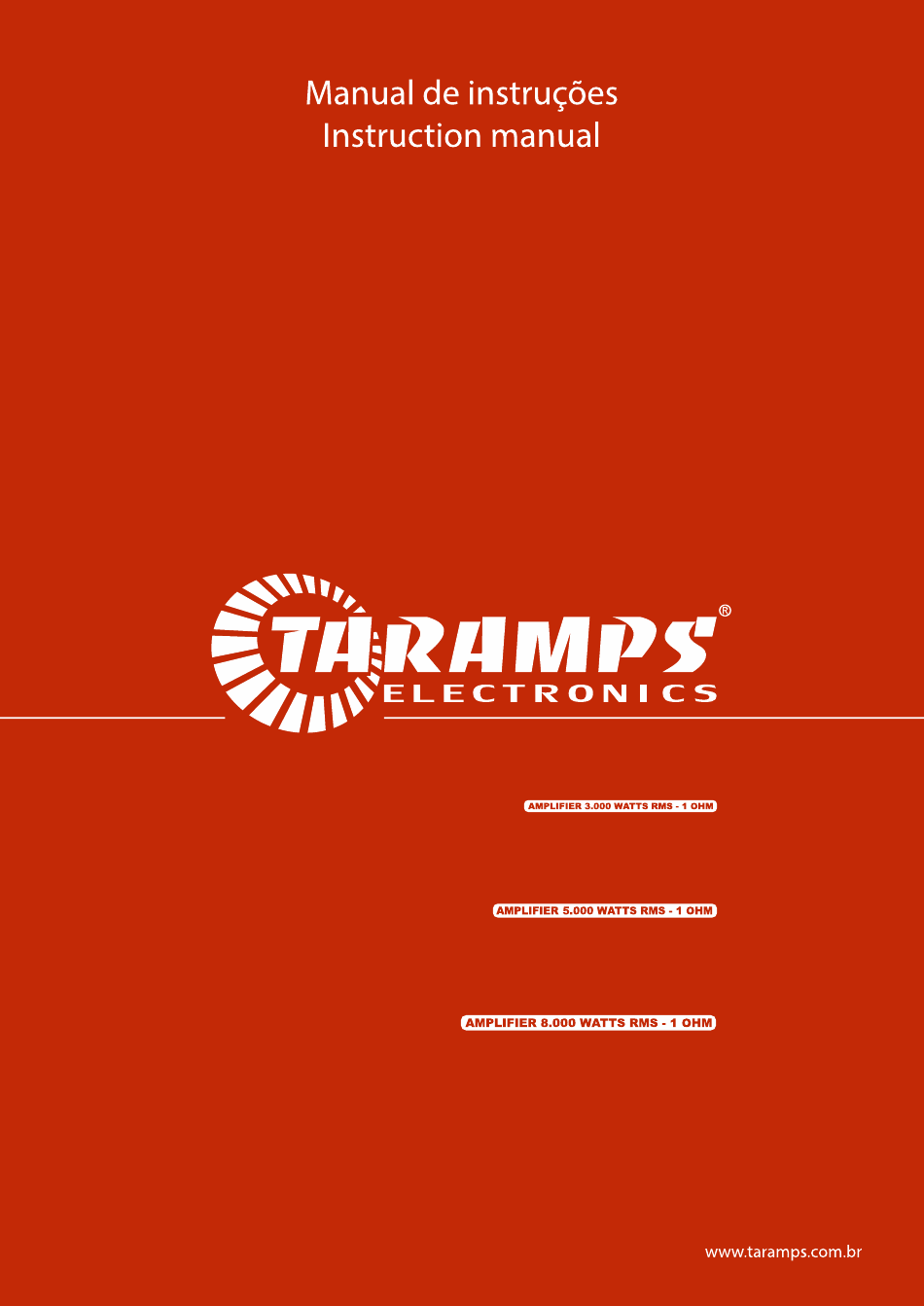

  • Page 1 BASS BASS BASS...

  • Page 2: Table Of Contents

    Brasil e estamos sempre prontos para atender suas or contact direct the factory support: dúvidas e necessidades. Para localizar uma Assistência Técnica Taramps Electronics Phones: +55 18 3266-4050 / +55 18 99749-3391 E-mail: angelo.assistencia@taramps.com.br perto de você, basta acessar nosso site: www.taramps.com.br/pt/rede-de-assistencias-tecnicas...

  • Page 3: Introdução

    Introdução Parabéns pela compra de um produto Taramps. Desenvolvido em moderno laboratório, com a mais alta tecnologia e profissionais altamente qualificados. Este manual explica todos os recursos, operações e orientações para solucionar dúvidas que possam surgir em sua instalação. Reserve algum tempo para lê-lo atentamente e garantir uma instalação adequada e o uso de todos os benefícios que este produto pode oferecer.

  • Page 4: Funções, Entradas E Saídas

    Funções, entradas e saídas Bass 3K SPEAKER LEVEL SUBSONIC FREQ. BOOST CROSSOVER BASS BOOST MONITOR INPUT Bass 5K / BASS 8K SPEAKER LEVEL SUBSONIC FREQ. BOOST CROSSOVER BASS BOOST MONITOR REMOTE INPUT 1 - INPUT (R e L): Entradas dos sinais a serem amplificados. Conectar as mesmas às saídas RCA do CD / DVD Player, utilizando cabos blindados de boa qualidade para evitar a captação de ruídos.

  • Page 5: Conector De Alimentação

    2 4 3 1 - COOLERS: Bass 3K: Possui um cooler de ventilação interna. Bass 5K / 8K: Possui dois coolers de ventilação interna. Para perfeito funcionamento, não obstrua o(s) cooler(s). O amplificador deve ser instalado em local seco e arejado.

  • Page 6: Instalação

    Bass 5K / 8K ____________________________________________________________________2/0 AWG Output cables (loudspeakers) Bass 3K _________________________________________________________________________9 AWG Bass 5K / 8K _____________________________________________________________________ 7 AWG Remote cable Bass 3K / 5K / 8K _________________________________________________________________ 18 AWG Fuse or protective circuit breaker Bass 3K__________________________________________________________________________ 130A Bass 5K__________________________________________________________________________ 210A Bass 8K__________________________________________________________________________ 320A Caution: Using wire gauges below the recommendation will result in power loss and overheating of wiring.

  • Page 7: Exemplo De Instalação

    (Vide página 04). Examples of connections in the power supply input: Note: Minimum battery bank capacity required: * The Bass 3K remote is located on the power panel of Bass 3K = At least 130A the unit. (See page 09)

  • Page 8: Introduction

    Introduction Congratulations on your purchase of Taramps product. It was developed in a modern laboratory and with the latest technology. This manual covers all features, operations and instructions to solve any doubt that may happen during the installation. Please take some time to read manual carefully in order to ensure the proper installation and the use of all benefits that this product can offer.

  • Page 9: Functions, Inputs & Outputs

    Functions, inputs & outputs Bass 3K SPEAKER LEVEL SUBSONIC FREQ. BOOST CROSSOVER BASS BOOST MONITOR INPUT Bass 5K / BASS 8K SPEAKER LEVEL SUBSONIC FREQ. BOOST CROSSOVER BASS BOOST MONITOR REMOTE INPUT 1 - INPUT (R and L): Inputs of signals to be amplified. Connect these signals to RCA outputs of Head Unit , using good quality shielded cables to avoid noise influence.

  • Page 10: Power Supply Connector

    2 4 3 1 - FANS: Bass 3K: It has one internal ventilation fan. Bass 5K / 8K: It has two internal ventilation fans. For perfect operation, do not block the cooler(s). O amplifier must be installed in a cool and aired place. It is recommended not to embed it, so that the air circulates throughout the inside of the product extension, thereby preventing the thermal protection from acting.

  • Page 11: Características Técnicas

    Os valores citados são típicos e podem sofrer pequenas variações devido a tolerância de componentes ou do processo de fabricação. Para maiores informações ou dúvidas acesse nosso site ou entre em contato com o suporte da TARAMPS ELECTRONICS. *Rated power with 60Hz sinusoidal signal and THD <= 1%, with resistive loads, measured with Audio Precision APx525 audio analyzer or equivalent and the product at lower than 50°C case temperature and 14.4V supply voltage.

This manual is also suitable for:

Bass 8kBass 5k
