Thomasville RENOVATIONS Bryant Park Assembly Instructions Manual

Tv stand
Hide thumbs

Advertisement

Quick Links

Download this manual
Bryant Park (3182 C04)
tv stand
style# 3182-157-1 C04
>> assembly instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the RENOVATIONS Bryant Park and is the answer not in the manual?

Questions and answers

Related Manuals for Thomasville RENOVATIONS Bryant Park

Summary of Contents for Thomasville RENOVATIONS Bryant Park

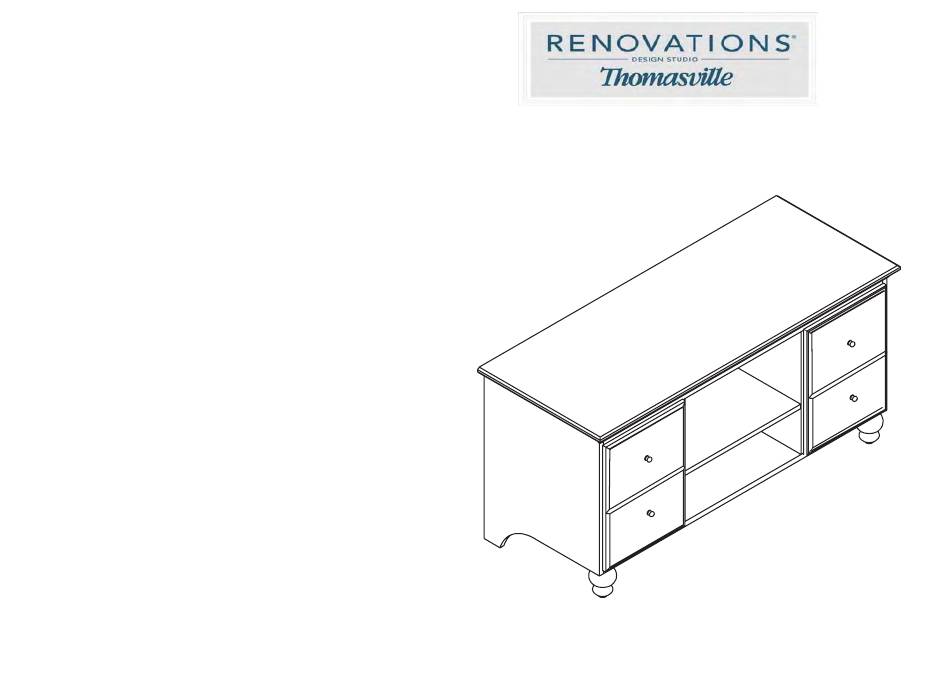

  • Page 1 Bryant Park (3182 C04) tv stand style# 3182-157-1 C04 >> assembly instructions...

  • Page 2: Before You Begin

    Good luck though we re confident you won t need it Before you begin Check for damaged or missing parts Call 1-800-782-3876 or e mail CISupport Thomasville com between 8:00 - 9:00 pm Monday Friday and...
  • Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-19 QUESTIONS Just call 1-800-782-3876 for parts and service. For faster service, have the style number and DPCI number ready when calling.
  • Page 4 hardware (H5) x 30 (H2) x 26 (H4) x 18 (H1) x 26 8*30 wooden dowel 5/8" pan-head screw cam bolt 80159658 80184264 80159660 80159661 (H11) x 12 (H13) x 2 (H8 ) x 16 ) x 4 1" flat-head screw 9/16"...
  • Page 5 ITEM DESCRIPTION PART NUMBER QUANTITY 80183884 top panel 80183886 side panel RH 80183888 side panel LH 80183889 bottom panel 80183890 front rail 80183892 back rail middle panel RH 80183894 middle panel LH 80183895 foot with tack glide & insert 80183896 middle leg support 80183897 80183898...

  • Page 6: How To Use The Cam Lock System

    how to use the cam lock system Important Note: +/- on the cam should be positioned as shown. Do not overtighten the cam bolt...
  • Page 7 step 1. Make sure the wood dowel protrusion is no more than 12mm, that's 1/2" H4 x 4 8*30 wooden dowel cam bolt no more than 1/2"...
  • Page 8 step 2. The holes for locking feet are at front side (H1)
  • Page 9 step 3. Make sure the wood dowel protrusion mm, that's 1/2" is no more than no more than 1/2" (H13) x 2 (H4) x 2 8*30 wooden dowel 1” flat-head screw...
  • Page 10 step 4. With a helper... Make sure the wood dowel protrusion mm, that's 1/2" is no more than (H1) (H4) x 8 8*30 wooden dowel no more than 1/2"...
  • Page 11 step 5. Make sure the wood dowel protrusion is no more than mm, that's 1/2" H2 x 10 H4 x 4 cam bolt 8*30 wooden dowel no more than 1/2"...
  • Page 12 step 6. With a helper... x 10...
  • Page 13 step 7. Do not overtighten. )x 1 allen wrench Bolt...
  • Page 14 step 8. With a helper... H2 x 8 cam bolt...
  • Page 15 step 9 With a helper... (H5) x 30 5/8” pan-head screw...
  • Page 16 step 10. (H15) x 4 (H17) x 4 (H9) x 4 (H11) x 16 9/16" pan-head screw 1" pan-head machine screw hinge knob...
  • Page 17 step 11. H13 x 12 shelf pin...

  • Page 18: Hinge Adjustment

    step 12 HINGE ADJUSTMENT If the doors do not appear square or aligned, loosen or tighten the appropriate screws on each case hinge as illustrated. 2) Depth adjustment: 3) Height adjustment: 1) Side to side adjustment: Loosen screw A, push hinge arm Loosen screw C, adjust Loosen screw A, adjust gap forwards or backwards, re-tighten...
