- Page 1 R5110 Non-Contact Voltage Detector Instruction Manual 1.800.544.2843 www.calcert.com sales@calcert.com...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Product Quality ................... 3 Safety ......................3 Features ...................... 4 Included ...................... 4 Specifications ..................... 4 Instrument Description ................5 Operating Instructions ................5-6 Turning the Detector ON/OFF ............... 5 Turning the Flashlight ON/OFF .............. 5 AC Voltage Detection ................ -
Page 3: Introduction
Introduction Thank you for purchasing your REED R5110 Non-Contact Voltage Detector. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your detector will provide years of reliable service. Product Quality This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. -
Page 4: Features
Features • Suitable for receptacles or against insulated wire • Double insulated housing for increased safety • Audible (buzzer) and visual (LED) indicators • Built-in flashlight • Pocket clip • Auto shut off • Cat. IV 1000V safety rating Included •... -
Page 5: Instrument Description

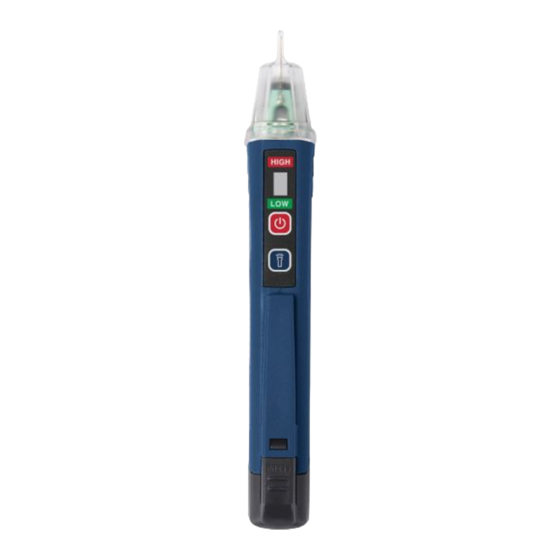

Instrument Description 1. Flashlight 4. Power Button 2. NCV Sensor Head 5. Flashlight Button 3. Mode Status Indicator Light 6. Pocket Clip Operating Instructions Turning the Detector ON/OFF Press the power button to turn the detector on. The buzzer will beep twice and the red indicator light will illuminate indicating that the detector is on and ready for use. -
Page 6: High/Low Voltage Detection Modes
High/Low Voltage Detection Modes When the detector is powered on the red indicator light on the panel will light up indicating the default voltage detection range is set to High (90 to 1000VAC). Press the power button once and the red indicator light will switch to green indicating the detector is now in Low Voltage Mode (24 to 1000VAC). -
Page 7: Product Care
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. -
Page 8: Product Disposal And Recycling
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@REEDInstruments.com. Please visit www.REEDInstruments.com for the most up-to-date manuals, datasheets, product guides and software. - Page 9 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! 1.800.544.2843 www.calcert.com sales@calcert.com...
