- Page 1 R9200 Microwave Leakage Detector Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 2 Product Disposal and Recycling ..............7 Product Support ..................7 Introduction Thank you for purchasing your REED R9200 Microwave Leakage Detector. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service.
- Page 3 • Audible (beep) and visual (flashing LED) alarms at 5 mW/cm • 4-digit, backlit LCD display • Max hold function and low battery indicator • Zero button for quick adjustment Included • Soft Carrying Case • Battery Specifications Measuring Range: 0 to 9.99 mW/cm Accuracy: ±1mW/cm Resolution: 0.01mW/cm Operating Frequency: 2.4GHz Display: 4-digit LCD Backlit Display: Alarm: Audible (buzzer) and Visual (LED Light) Alarm Limit: 5mW/cm Max Hold: Zero Button: continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...

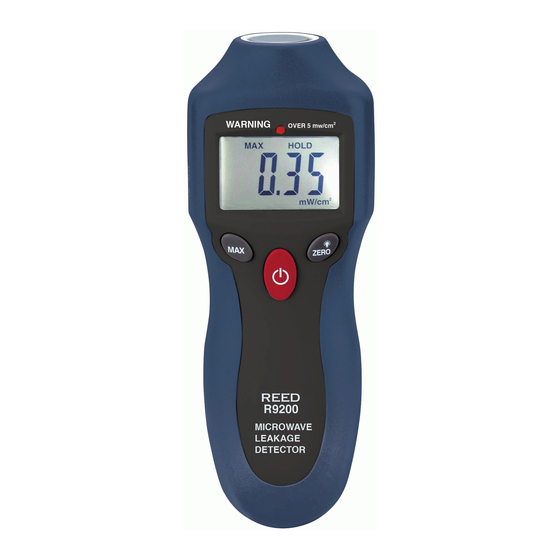

- Page 4 Power Supply: 9V Battery Low Battery Indicator: Product Certifications: Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: 10 to 90% Dimensions: 6.3 x 2.4 x 1.7" (160 x 60 x 42mm) Weight: 5.3oz (151g) Instrument Description 1. Sensor 4. Max Button 5. Power Button 2. Warning/Over Indicator 3. LCD Display 6. Backlight/Zero Button REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 5 Be sure to be up to date in regards to the current standards and regulations for the appropriate country before using this device. REED Instruments will not be held responsible for any damage to the equipment or personal injury in regards to the use of this meter or in the correct interpretation of the appropriate safety standards.
- Page 6 REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance.
- Page 7 Your product contains electronic components and must be disposed of separately from standard waste products. Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software.
- Page 8 TesT & MeasuRe wITh ConfIDenCe CheCk ouT ouR LaTesT PRoDuCTs! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
