Summary of Contents for Zetronix NANO-4K

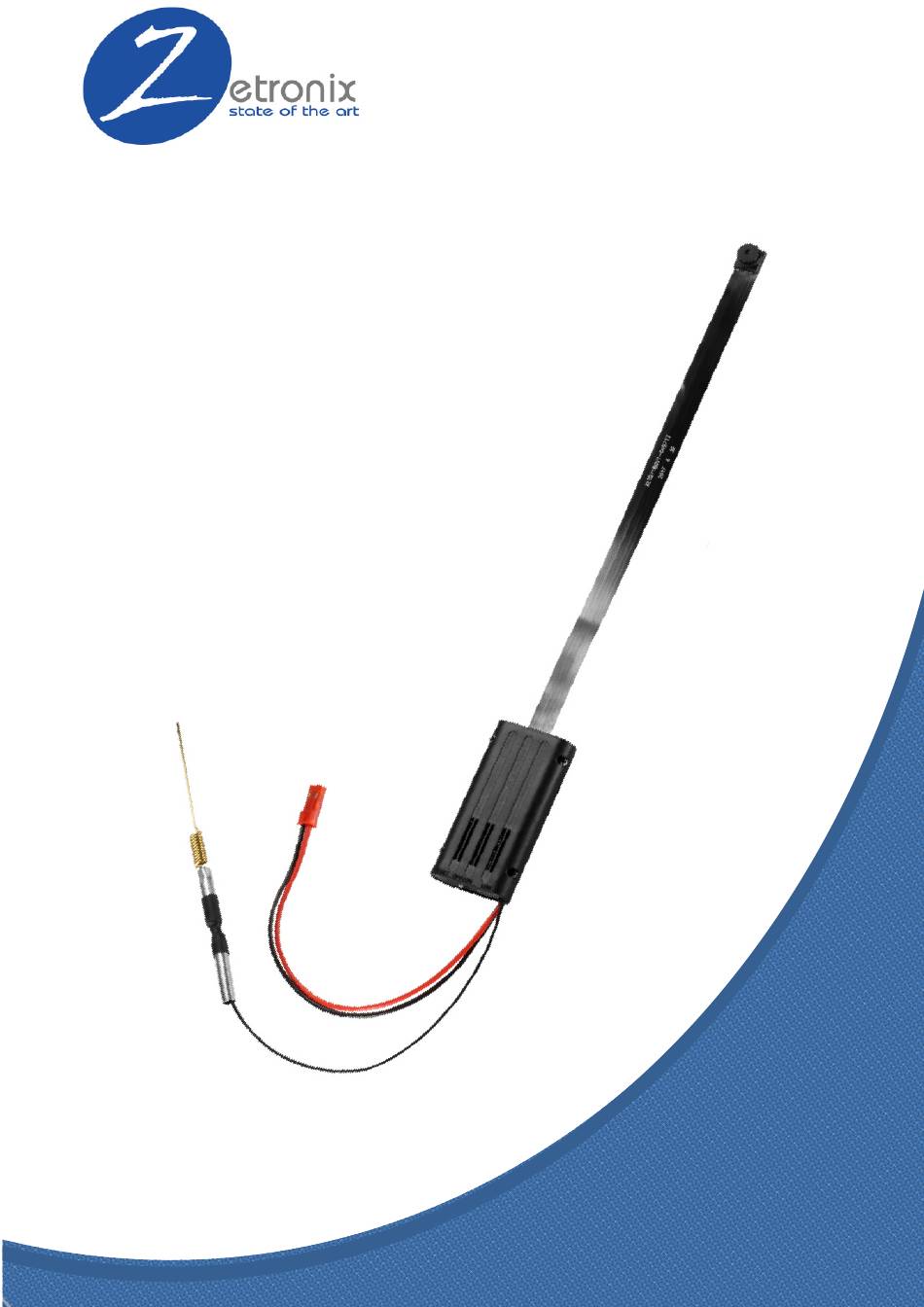

- Page 1 NANO-4K USER MANUAL...
- Page 3 CONTENTS In the Box Page 1 __________________________________________ Diagram Page 2 __________________________________________ App Setup Page 3 __________________________________________ Remote Live Video Feed Page 7 __________________________________________ Advanced Settings Page 11 __________________________________________ Troubleshooting Page 14 __________________________________________ Help Page 15 __________________________________________ Warranty Page 16 __________________________________________...

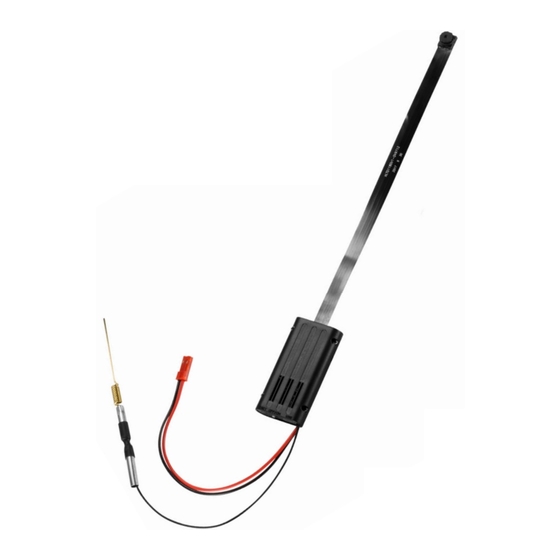

- Page 4 IN THE BOX A NANO 4K camera unit B Li-ion battery C USB cable D 8x shirt buttons E This manual PAGE | 1...
- Page 5 DIAGRAM PAGE | 2...
- Page 6 SETTING UP THE APP 1. Download the app - HDWiFiCamPro Search and download HDWiFiCamPro on the App Store or Google Play..can also scan the QR code below via QR scanning app. HDWiFiCam Pro 2. Setup the NANO Insert a micro SD card in the card slot 8 if you're planing on recording media directly on the NANO.
- Page 7 3. Setup the WIFI Connect your phone to this camera's WiFi access from your phone's WiFi settings, search and connect to the WiFi signal starting with "DGK". Some Android phones will notice that your camera's wifi cannot access the internet. Please ignore this notice and continue to connect to the camera's wifi.
- Page 8 4. Connect to camera Open the HDWiFiCam Pro app, click on Add New Camera, Add online camera, click Search, then select the first camera to add it. Hit Sure to save, the camera will list back on the main menu. PAGE | 5...
- Page 9 5. Setup remote access Click on the Setting icon, select Wi-Fi, then select your router’s WiFi name, enter your WiFi password, Click Join, and then wait about a minute for it to connect. Locate your router’s WiFi name and input the password, then click "Join".
- Page 10 REMOTE LIVE FEED Click on the video to view the live feed. Click here to switch Mode 1 and Mode 2. Mode 1 Mode 2 PAGE | 7...
- Page 11 1. Vertical Flip: click to flip the camera’s view vertically 2. Horizontal Flip: click to flip the camera’s view horizontally 3. Indicator Light: click to turn LED lights on/off 4. Night Vision: turn on /off Night Vision (on supported models only) 5.
- Page 12 Night Vision Mode (on supported models only) Captures sharp images even with limited or no light. Night Vision Off Night Vision On Snapshots shown here. Photos will be Tap to take photos PAGE | 9...
- Page 13 Video Recording Tap to record video. videos will be shown here. You can access the recorded media for playback either from the live view, or from the main menu. PAGE | 10...
- Page 14 ADVANCED SETTINGS To manage each device’s settings, click the settings icon in the bottom right corner. Here, you can modify, delete or share the device and also manage each camera’s individual settings. In Device Settings you can configure the device password, alarm notifications, motion detection settings, SD card recording settings and much more.
- Page 15 User To protect your privacy, it is highly recommended that you change the camera's password. The default password is 6666. Time Adjust your time zone and preferred time display format. Or simply click "Sync phone time". Alarm These settings allow you to manage your push notifications and activity alerts from your camera.
- Page 16 Record Manage your micro SD card recording settings, record mode, and set a length of time you want the camera to record. Record time: The minimum time in minutes it will record after motion activation. Video stream: Video resolution to be recorded onto the Micro SD card, 720P or 1080P.
- Page 17 TROUBLESHOOTING Most issues can be resolved by resetting the camera device; press and hold the reset button 6 for 15 seconds while the NANO power switch 7 is set to on. Also formatting the memory card can clear up any memory curruption.
- Page 18 SD card cannot save files. Before you insert the SD card, turn off the camera, and you can also try formatting the SD card. Ensure that the memory card isnt full. Please move some files into your computer. The passwords was forgotten ...
- Page 19 1 Y e a r L i mi t e d Wa r r a n t y Z e t r o n i x C o r p o r a t i o n ( “ Z e t r o n i x ” ) w a r r a n t s t h i s p r o d u c t a g a i n s t d e f e c t s i n ma t e r i a l o r w o r k ma n s h i p a s f o l l o w s : P R O D U C T : Z e t r o n i x w i l l r e p a i r t h i s p r o d u c t w i t h n e w o r r e f u r b i s h e d p a r t s , f r e e o f c h a r g e , f o r a p e r i o d o f o n e ( 1 ) y e a r f r o m t h e d a t e o f o r i g i n a l p u r c h a s e i n t h e e v e n t o f a d e f e c t i n ma t e r i a l s o r w o r k ma n s h i p .
- Page 20 ©2020 Zetronix Corp.
