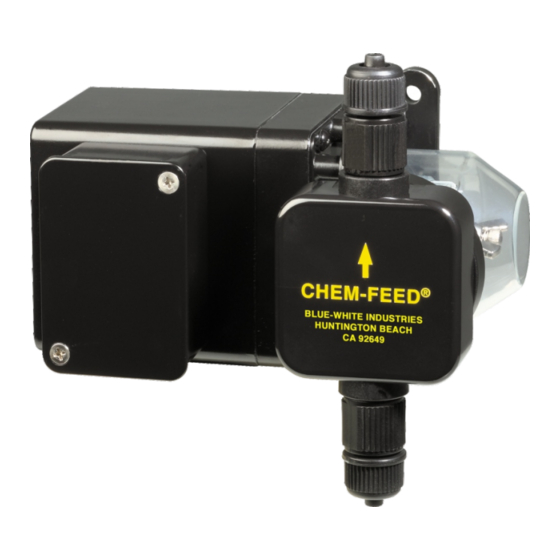

- Page 1 Blue-White ® Industries, Ltd. DIAPHRAGM INJECTOR MODEL C-600P & C-600HV 5300 Business Drive Huntington Beach, CA 92649 Phone: 714-893-8529 FAX: 714-894-9492 E-mails: sales@blue-white.com or techsupport@blue-white.com www.blue-white.com...
-
Page 2: Table Of Contents
6.0 How to maintain the metering pump........11 6.1....Routine inspection and cleaning.........11 6.2....How to clean the metering pump........11 7.0 C-600HV Parts List..............12 7.1....Exploded View (C-600HV)..........13 8.0 C-600P Parts List...............14 8.1....Exploded View (C-600P)..........15 9.0 Warranty..................16 1.0 Introduction Congratulations on purchasing the C-600 positive displacement metering pump. -
Page 3: 2.0 Specifications
27:1 adjustment turn down ratio. Easy servicing. Includes suction tube foot valve & strainer, suction tube weight, suction tubing, discharge tubing and injection fitting with internal back-flow check valve and mounting hardware. Most C-600P Models. C-600HV has max pressure rating of 20 PSIG... -
Page 4: Pump Dimensions
Page 4 C-600 Pump Dimensions C-600P 6.75” 5.0625” 171.5mm 134.9mm 6.25” 158.8mm C-600HV 6.75” 171.45mm 6.125” 155.5mm 7” 177.8mm... -
Page 5: How To Install The Metering Pump
Page 5 C-600 How To Install the Metering Pump CAUTION: PROPER EYE AND SKIN PROTECTION MUST BE WORN WHEN INSTALLING AND SERVICING THE PUMP. CAUTION - TO PREVENT CHEMICAL OVERDOSING WHEN USED AS A POOL OR SPA CHLORINATOR, POWER MUST BE REMOVED FROM THIS PUMP DURING THE BACKWASH CYCLE AND DURING PERIODS OF NO FLOW IN THE RECIRCULATION SYSTEM. -
Page 6: Installation
Page 6 C-600 4.2 Typical Installation WALL MOUNTING Stud WEATHER RESISTANT Stud Mount Masonry Pumping unit Discharge Tube Chemical Container Suction Tube (vertical) -
Page 7: Electrical Connections
Page 7 C-600 Electrical Connections Be certain to connect the pump to the proper supply voltage. Using the incorrect voltage will damage the pump and may result in injury. The voltage requirement is printed on the pump serial label. POWER: 115V60Hz (0.74A max.), 220V50Hz (0.31A max.), 230V60Hz (0.36A max.), 24VAC/60Hz (3.4A max.), 12VDC (3A max.), 24VDC (1.5A max.) Note: When in doubt regarding your electrical installation, contact a licensed electrician. -
Page 8: Tubing And Fittings Installation
Page 8 C-600 Cycle Adjustment Potentiometer 120VAC Common 220/230 VAC Earth Ground (green) LOAD Timer Power Board Cord Neutral MOTOR FIG. 4.6 WIRING DIAGRAM - FIXED TIMERS How To Install the Tubing and Fittings CAUTION: PROPER EYE AND SKIN PROTECTION MUST BE WORN WHEN INSTALLING AND SERVICING THE PUMP Inlet Tubing - Locate the inlet fitting of the pump head. -
Page 9: Injection/Check Valve Fitting Installation
Footvalve Body Inlet Adapter Footvalve Strainer Tube Nut FootValve Assembly Suction Tubing Must be installed in (clear PVC) a vertical position. FIG. 4.8 C-600P FootValve C-600HV FootValve Assy. PumpHead C-600P PumpHead Suction Tubing Injection/Check Valve Fitting Installation - The Injection/Check valve fitting is designed to install directly into either 1/4”... -
Page 10: How To Operate The Metering Pump
Page 10 C-600 How To Operate The Pump Adjusting the Pump Output The flow rate can be adjusted within a range of approximately 10%-100% of maximum output (27:1 turndown ratio) by means of a mechanical, cam type mechanism. The mechanism adjusts the pump’s stroke length to 1 of 27 settings within the flow range. -
Page 11: Measuring The Pump's Output - Volumetric Test
Page 11 C-600 Measuring the Pump’s Output - Volumetric Test. This volumetric test will take into account individual installation factors such as line pressure, fluid viscosity, suction lift, etc. This test is the most accurate for measuring the injector’s output in an individual installation. 1. -
Page 12: C-600Hv Parts List
Page 12 C-600 C-600HV Parts List Catalog No. Description Amount Reqd. C-3391-10 Injection Fitting C-3330 Clamp C-334-10 Tubing 5/8” O.D. , 5FT C-428-10 Top Adaptor, 5/8” Tube 90003-033 O-ring (EP) (Aflas) C-354-2 Spring C-926E Check Valve (Hypalon) C-926V Check Valve (Aflas) C-3203 Headblock (Clear) (Polyethylene) C-3504... -
Page 13: Exploded View (C-600Hv)
Page 13 C-600 C-600HV Exploded View... -
Page 14: C-600P Parts List
Page 14 C-600 C-600P Parts List Catalog No. Description Amount Reqd. 1. C-395N-6A Injection valve 6 PSI, Aflas C-395N-6E Injection valve 6 PSI, EP (optional) 2. C-335-6 Discharge Tubing 3/8 OD, 5ft. Opaque Poly-E 3. C-330-6 Tube Nut 4. K-568A-4... -
Page 15: Exploded View (C-600P)
Page 15 C-600 C-600P Exploded View Optional T.I. Anti siphon valve Threaded Anti siphon fitting valve, ¼ & ½” N.P.T. -
Page 16: Warranty
Blue-White Industries will not be liable for any damage that may result by the use of chemicals with their injectors and it’s components.
