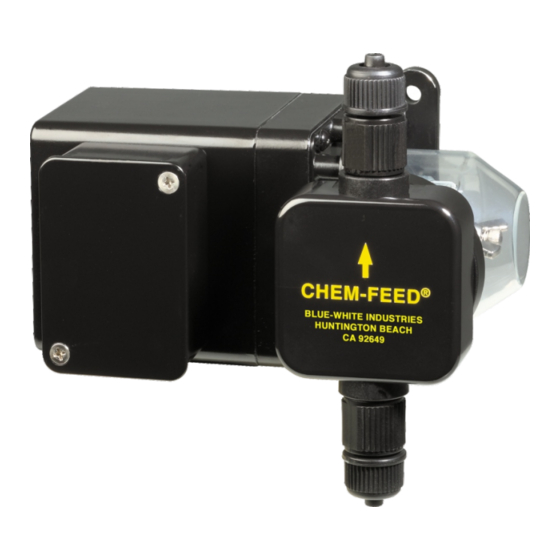

- Page 1 Distributed by: M&M Control Service, Inc. www.mmcontrol.com/Blue_White.php 800-876-0036 847-356-0566 Blue-White ® Industries, Ltd. Industries, Ltd. DIAPHRAGM INJECTOR MODEL C-600P & C-600HV...
- Page 2 10 ft. water Power Requirements 115V60Hz 45 Watts 220V50Hz 45 Watts 230V60Hz 45 Watts 24V60Hz 45 Watts Dimensions 6-1/2” H x 6-1/2” W x 5-3/4” D (C-600P) 7”H x 6-3/4” W x 6-1/8” D (C-600HV) Weight 8 lb. *Depending on Model number...
- Page 3 Most C-600P Models. C-600HV has max pressure rating of 20 PSIG How To Install the Metering Pump CAUTION: PROPER EYE AND SKIN PROTECTION MUST BE WORN WHEN INSTALLING AND SERVICING THE PUMP CAUTION - This pump has been evaluated for use with water only.
- Page 4 Distributed by: M&M Control Service, Inc. www.mmcontrol.com/Blue_White.php 800-876-0036 847-356-0566 C-600 Page 4 C-600P 6-3/4” 5-5/16” 171.5mm 134.9mm 6-1/4” 158.8mm C-600HV 6.75” 6.125” 7” FIG. 4.1 DIMENSIONAL DRAWING...
-
Page 5: Typical Installation
Distributed by: M&M Control Service, Inc. www.mmcontrol.com/Blue_White.php 800-876-0036 847-356-0566 C-600 Page 5 Pumping unit Discharge Tube Chemical WEATHER Container Suction Tube RESISTANT (vertical) TYPICAL INSTALLATION Stud Stud Mount Masonry WALL MOUNTING... - Page 6 Distributed by: M&M Control Service, Inc. www.mmcontrol.com/Blue_White.php 800-876-0036 847-356-0566 Page 7 C-600 Electrical Connections Be certain to connect the pump to the proper supply voltage. Using the incorrect voltage will damage the pump and may result in injury. The voltage requirement is printed on the pump serial label. Note: When in doubt regarding your electrical installation, contact a licensed electrician.
- Page 7 Distributed by: M&M Control Service, Inc. www.mmcontrol.com/Blue_White.php 800-876-0036 847-356-0566 Page 8 C-600 Cycle Adjustment Potentiometer 120VAC Common 220/230 VAC Earth Ground (green) LOAD Timer Power Board Cord Neutral MOTOR FIG. 4.6 WIRING DIAGRAM - FIXED TIMERS How To Install the Tubing and Fittings CAUTION: PROPER EYE AND SKIN PROTECTION MUST BE WORN WHEN INSTALLING AND SERVICING THE PUMP Inlet Tubing - Locate the inlet fitting of the pump head.
- Page 8 O-Ring Footvalve Body Inlet Adapter Footvalve Strainer Tube Nut FootValve Assembly Suction Tubing Must be installed in (clear PVC) a vertical position. FIG. 4.8 C-600P FootValve C-600HV FootValve Assy. PumpHead C-600P PumpHead Suction Tubing 4.3.4 Injection/Check Valve Fitting Installation - The Injection/Check valve fitting is designed to install directly into either 1/4”...
- Page 9 Distributed by: M&M Control Service, Inc. www.mmcontrol.com/Blue_White.php 800-876-0036 847-356-0566 Page 10 C-600 How To Operate The Pump 5.1 Adjusting the Pump Output- The flow rate can be adjusted within a range of approximately 10%-100% of maximum output (27:1 turndown ratio) by means of a mechanical, cam type mechanism.
- Page 10 Distributed by: M&M Control Service, Inc. www.mmcontrol.com/Blue_White.php 800-876-0036 847-356-0566 Page 10 C-600 5.3 Measuring the Pump’s Output - Volumetric Test. This volumetric test will take into account individual installation factors such as line pressure, fluid viscosity, suction lift, etc. This test is the most accurate for measuring the injector’s output in an individual installation.
- Page 11 Distributed by: M&M Control Service, Inc. www.mmcontrol.com/Blue_White.php 800-876-0036 847-356-0566 Page 11 C-600 E x p l o d e d V i e w C - 6 0 0 H V...
- Page 12 Distributed by: M&M Control Service, Inc. www.mmcontrol.com/Blue_White.php 800-876-0036 847-356-0566 Page 12 C - 6 0 0 H V P a r t s L i s t Catalog No. Description Amount Reqd. C-3391-10 Injection Fitting C-3330 Clamp C-334-10 Tubing 5/8” O.D. , 5FT 4.C-428-10 Top Adaptor, 5/8”...
- Page 13 Distributed by: M&M Control Service, Inc. www.mmcontrol.com/Blue_White.php 800-876-0036 847-356-0566 Page 13 E x p l o d e d V i e w C-600P Optional T.I. Anti siphon valve Threaded Anti siphon fitting valve, ¼ & ½” N.P.T.
- Page 14 Distributed by: M&M Control Service, Inc. www.mmcontrol.com/Blue_White.php 800-876-0036 847-356-0566 Page 14 C- 600P Parts List Catalog No. Description Amount Reqd. 1. C-395-6V Injection valve 6 PSI, Viton C-395-6E Injection valve 6 PSI, EP (optional) 2. C-335-6 Discharge Tubing 3/8 OD, 5ft. Opaque Poly-E 3.
- Page 15 Distributed by: M&M Control Service, Inc. www.mmcontrol.com/Blue_White.php 800-876-0036 847-356-0566 Users of electrical and electronic equipment (EEE) with the WEEE marking per Annex IV of the WEEE Directive must not dispose of end of life EEE as unsorted municipal waste, but use the collection framework available to them for the return, recycle, recovery of WEEE and minimize any potential effects of EEE on the environment and human health due to the presence of hazardous substances.
