Blue-White industries F-452N Installation Instructions

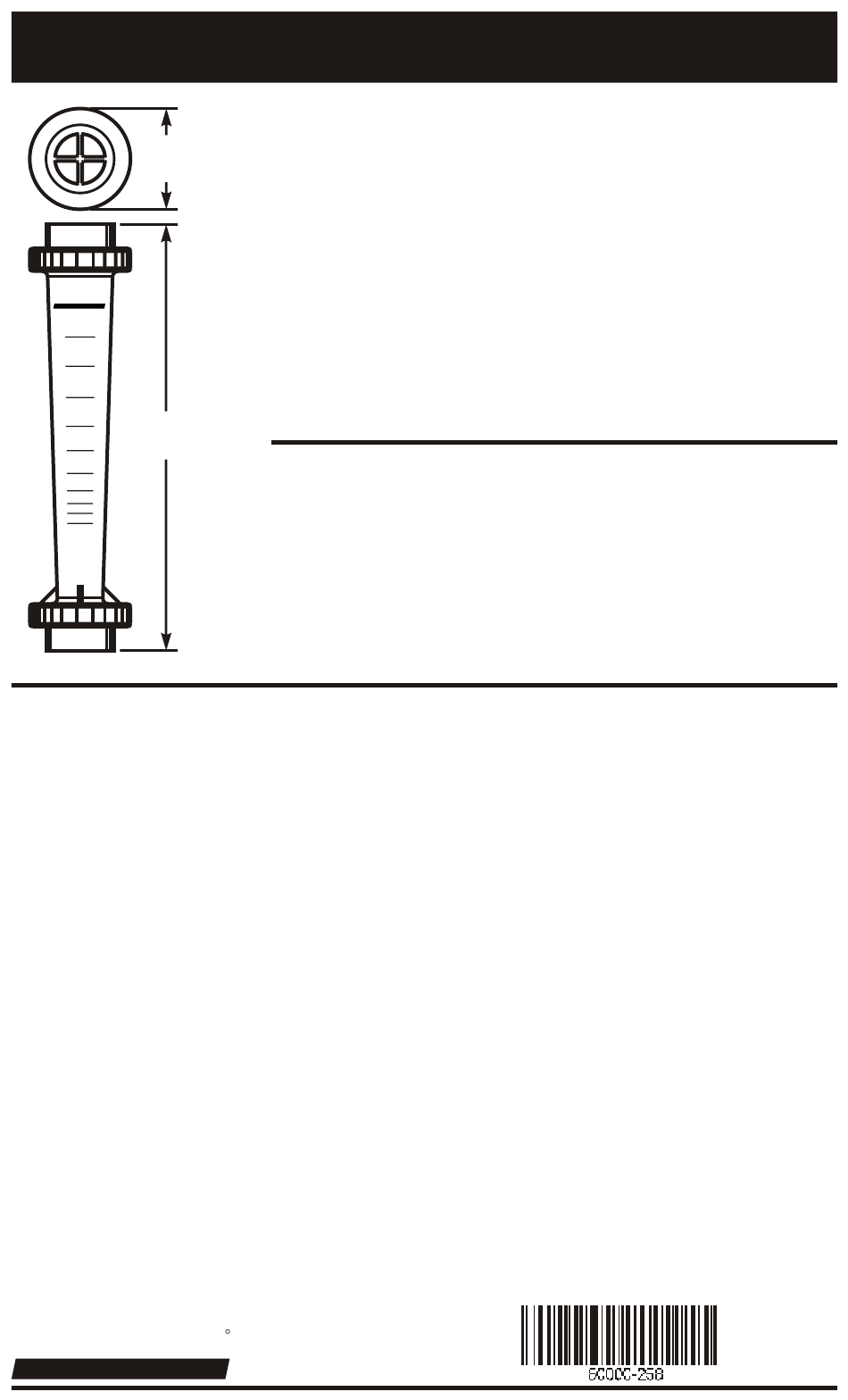

4-5/8 in.
(117.5 mm)
Blue-White
®
Industries, Ltd. Industries, Ltd.
18-7/8 in.
(479.4 mm)
Inspection of the Flowmeter and Compatibility
! Check for damage while unpacking the flowmeter.
! Remove any instruction sheets and shipping materials that may have been
inserted into the meter body for shipping reasons.
! Remove the box containing the float. Note the up position of the float before
removing the float from the meter body (tube). The float must be installed in
the same direction when re-assembling the flowmeter.
! Remove the pipe fitting adapters with o-rings and the union nuts. Note the
proper location of the o-ring in the groove. Be sure the o-ring is properly
seated during installation.
! Be sure the meter and the materials of construction are suitable for your
application.
! The maximum temperature and pressure is shown on the following pages.
! Although the meter may be suitable for use with other fluids, Blue-White
meters are tested with water and air only. If you are not sure that the meter
is compatible with your fluid, consult the factory.
! The meter can be damaged by UV light. Do not install the meter in direct
sunlight.
! Blue-White guarantees the meter is suitable with air and water only.
Blue-White
Industries, Ltd.
Installation Instructions
Meter Body:
Float:
Guide rod:
Adapters:
Wireholder
Float Stop:
Union Nuts:
O-Rings:
Scale:
Accuracy:
Your Blue-White F-452N Series
! Your Blue-White flowmeter was designed to be easy to
install.
! Please read the Instruction Guideline on the next page
before installing your flowmeter.
! This flowmeter is an instrument, special care should be
taken when handling and installing.
®
R
F-452N

Materials of Construction

Polysulfone
#316 Stainless Steel or Teflon or
Hastelloy C-276 (Based on model)
# 316 Stainless (opt. Hastelloy C-276)
Polysulfone
: Polysulfone
Polyethylene
Nylon
Viton
Permanent, dual scale silkscreen (black ink)
± 2% of full scale reading
®
®
®
07/26/2004
