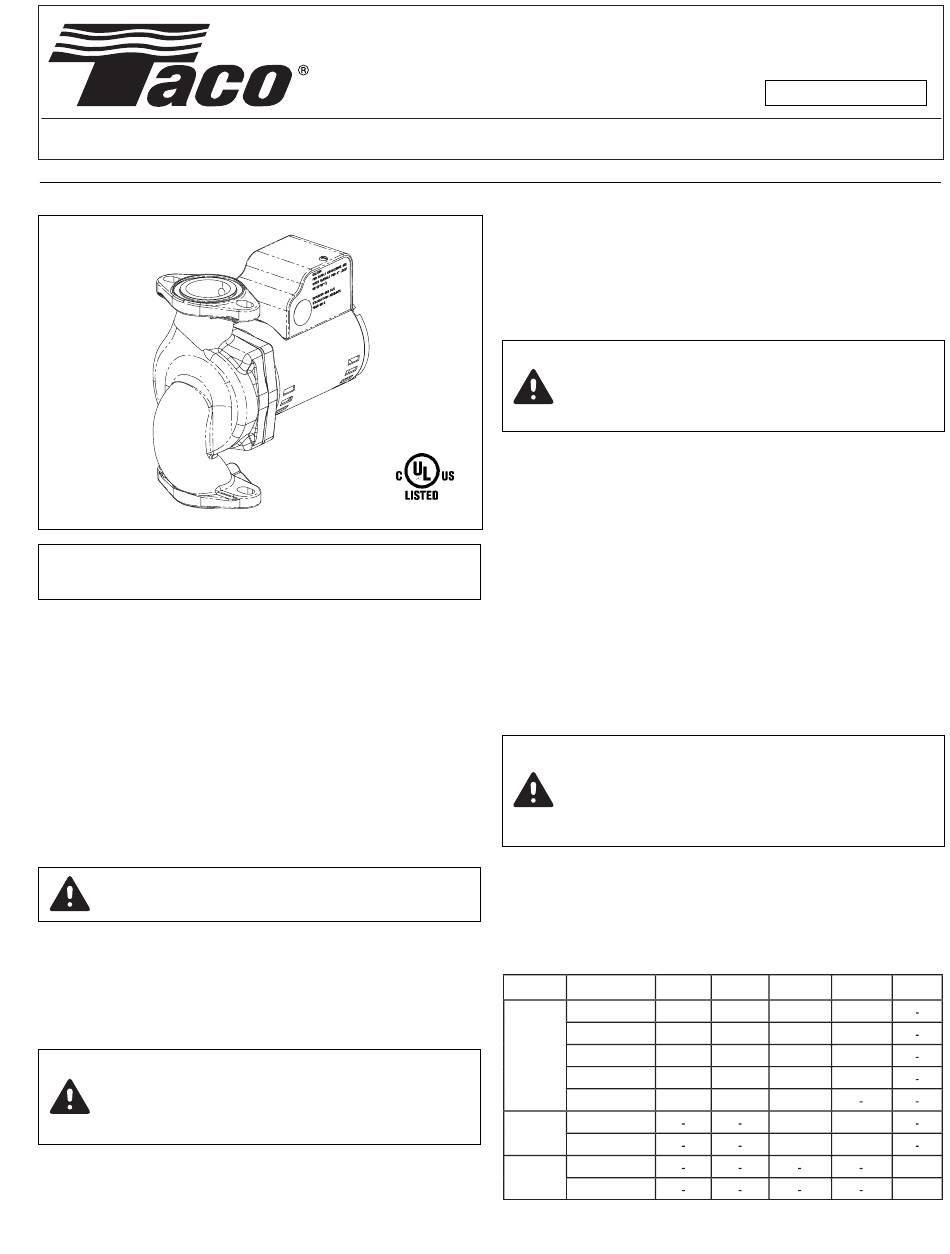

Taco 1400 Series Instruction Sheet

SUPERSEDES: June 1, 2003
Plant ID# 001-1183
INSTALLER: Please leave these instructions for
owner's use.

APPLICATION:

The Taco 1400 Series Hi-Capacity circulators are designed
for use on a wide range of hydronic heating, cooling or
domestic water re-circulating systems. Features include a
quiet running, close-coupled, thermally protected motor
assembly with permanent split-capacitor and permanently
lubricated bearings. A stainless steel face plate and
mechanical seal with a non-ferrous impeller make the 1400
series an ideal choice for years of maintenance-free oper-
ation on open or closed systems.
Note: Always use Bronze body circulators on open,
fresh water systems.
CAUTION: Taco "1400 Series" circulators are
designed for indoor use only.

OPERATING SPECIFICATIONS:

• Maximum Working Pressure: 150 psi (1000 kPa)
• Maximum Operating Temperature: 225ºF (107ºC)
• Electrical Rating: 115V/60Hz/1Ph or 230V/60Hz/1Ph
CAUTION: Taco circulators are designed to
operate with water and most glycol solutions.
The addition of certain chemical additives
may cause early failure and void warranty.
Instruction Sheet
1400 Series Hi-Capacity Circulator

REMOVAL OF EXISTING PUMP FROM SYSTEM PIPING:

1. Disconnect and lock-out electrical supply to pump.
2. Close isolation valves on suction and discharge sides
of pump. If valves are not installed, the system may
need to be drained.
CAUTION: To prevent injury, allow system
water to cool to 100ºF before removing old
pump or draining system. Leave drain valve
open until service/replacement is complete.
3. Remove capacitor box cover and disconnect electrical
supply lines to pump.
4. Loosen flange bolts and shift pump body slightly to
relieve any remaining system pressure.
5. Remove flange nuts/bolts and pump from system.
INSTALLATION OF "1400 SERIES" CIRCULATOR:
A. Location:
• Install pump with sufficient room for future inspection,
maintenance and service.
• It is recommended that isolation valves be installed on
the pump suction and discharge to simplify future ser-
vice or replacement without draining the system.
CAUTION: This pump has a mechanical seal
which, by design, will eventually wear and
leak. Allow access for periodic inspection
and leak detection.
drainage to prevent property damage.
1. Using teflon tape or high quality thread sealant, install
Taco companion flanges on threaded pipe ends to
ensure proper fit-up and leak protection.
1400 SERIES COMPANION FLANGE SETS
3
Models Connection ⁄
1400-10/10B Iron NPT 110-251F
1400-20/20B Bronze NPT 110-251BF
1400-50/50B Bronze Sweat 110-523BSF
Shut-Off NPT 243-1
Shut-Off Sweat 243-2
1400-30/30B Iron NPT
1400-40/40B Bronze NPT
1400-60/60B Iron NPT
1400-70/70B Bronze NPT
102-147
EFFECTIVE: August 15, 2005
Provide adequate
1 1 1 1 1
" ⁄ " ⁄
"
4
4
110-252F 110-253F 110-254F
110-252BF 110-253BF 110-254BF
110-524BSF 110-525BSF 110-526BSF
244-1 245-1 246-1
244-2 245-2
194-1540F 194-1542F
194-1540BF 194-1542BF
2"
"
2
185-086C
185-086B
