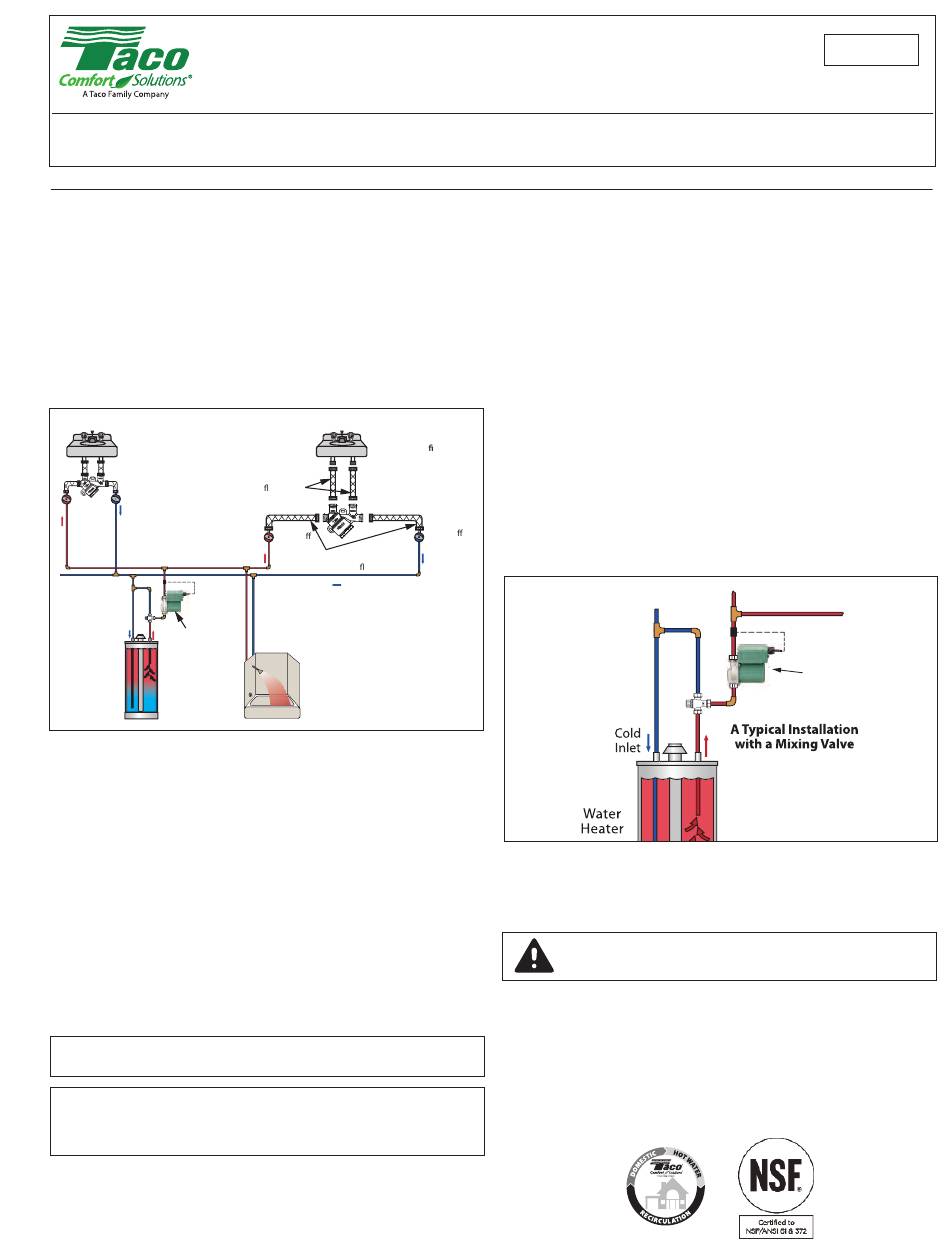

Taco Hot-LinkPlus Instruction Sheet

Hot-LinkPlus
SUPERSEDES: NEW
Plant ID# 001-5006
Application:
The Taco Hot-LinkPlus System for Domestic Hot Water
recirculation ensures instant hot water comfort at showers
and faucets. By supplying fresh hot water to the fixtures
while returning the "cooled" hot water back to the water
heater through the cold line, it also saves thousands of gal-
lons of wasted water per year. The average family can
achieve yearly savings of up to 12,000 gallons of water nor-
mally wasted down the drain while waiting for hot water.
Hot Cold
Additional Hot-Link
Valve locations
(2) new 1/2" x 1/2"
Taco® supplied ex lines
(female to female)
HOT WATER LINE
CITY WATER Sensor
SUPPLY
Cold
Inlet
SmartPlus
Circulator
A typical
Water
installation
Heater
with a
Mixing Valve
High Quality Features:
The Hot-LinkPlus System includes a Taco SmartPlus cir-
culator designed specifically for use with the Taco Hot-Link
Valve. The circulator and valve are suitable for most resi-
dential homes with hot water supply lines up to 100 feet.
The unique Hot-Link Valve is the key to the system. Made
of durable high temperature polymer, it creates an easy-to-
install return loop through the cold line from the furthest fix-
ture back to the water heater. An integral thermal sensor
disc closes when hot water reaches the valve. An internal
flow check prevents cold water from backing into the hot
line. Stainless steel braided flex hoses complete the instal-
lation.
Installing the Hot-LinkPlus System Circulator:
WARNING: To avoid electrical shock, disconnect the power
supply to the circulator and the main electrical unit.
WARNING: 1. Circulator must be installed on and supported by
the circulation piping.
2. The addition of unions on both the suction and
discharge side of the circulator is recommended.
Instruction Sheet
System for Domestic Hot Water Recirculation
®
Hot Cold
The best location
is furthest xture
from hot water heater
Hot-Link Valve includes (2)
plastic wall anchors
and screws
1/2"
1/2"
Shut-O
Shut-O
Valve
Valve
Use (2) existing 3/8" x 1/2"
female to female ex lines
COLD WATER LINE
DIAGRAM IS FOR
REFERENCE ONLY
1. Follow all local plumbing and electrical codes when
installing the Hot-LinkPlus System.
2. Shut off cold water supply valve to water heater.
3. Open a hot water faucet in the house to drain the hot
water line.
4. Open water heater drain valve located at the bottom of
tank to drain remaining hot water from the lines. It is not
necessary to drain the entire tank.
5. Disconnect hot water supply line at water heater outlet
nipple.
6. Install the 3/4" female tailpiece union adapter provided
to the water heater outlet. Apply pipe dope or Teflon
tape to all male threads as required.
7. Install the 3/4" male tailpiece union adapter to the pump
outlet connection. Apply pipe dope or Teflon tape to all
male threads. Be sure flow arrow located on the pump
casing is in the proper direction. See diagram.
Figure 1:
8. Install the stainless steel Hot-LinkPlus circulator by
connecting to the union nut/tailpiece attached to the
water heater outlet. Circulator motor must be in the hor-
izontal position.
CAUTION: Do not run circulator dry. Permanent damage
may result and will void warranty.
9. Reconnect the hot water supply line to the union tail-
piece attached to the circulator discharge.
10. Open supply valve to water heater. Let water run until all
air is purged from lines. Check for any leaks. If leaks are
detected, close supply valve and tighten all connections.
11. Shut off open hot water faucet.
102-552
EFFECTIVE: November 28, 2017
Sensor
SmartPlus
Circulator
DIAGRAM IS FOR
REFERENCE ONLY
