Taco 2400 Series Instruction Sheet

Taco 2400 Series Instruction Sheet

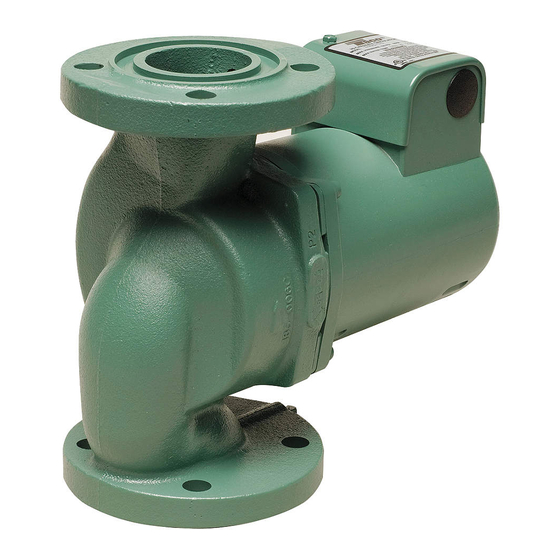

Hi-capacity circulator

Advertisement

Quick Links

SUPERSEDES: December 19, 2014
Plant ID# 001-3932
INSTALLER: Please leave these instructions for
owner's use.
APPLICATION:
The Taco 2400 Series Hi-Capacity circulators are designed
for use on a wide range of hydronic heating, cooling or
domestic hot water recirculating systems. Features include
a compact, quiet running, close-coupled, thermally protect-
ed motor assembly with permanent split-capacitor and per-
manently lubricated bearings. A stainless steel shaft, sili-
con-carbide mechanical seal and non-ferrous impeller
make the 2400 Series circulator an ideal choice for years of
maintenance-free operation.
Note: Use Stainless Steel body circulators on open
systems for the best corrosion protection.
CAUTION: Taco 2400 Series circulators are
designed for indoor use only.
OPERATING SPECIFICATIONS:
• Maximum Working Pressure: 150 psi (1034 kPa)
• Maximum Operating Temperature: 225ºF (107ºC)
• Electrical Rating: 115V/60Hz/1Ph or 230V/60Hz/1Ph
REMOVAL OF EXISTING PUMP FROM SYSTEM PIPING:
1. Disconnect and lock-out electrical supply to pump.
2. Close isolation valves on suction and discharge sides
of pump. If valves are not installed, the system may
need to be drained.
CAUTION: To prevent injury, allow system
water to cool to 100ºF before removing old
pump or draining system. Leave drain valve
open until service/replacement is complete.
Instruction Sheet
2400 Series Hi-Capacity Circulator
STAINLESS STEEL
MODELS ONLY
FOR INDOOR
USE ONLY
3. Remove capacitor box cover and disconnect electrical
supply lines to pump.
4. Loosen flange bolts and shift pump body slightly to
relieve any remaining system pressure.
5. Remove flange nuts/bolts and pump from system.
INSTALLATION OF 2400 SERIES CIRCULATOR:
WARNING: Do not use in swimming pool or spa
areas; pump has not been investigated for this
application.
WARNING: To avoid electrical shock, disconnect the
power supply to the circulator and the main electrical
unit.
CAUTION: When installing electrical connections,
do not apply mechanical loads to the capacitor
box; otherwise, retaining screws may be pulled out
of the housing, making circulator unusable.
CAUTION:
1. The addition of petroleum based fluids or cer-
tain chemical additives to systems utilizing TACO
equipment voids the warranty.
2. Use supply wires suitable for 90°C – ATTEN-
TION: Employer des fils d´alimentation adequats
pour 90°C.
CAUTION: Installations at higher elevations over
5000 feet must have higher fill pressure of 20 psi
minimum to prevent pump cavitation and flashing.
Premature failure may result. Adjust expansion
tank pressure to equal fill pressure. A larger size
expansion tank may be required.
A. Location:
• Install pump with sufficient room for future inspection,
maintenance and service.
• It is recommended that isolation valves be installed on
the pump suction and discharge to simplify future ser-
vice or replacement without draining the system.
CAUTION: This pump has a mechanical seal
which may require service. Allow access for
periodic inspection and leak detection.
Provide adequate drainage to prevent prop-
erty damage.
1. Using teflon tape or high quality thread sealant, install
Taco companion flanges on threaded pipe ends to
ensure proper fit-up and leak protection. (See Table 1
for companion flange set specifications.)
2. Minimize pipe strain on pump by using pipe hangers on
102-361
EFFECTIVE: March 2, 2015

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2400 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Taco 2400 Series

  • Page 1 5000 feet must have higher fill pressure of 20 psi make the 2400 Series circulator an ideal choice for years of minimum to prevent pump cavitation and flashing. Premature failure may result. Adjust expansion maintenance-free operation.
  • Page 2 Support provided by casing is sufficient for top of the motor housing, as shown in Fig. 1. structural integrity of pump • Standard pump body mounting position is with the flow Table 1 – 2400 SERIES COMPANION FLANGE SETS Models Connection ⁄...
  • Page 3 1. Follow steps 1 thru 5 in section “Removal of existing for at least 90ºC (194ºF). pump from system piping”. • 2400 Series circulators are thermally protected and do 2. Loosen the four body bolts that attach the motor hous- not require external overload protection.
  • Page 4 Copyright 2015 TACO, INC., 1160 Cranston Street, Cranston, RI 02920    Telephone: (401) 942-8000    FAX: (401) 942-2360. TACO (Canadá), Ltd., 8450 Lawson Road, Unit #3, Milton, Ontario L9T 0J8.    Telephone: 905/564-9422.    FAX: 905/564-9436. TACO, Inc. Visit our web site at: http://www.taco-hvac.com...
