- Page 1 INTEGRAL-WA4 User manual www.dasaudio.com...
- Page 2 INTEGRAL-WA4 Manual...
-
Page 3: Description And Features

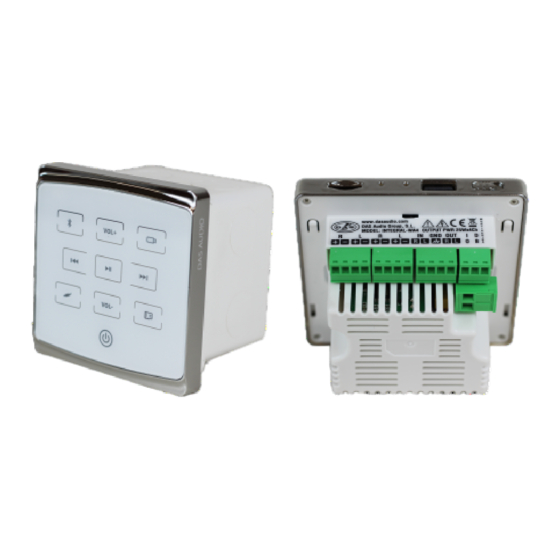

INTEGRAL Description and features INTEGRAL-WA4 is a 4-channel compact wall amplifier equipped with USB/TF card, local line input and Blue- tooth. Specially designed to be installed in the walls of commercial / educational facilities or domestic use. It uses a high-efficiency class-D amplifier for a maxi- mum power output of 4 x 25 W, at 4ohm. -
Page 4: Front Panel
Bluetooth name would be BA-425D Volume + USB mode: press to select the USB mode, long press to switch the sound effect mode. Previous song Play/Pause Next song AUX mode / local line input (unbalanced) Volume - TF card mode INTEGRAL-WA4 Manual... -
Page 5: Bottom Panel
TF card insertion slot, maximum, 32GB USB slot: can be connected to the standard 1.1, 2.0 USB, maximum 32G Power ON/OFF Switch: Turn off the device to the left, turn on the device to the right Power supply terminal: Universal Mains 115V-230V INTEGRAL-WA4 Manual... -
Page 6: Remote Control
Sound effect: Press this button to switch the sound effect USB mode VOL- Mute Play/Pause button Previous song/Next song Local AUX Input TF card mode Bluetooth mode The remote control is powered by AAA bateries (not included in the product) INTEGRAL-WA4 Manual... - Page 7 INTEGRAL Connections 8ohm load per channel, BT audio input from a tablet or mobile phone 230V / 115V 4ohm load per channel, BT audio input from a tablet or mobile phone 230V / 115V INTEGRAL-WA4 Manual...
- Page 8 INTEGRAL Connections 8ohm load per channel, BT audio input from a tablet or mobile phone and local analog input from an INTEGRAL-MA ma- trix amplifier model 230V / 115V INTEGRAL-WA4 Manual...
-
Page 9: Installation
• Attach the metal mounting ring to the electrical box with the provided screws. • Mount the connectors on the extremes of the installed cabling. • Connect the unit (speaker outputs, AC power etc.) and secure it to the mounting ring. INTEGRAL-WA4 Manual... - Page 10 BA-425D. When the link between tablet or phone and the amplifier has been set, no other devices can be paired to the unit unless the device has lost the link (be- cause of distance) or has been unpaired by the user. INTEGRAL-WA4 Manual...
-
Page 11: Specifications
AC Input Connector 90V – 250VAC Operating Range 0.6A Current Draw 230V 1.2A Current Draw 115V Dimensions ( H x W x D ) 86 x 86 x 36 mm (3.38 x 3.38 x 1.4 in) 0.150 g Net Weight INTEGRAL-WA4 Manual... - Page 12 INTEGRAL Line drawings INTEGRAL-WA4 Manual...
- Page 13 INTEGRAL Notes INTEGRAL-WA4 Manual...
