Assembly Instructions

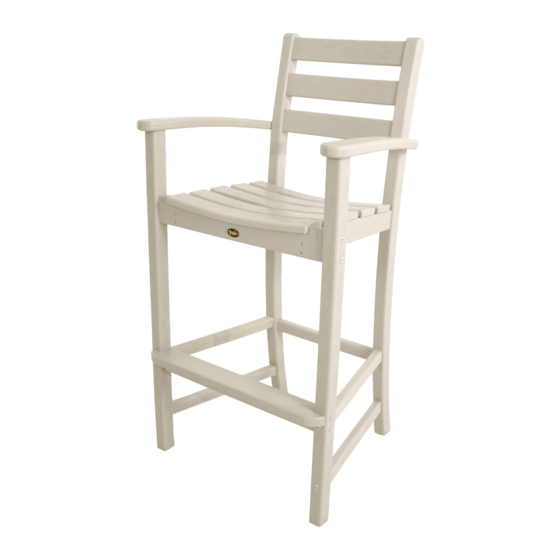

Model: TXD202
__(1) Seat assembly
__(2) Front leg with arm (LH/RH)
__(1) Back leg assembly
__(1) Foot rest
__(2) Short brace (LH/RH)
__(2) Long brace(LH/RH)
__(1) Hardware pack
TOOLS NEEDED
4MM T-HANDLE HEX KEY
(INCLUDED)
Qty.
Description
A - .27 X 2 1/2 SOCKET WAFER "A"
2
B - .27 X 3 SOCKET WAFER "A"
20

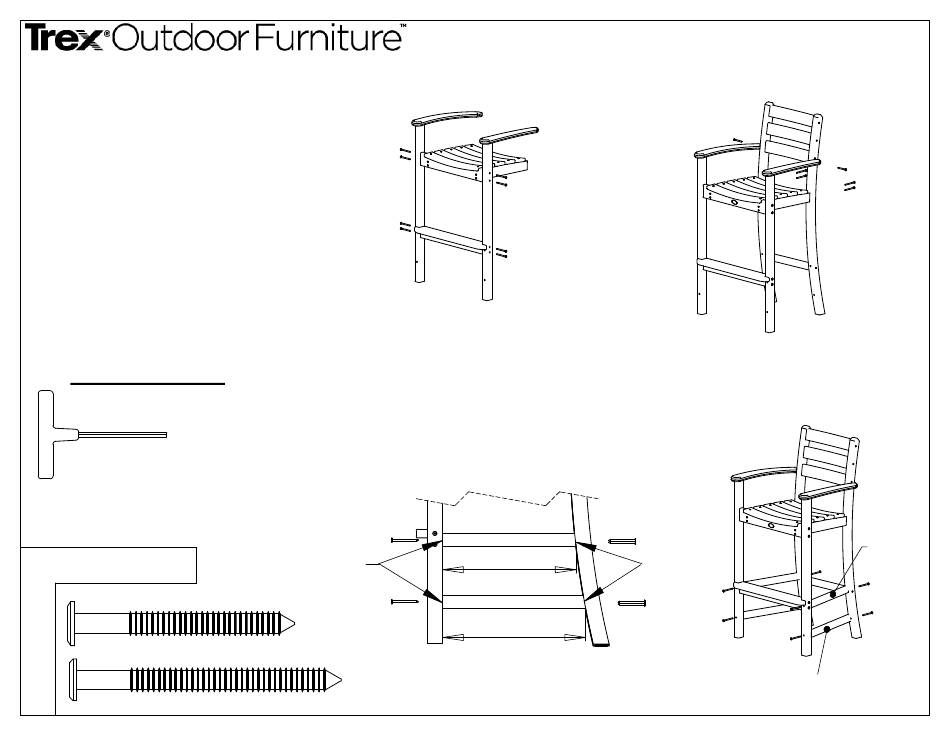

Step 1
Attach legs to the seat assembly
and footrest with (8) 3" screws
Step 3
Attach braces between the front and back
legs with the remaining (8) 3" screws.
Note: Compound angle cut on brace
should be attached to the back leg
12° Straight angle cut
ALL HARDWARE IS COATED STAINLESS STEEL
Step 2
Attach arms to back leg assembly
using (2) 2½
Attach back leg assembly to seat assembly
using (4) 3" screws
15 1/8"
Compound
angle
16 1/4"
" screws
A
A
B
Short
brace
Long brace
6/2/2011
