Assembly Instructions

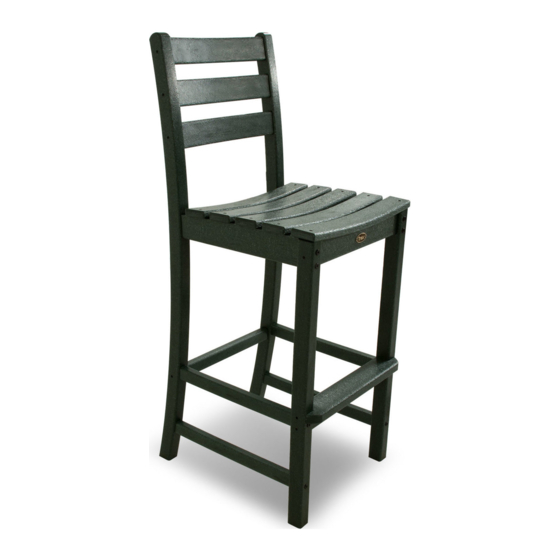

Model: TXD102

__(1) Seat assembly

__(1) Front assembly

__(1) Back leg assembly

__(1) Foot rest

__(2) Short brace (LH/RH)

__(2) Long brace (LH/RH)

__(1) Hardware pack

TOOLS NEEDED

4mm Hex Key (included)

Qty.

Description

B - 14x3" Screw

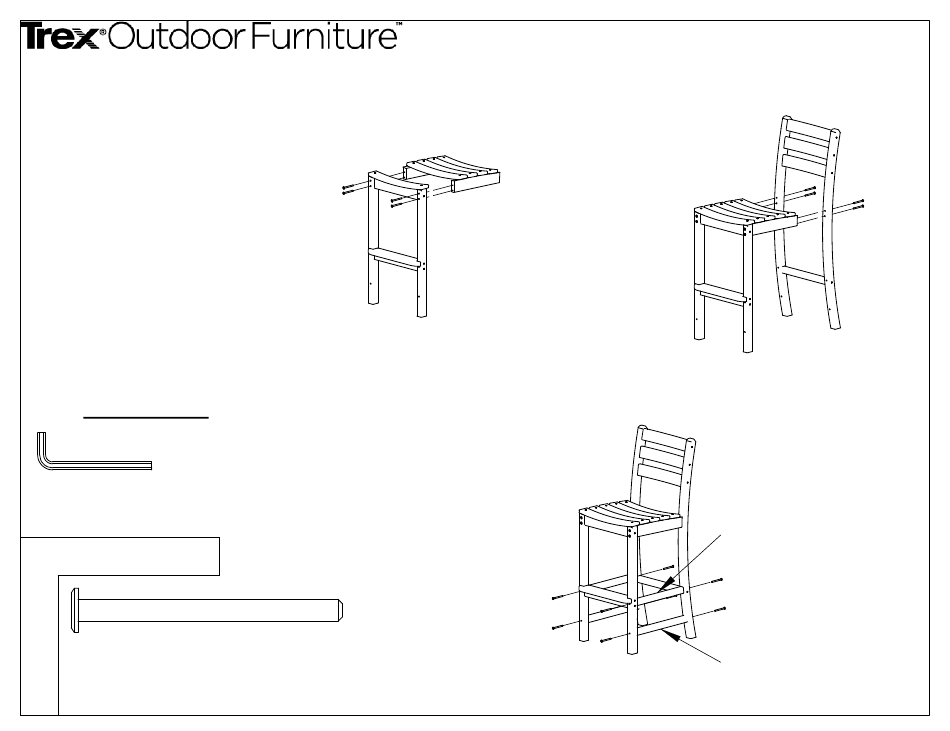

Step 1

Attach front assembly to the seat

assembly and with (4) 3" screws

Step 3

Attach braces between the front and back

legs with the remaining (8) 3" screws.

Note: Angle cut on brace

should be attached to the back leg

All hardware is SS

Step 2

Attach back leg assembly to seat assembly

using (4) 3" screws

Short brace

Long brace

10/27/2010
