Easyrack
Artikel Nr.: / Item-no.:
4536
661
01 05
anthrazit/anthracite

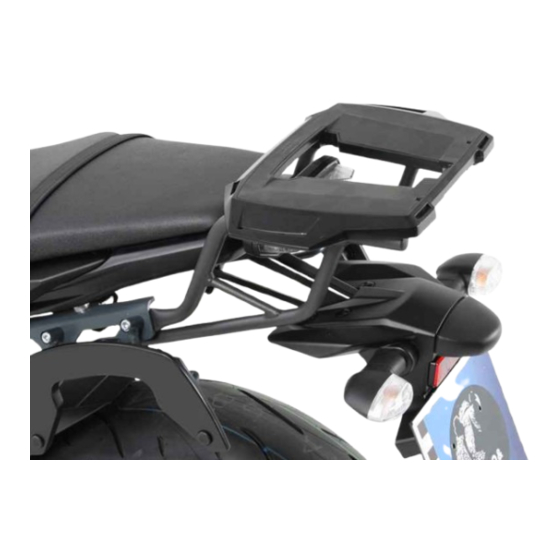

YAMAHA MT-09
Baujahr 2013-16 / date of manufacture 2013-16
INHALT
CONTENTS
1
700008343
1
700008344
1
700008350
1
700008351
Bei Bestellung eines Aluracks zusätzlich:
1
799.901HB Alu-Rack
1
799.902HB TC-Bügel für Alu-Rack
1
799.903HB Abdeckplatte für Rack
Bei Bestellung eines Easyracks zusätzlich:
1
700008650 Easyrack
1
700008647 Abdeckblende links
1
700008648 Abdeckblende rechts
1
700008352 Schraubensatz:
4
Zylinderschraube ISK M8 x 20
4
Zylinderschraube ISK M6 x12
4
Zylinderschraube ISK M6 x 20
4
Zylinderschraube ISK M8 x 35
4
U-Scheibe ø6,4
12
U-Scheibe ø8,4
4
Selbstsichernde Mutter M6
4
Selbstsichernde Mutter M8
4
Viereck-Scheiben 20 x 20 x ø6,4
2
Aludistanzen Ø18xØ9x13mm
2
Aludistanzen Ø18xØ9x10mm
Easyrack
Kombinierbar mit C-Bow Halter
Combinable with C-Bow holder
Alurack
Artikel Nr.: / Item-no.:
4536
650
Halteadapter links
Halteadapter rechts
Rohradapter links
Rohradapter rechts
Alurack
01 05
anthrazit/anthracite
1
700008343
1
700008344
1
700008350
1
700008351
When ordering a Alurack:
1
799.901HB alu-rack
1
799.902HB bow for Alu-rack
1
799.903HB plastic cover for rack
When ordering a Easyrack:
1
700008650 Easyrack
1
700008647 plastic cover left
1
700008648 plastic cover right
1
700008352
4
allen screw M8 x 20
4
allen screw M6 x12
4
allen screw M6 x 20
4
allen screw M8 x 35
4
washer ø6,4
12
washer ø8,4
4
self lock nut M6
4
self lock nut M8
4
special washer 20 x 20 x ø6,4
2
alu spacer Ø18xØ9x13mm
2
alu spacer Ø18xØ9x10mm
mounting adapter top left
mounting adapter top right
tube adapter left
tube adapter right
Screw kit:
Auch in Verbindung mit
dem Yamaha Heckumbau
(kurz oder lang).
The Racks can also be fitted
in connection with the OEM
licence plate holder.
(short or long).
