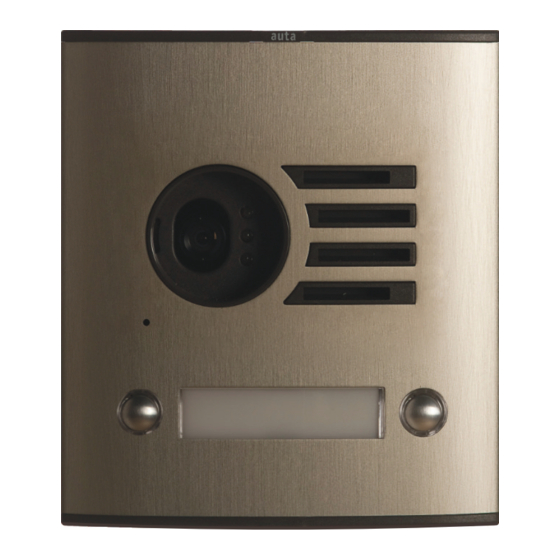

- Page 1 neos DIGITAL REF. 745202 REF. 745242 REF. 745222 REF. 745262 KVD-2 S1 COAX KVD-2 S1 COAX Bringing people together...
- Page 2 neos Bringing people together Elementos en el kit Elements in the kit DVC-4S (750498) S1 S2 S3 S4 Características Features Módulo de video Video module Altavoz Speaker Micrófono Microphone Pulsadores de llamada Call push-buttons Tarjetero de información Information cardholder Orificios de fijación Placement holes Volumen de audio en placa Panel audio volume Volumen de audio en vivienda Flat audio volume...
- Page 3 neos Bringing people together Montaje Mounting NO INCLUIDA NOT INCLUDED 1.65m 1.65m Cerrar la placa realizando una Colocar caja de empotrar Colocar caja de superficie Conectar el cableado curva inferior con el cableado Place mounting box Place surface box Connect the wiring Connect the panel doing a lower curve with the wiring Colocar información en el tarjetero Place information in the cardholder...
- Page 4 WIRING MUST NOT BE RUN CLOSE TO THE ELECTRICAL LINE GESTIÓN DE ABREPUERTAS DOOR OPENER MANAGEMENT GESTIÓN ABREPUERTAS 12VCA GESTIÓN ABREPUERTAS 24VCC MANAGEMENT OF 12VAC DOOR OPENER MANAGEMENT OF 24VDC DOOR OPENER 24Vdc 12Vac 1A auta.es Bringing people together HI-719 _ V 1.0...
