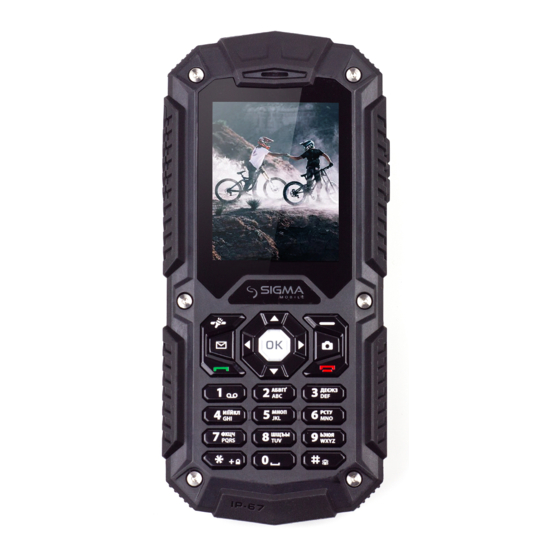

Thank you for purchasing X-treme IT67 protected
mobile phone. This user manual contains the
description of mobile phone functions.
Description of some functions may differ due to
changes in software or provider services
The
.
company keeps the right to arrange changes in
technical specifications without previous warning.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the X-treme IT67 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sigma mobile X-treme IT67

  • Page 1 Thank you for purchasing X-treme IT67 protected mobile phone. This user manual contains the description of mobile phone functions. Description of some functions may differ due to changes in software or provider services company keeps the right to arrange changes in...
  • Page 2 Key remarks in security techniques The phone is designed for calling and receiving calls, sending SMS messages, surfing the Internet (may be unavailable) etc. The below mentioned instructions are to help you use the phone and avoid phone malfunction or causing damage to surroundings.
  • Page 3 circuit may occur, if any metal item, e.g coin, clip or pen connect battery contacts ( metal strips on the battery). Short circuit may damage the battery. ◆ The battery may be charged many times it eventually wears out. If working time is noticeably shorter, perhaps there is a need to replace the battery.
  • Page 4 service center. WARNING This phone is protected against dust and water penetration according to IP68 Standard. This Standard doesn’t state shock-proof features. Please, be carefull with USB and audio connector's rubber caps and follow general rules of safety usage. Warranty void in case of water penetration due to mechanical injuries or rubber caps not tightly closed.
  • Page 5: Getting Started

    Getting started Charge the battery and insert Sim-card before you start using a phone. Using battery 1. Use standard charging devices for charging battery to prolong battery life. 2. Charge completely the battery for the first 3-5 cycles of charge \ discharge. 3.
  • Page 6 3. When battery is charging, it displays charging animation. Charging animation stops if battery is fully charged Disconnect charger from phone and AC power source after charging. Note: Please be very carefully when you connect the charging device to the phone. Bad connection may cause phone’s malfunction.
  • Page 7 Using code There are few codes that protect your SIM-card from unauthorized access. When you are prompted to, input code and press OK. PIN-code Personal identification number or PIN-code (4-8 digits) protects your SIM-card from unauthorized use. The PIN comes with the SIM card.
  • Page 8 check function, then you will be required to input PIN code each boot. If you enter an incorrect PIN three times in a row, SIM card will be blocked until you activate it with PUK-code. PUK-code Enter the PUK code (The 8 digit personal unlock code) to unlock the PIN code.
  • Page 9 Headset Insert headset to phone’s audio connector. Standby mode In standby mode, you may view icons on the display. Their meaning is mentioned below: Vertical bars indicate signal strength of the GSM network signal. Five bars correspond to best quality.
  • Page 10 Both SIM-cards are active New text message Call transfer to SIM1 Sound is ON Mute Phone is locked Headset mode Alarm is ON Current battery capacity Bluetooth is ON...
  • Page 11 External view Text input...
  • Page 12: Preferred Input Method

    Preferred Input Method You may input text in different applications such as contacts, text messages, calendar, using following modes: ABC (character input), 123 (digital input). Input text using alpha-numeric keypad. In text edit mode, soft keys allow you to enter options (left soft-key) or clear text (right soft-key).
  • Page 13: Dialing An International Call

    Phone functions Dialing call This section describe available phone functions. In standby mode, press digit keys to enter number directly and press Call button to start a call. Dialing an international call Press and hold [*] to input international prefix connection (symbol +).
  • Page 14: Call Options

    switch to new incoming call. Press left-soft key and choose “Switch” option to switch back to previous call any time. Call options You may use the followind options during a call 1. Hold: put current call on hold 2. End: end the current call 3.
  • Page 15 This menu shows recent missed calls. Outgoing calls This menu displays last outgoing calls. Incoming calls This menu displays last incoming calls. Clear call log Allows you to clear all logs or select logs to clear. Call settings SIM1\2 settings This menu allows you to set general settings for calls.
  • Page 16 It allows to add or change phone numbers in the black list. Automatic redial This enables the automatic redial if the recipient does not pick up. Alert during the call This feature allows you to enable and configure one- time or periodic notification about the time of conversation after a specified period of time.
  • Page 17 New contact Add new contact to the phone memory or to one of SIM-cards. Searching The searching for names and numbers stored in the phone book. In search mode, # key lets you change input method. Following operations are available: Overview: to view detailed contact information.
  • Page 18 Speed dial: Allows you to set speed dial list. After setting the list you may dial the preset phone by long pressing corresponding key. Additional numbers: allows you to set or change fixed operator numbers. Memory: shows total amount of phone and SIM- cards memory.
  • Page 19 File Manager allows you to manage images, audio, video files and other content downloaded to the phone. Organizer Calendar The Calendar lets you organize your appointments and tasks, set reminders. Calendar supports following functions: Overview: To view note to a specific date. Show all: to see all notes by a certain date.
  • Page 20 Tasks This menu allows you to create tasks. Calculator Calculator performs simple arithmetic actions: addition, subtraction, multiplication and division. EBook The program allows you to open e-book in TXT format. Copy the book to [eBook] folder of the memory card and start the application. Message Serves for sending and receiving text and multimedia messages.
  • Page 21 Messages not sent due to various reasons are stored here. Sent Sent messages. Broadcast message This network service allows you to receive broadcast messages on various topics, such as weather, transportation, taxi or pharmacy in your area. For more information on the topics of broadcast messages, please contact your service provider.
  • Page 22 This application lets you view images on the phone memory and memory card. You can also select display options - list or spreadsheet. There are also following options: View: allows you to view all the images in photo album. Information: detailed information about an image. Type: it allows you to select the way to view: list or spreadsheet.
  • Page 23 may be listened using headphones as well as through the loudspeaker. User-friendly interface allows you to play, pause and navigate compositions in a simple and natural way. When switched on, the player automatically scans your music folder and adds new songs to the play list. Settings (left soft key) let you enable \ disable auto- update playlist, enable \ disable repeat, shuffle, background play.
  • Page 24 Channel List: This menu consists of a list of saved channels Manual entry: Channel manual input Automatic Search: turn on automatic channel search. Setting: Background playback: Enable / disable Background playback Speaker: use phone’s speaker for playback Note: before using FM-radio, plug in wired headset. Profiles The following profiles: General, Silent, Meeting, Outdoor are available.
  • Page 25 WAP service of your phone allows you to access wireless Internet. Using Web browser, you may have an access to current information and a wide selection of media content. Note: To activate WAP, you should contact your service provider. Options: Homepage Go to the home page.
  • Page 26 Active SIM The phone supports two SIM cards, switching from one to another if necessary. There is a possibility to use the services of two operators without using the second phone. You may use 3 modes: DUAL SIM, only SIM1, only SIM2.
  • Page 27 Network selection let you choose GSM network automatically or manually. Note: Selecting a network that differs from mobile operator's own network is possible only the operator has roaming with this network. Security There are several levels of security with various passwords.
  • Page 28 Bluetooth Bluetooth connection is used for listening music, transferring pictures, sending video, text, business information and cards. Power: power on/off Bluetooth. Visibility: set visibility for other devices My Devices: list of devices. If the list is empty, press OK button to search for new devices. Select your device from the list, press the middle button to access Search audio device: wireless audio devices.
  • Page 29: Troubleshooting

    Troubleshooting If you encounter problems, please refer to the table below before applying to a service center. Common Possible solution problem Unable to switch Check whether the battery the phone on power is sufficient. Please charge the battery. Check battery contacts. Remove and put the battery back to phone.
  • Page 30 indicate strong signal, less than 2 bars indicate weak signal. Unable to dial out Move to the area with better network signal. If Sim-card doesn`t work you should contact your service provider. Unable to connect The signal is weak, or the network there interference...
