Viega PureFlow Instructions

Product
Instructions
Viega PureFlow
Zero Lead ManaBloc
B
A
A
C
*Zero Lead identifies Viega ® products meeting the lead free requirements of NSF 61-G through
testing under NSF/ANSI 372 (0.25% or less maximum weighted average lead content).
Viega products are designed to be installed by licensed and trained plumbing and mechanical professionals who are familiar
with Viega products and their installation. Installation by non-professionals may void Viega LLC's warranty.
This document is subject to updates. For the most current Viega technical literature please visit www.viega.us.
Viega LLC • 585 Interlocken Blvd. • Broomfield, CO 80021 • Phone (800) 976-9819 • www.viega.us
PI-PF 521116 1218 PureFlow Press Port Adapter (EN ES FR)
Press Port Adapter
®
Port Connection
®
1 2
B
3
5
7
The water supply to the ManaBloc and the port valves
shall be turned off before attempting installation of
press adapters.
CAUTION

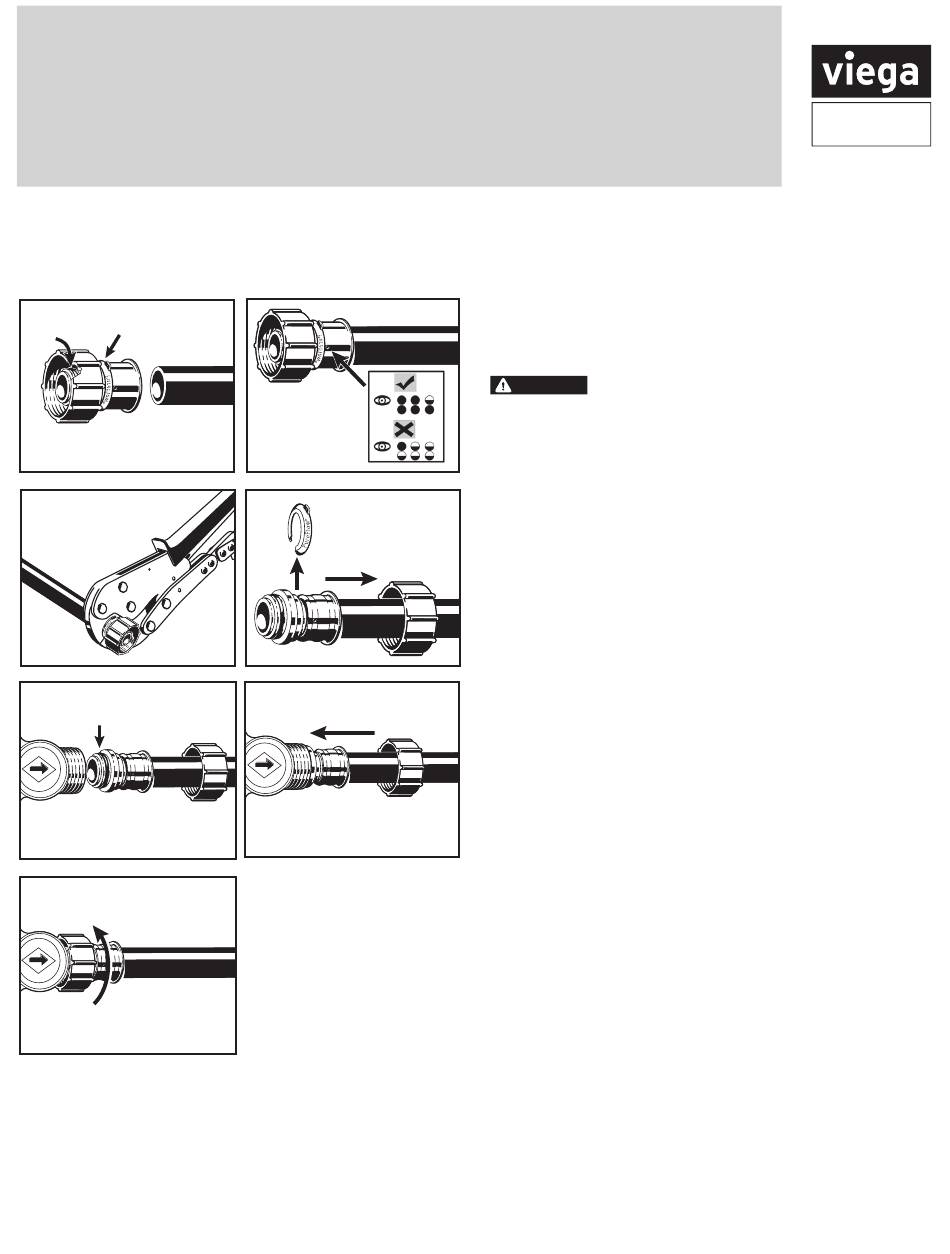

1. Ensure sealing element (A) is in place and the tool
locator ring (B) is present in its factory installed position.
2. Square off tubing to proper length and insert the fitting
fully into the end of the tubing as shown. Full insertion
means tubing must be completely visible in at least two
viewing holes and may be partially visible in one.
C
3. Placing the PureFlow Press tool jaw over the attached
press sleeve resting it against the tool locator ring.
Press the sleeve with an appropriately sized press
4
jaw. DO NOT PRESS TWICE. Refer to current Viega
PureFlow Water Systems Manual for additional
pressing information.
4. Remove tool locator ring (B) and slide swivel nut (C)
over tubing as shown.
5. Ensure sealing element (A) is in place and clean of any
dirt or debris. Wet sealing element with tap water.
6. Insert the fitting into the desired port until the fitting
6
flange sets flush with the end of the port.
7. Thread the swivel nut (C) onto the ManaBloc port.
Hand-tighten only. Open the port valve(s) before
turning on the main water supply.
Use only sealing elements supplied with
the adapters.
1 of 2
