Viega SVC Product Instructions

Product Instructions

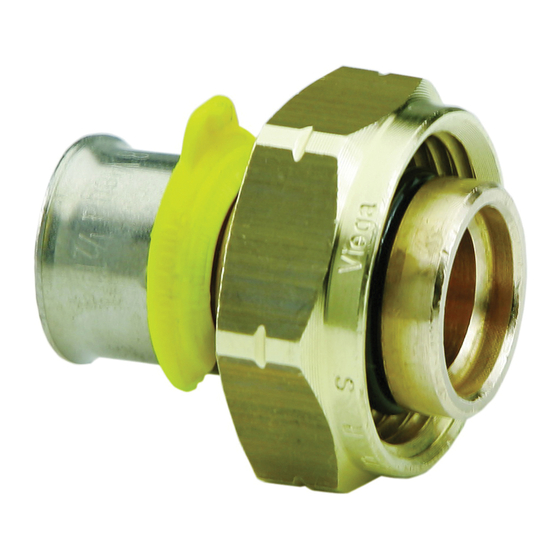

Viega SVC Press Adapter
5/16" - ¾"
Model 2819NG
1 2
7 8
EN
Viega SVC Press Adapter 5/16" - ¾"
Viega products are designed to be
installed by licensed and trained plumbing
and mechanical professionals who are
familiar with Viega products and their installation.
Installation by non-professionals may void
Viega LLC's warranty.

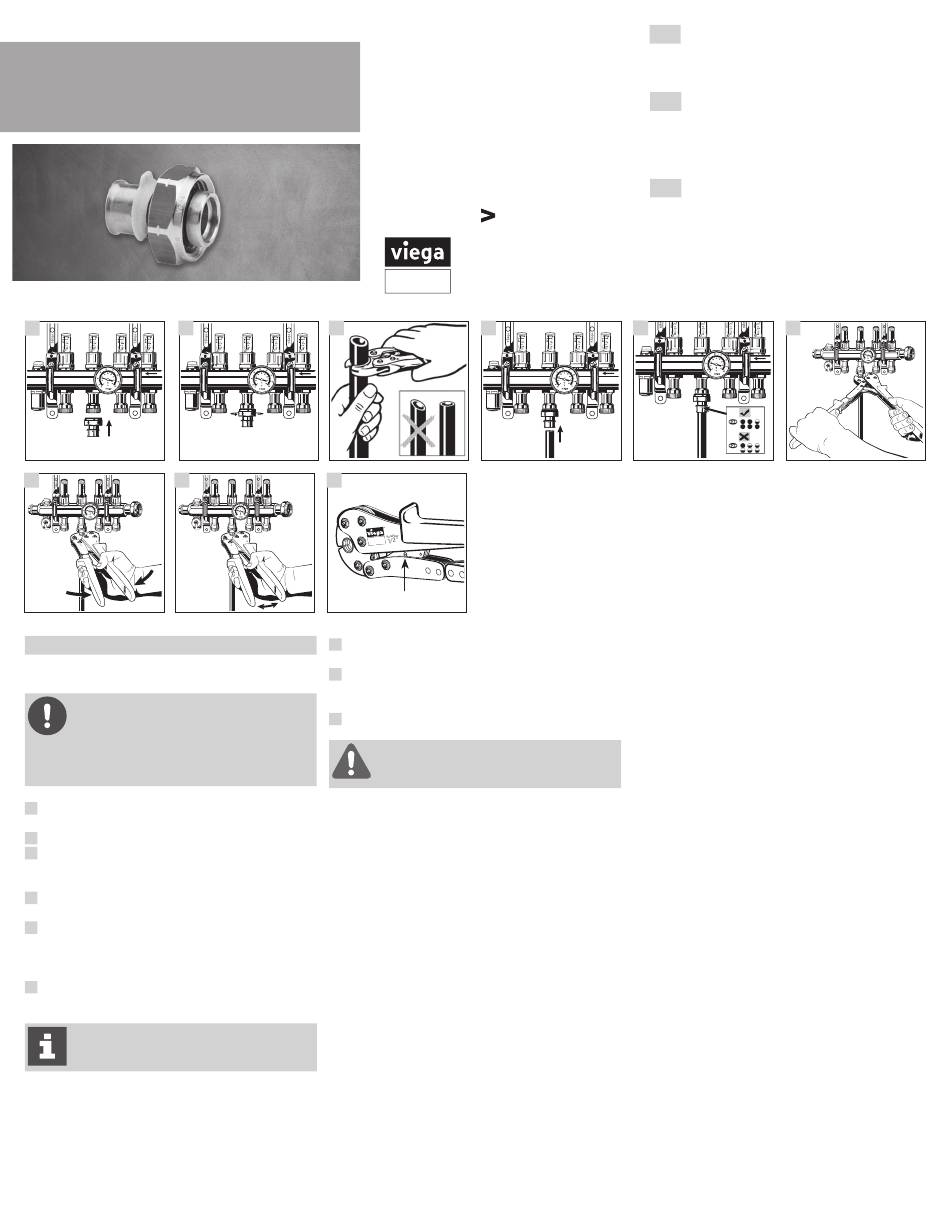

1
Insert SVC adapter into seat (manifold or other
fitting).
2
Tighten nut onto seat to secure press adapter.
3
Square off tubing to proper length. Uneven,
jagged or irregular cuts will produce unsatisfactory
connections.
4
Insert PEX Press fitting with attached sleeve into
tubing and engage fully.
5
Ensure full tubing insertion at view holes in
attached press sleeve. Full insertion means tubing
must be completely visible in at least two view
holes and partially visible in the one.
6
Position press tool perpendicular over Press
Sleeve and close tool jaws to engage ratchet.
It may be necessary to rotate the locator
ring to avoid interference between the ring
and tool.
Viega LLC
585 Interlocken Blvd.
Broomfield, CO 80021
Phone (800) 976-9819
www.viega.us
3 4
9
7
Close handles, using trigger to reduce grip span if
desired.
8
Extend handle and continue ratcheting until
automatic tool release occurs at proper
compression force.
9
Turn screw for emergency release.
WARNING!
The connection is not leakproof when the
tool has been opened by emergency release.
EN
Product Instructions
Viega SVC Press Adapter 5/16" - ¾"
This document is subject to updates. For the most current Viega
technical literature please visit www.viega.us.
