Viega 89409 Product Instructions

Product
Instructions

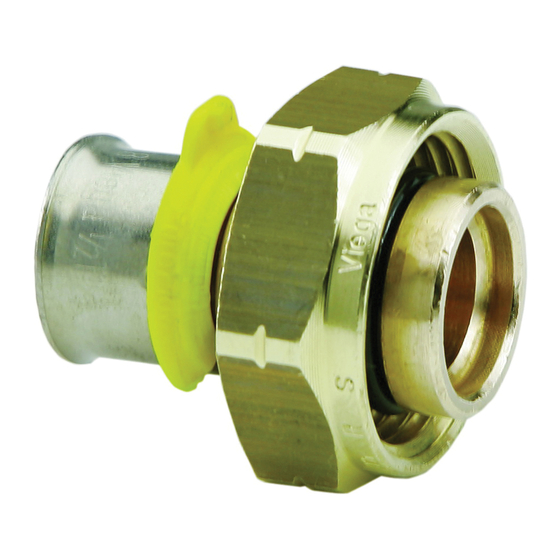

SVC Press Adapter
1 2
4 5
7 8
Turn screw for
emergency release.
10
This document subject to updates. For the most current Viega technical literature please visit www.viega.us
Click Services -> Click Electronic Literature Downloads -> Select Product Line -> Select Desired Document
Viega LLC, 100 N. Broadway, 6
PI-PR 511698 0814 (SVC Press Adapter) (EN ES FR)
/ " - ¾"
5
16
3
6
9
10. Warning: The connection is not leakproof when the
Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: 316-425-7618
th

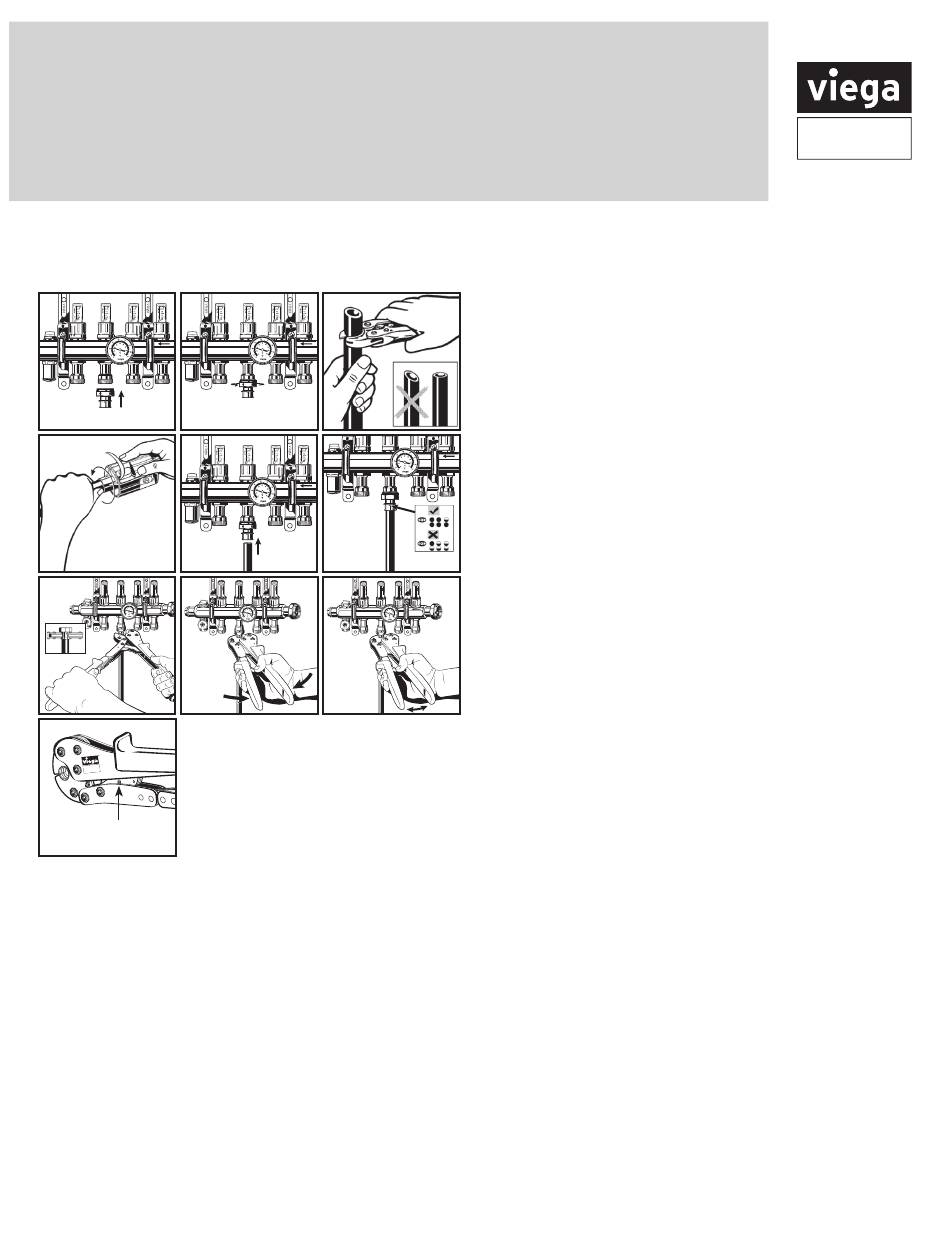

1. Insert SVC adapter into seat (manifold or other fitting).
2. Tighten nut onto seat to secure press adapter.
3. Square off tubing to proper length. Uneven, jagged or
irregular cuts will produce unsatisfactory connections.
4. If using FostaPEX tubing, insert into prep tool, push and
turn until no resistance is felt. If using ViegaPEX barrier
tubing,continue to Step 5.
5. Insert PEX Press fitting with attached sleeve into tubing
and engage fully.
6. Ensure full tubing insertion at view holes in attached
press sleeve. Full insertion means tubing must be
completely visible in at least two view holes and
partially visible in the one.
7. Position press tool perpendicular over Press Sleeve
and close tool jaws to engage ratchet.
NOTE: It may be necessary to rotate the locator ring
to avoid interference between the ring and tool.
8. Close handles, using trigger to reduce grip span if
desired.
9. Extend handle and continue ratcheting until automatic
tool release occurs at proper compression force.
tool has been opened by emergency release.
1 of 2
