Summary of Contents for STUDIO DUE PARLED PRO 200

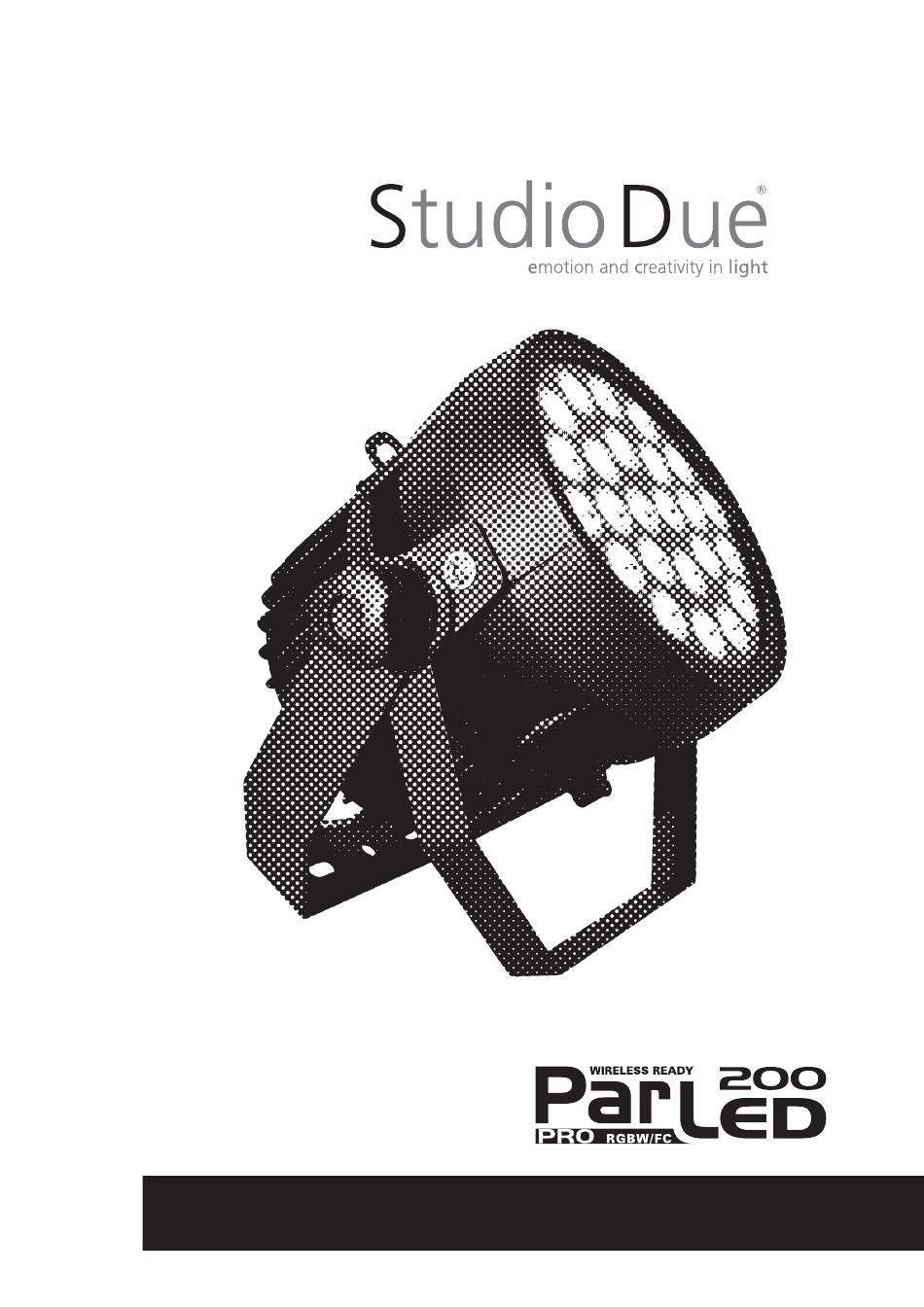

- Page 1 IP67 User manual for art. 16012 Manuale d’uso per art. 16012...
- Page 2 this page is intentionally left blank / questa pagina è stata lasciata intenzionalmente bianca...
- Page 3 AMPHENOL connectors 4 or 4 or FEMALE MALE WARNING SIGNAL IMPORTANTE GROUND/RETURN/OV N.C. DATA COMPLEMENT ( -, INVERTED) DATA TRUE ( +, NON INVERTED) In questo connettore potete trovare il NUMBER 4 or the GROUND sign. NUMERO 4 o il simbolo della TERRA. IMPORTANTE WARNING Se volete utilizzare gli apparecchi...
- Page 4 INDEX Page 5 - Safety informations / Informazioni di sicurezza Page 6 - Introduction / Introduzione Page 7 - Technical features / Caratteristiche tecniche Page 8 - Example of connection DMX controller-fixtures / Esempio di collegamento centralina DMX-fari Page 9 - Main supply connection / Collegamento fonte di alimentazione Page 10 - DMX signal connection / Collegamento segnale DMX Page 11 - DRS configuration / Configurazione del DRS Page 13 - Menu list / Lista dei menu...
- Page 5 WARNING SAFETY INFORMATION (service personnel) READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. At the end of its life, must be collected separately. It shouldn’t be thrown as urban waste and neither released in the environment.
- Page 6 Thanks for using Parled 200 PRO IP67. PARLED 200 PRO is our new IP67 RGBW Full Color flood projector for outdoor use only. Suitable for touring, tv studios, venues, theatres and generally for the architainment market. This fixture is wireless ready. Integral Wireless DMX control is available as an option (art. WI PCB-REC). To obtain the best performances and for a correct functioning of this unit for the years to come, we suggest you to read carefully this manual before connecting or putting the fixture into use.
- Page 7 n. 16x12W RGBW Full Color LEDs supplyed 600mA 8000 total lm 35mm lenses standard beam 28° On request: 35mm lenses wide beam 40° Manual 360° Standard interface: RS-485; opto-couplet bi-directional Protocol: USITT DMX 512, RDM Protocol ready > Integral Wireless DMX control (receiver) is available as an option (art. WI PCB-REC). Signal: AMPHENOL ECOMATE 4pin IP 68 connector (male-female) possibility to link up to 32 devices in chain DMX or automatic mode with MASTER/SLAVE function...
- Page 8 DMX out DMX out Connection controller-spot to 1 DMX 512 output over 150 mt. long Collegamento centralina-spot ad una sola linea di uscita DMX 512 lunga oltre 150 mt. SIGNAL AMPLIFIER AMPLIFICATORE LINE > 150 mt. (with microphonic or audio cable) DI SEGNALE LINEA >...
-
Page 9: Power Input
This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. IMPORTANT: to ensure the IP67 protection rating, in case of replacement of the conductor cable, refer to the CONDUCTOR SIZE TABLE Questo apparecchio necessita di messa a terra. - Page 10 The wrong connection of the terminal line or its non-connection are probably the most frequent reasons for the defective functioning of the DMX line. The terminator is a terminal resistor fitted at the end of the cable furthest from the transmitter. The terminal resistor should have the same value as the impedance of the connection cable.
- Page 11 The DRS it’s a new concept of professional LED Lighting fixtures suitable for outdoor permanent installations. Every single LED fixture can be controlled and configured via DMX through a specific electronic device, the DRS DMX Remote Setup, that grant the possibility to set up the scenarios and the games remotely. These LED Lighting fixtures have installed on board a series of programs including the stand alone function.
- Page 12 To make the set-up of the various fixture parameter, proceed as follow: 8888 sign written and afterwards, displays the name of the fixture and its software version. shows the written Per effettuare la programmazione dei vari parametri di un apparecchio, è necessario procedere come segue: 8888 e, successivamente, visualizza il nome dell’apparecchio e la relativa versione software malfunzionamento il display visualizzerà...
- Page 13 Switching on the fixture you can see the model and the software version. For example: All’accensione, viene visualizzato il modello di apparecchio e la versione software. Per esempio: --> Parled 200 pro rGbU --> 2_00 than it’s shown the fist menu poi viene visualizzato il primo menu Address (Addr) Set the DMX address...
- Page 14 CH1: CH1: Cyan CH2: Green CH2: Yellow CH3: Blue CH3: Magenta CH4: White CH4: Not used CH5: Strobe CH5: Strobe CH6: Dimmer CH6: Dimmer CH7: Led Fade Time CH7: Led Fade Time CH8: Rainbow CH8: Rainbow CH9: Fix White (Balanced White) CH9: Fix White (Balanced White) CH1:...
- Page 15 GREEN BLUE WHITE 2-127 128-255 Strobe Open Dimmer 0=CUT LINEAR fade time FAST SLOW Rainbow 0-15 16-255 Balanced white normal...
- Page 16 GREEN BLUE WHITE Strobe Dimmer GREEN BLUE WHITE Dimmer GREEN BLUE WHITE...
- Page 17 STUDIODUE light s.r.l. str. Poggino, 100 - 01100 VITERBO ITALY - tel. +39 0761 352520 - fax +39 0761 352653 http://www.studiodue.com E-Mail: info@studiodue.com - service@studiodue.com...
- Page 18 IP67 FC RGBW/FC 09/2016 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE light s.r.l. The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product:...
-
Page 19: Warranty Card
Warranty CARD Company name: ..........................Mr./Mrs./Miss: ..........................Address: ............................Tel. or E-mail : ..........................Dealer: ..................... 1) Price quoted are not inclusive of lamp and package. Package charge is 2% on the net price for all the items. These prices should be subject to possible variations for eventual rises of production costs or duties. Claims for possible damages during the freight, must be notified to the carrier. - Page 20 Studio Due light - © The features on this brochure are not binding: they can be changed without notice. Le caratteristiche riportate su questo catalogo non sono impegnative: possono essere soggette a variazioni senza preavviso.
