Summary of Contents for Lamona LAM3201

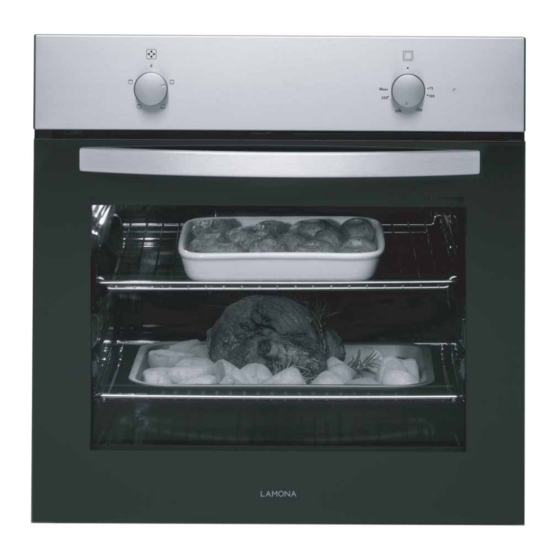

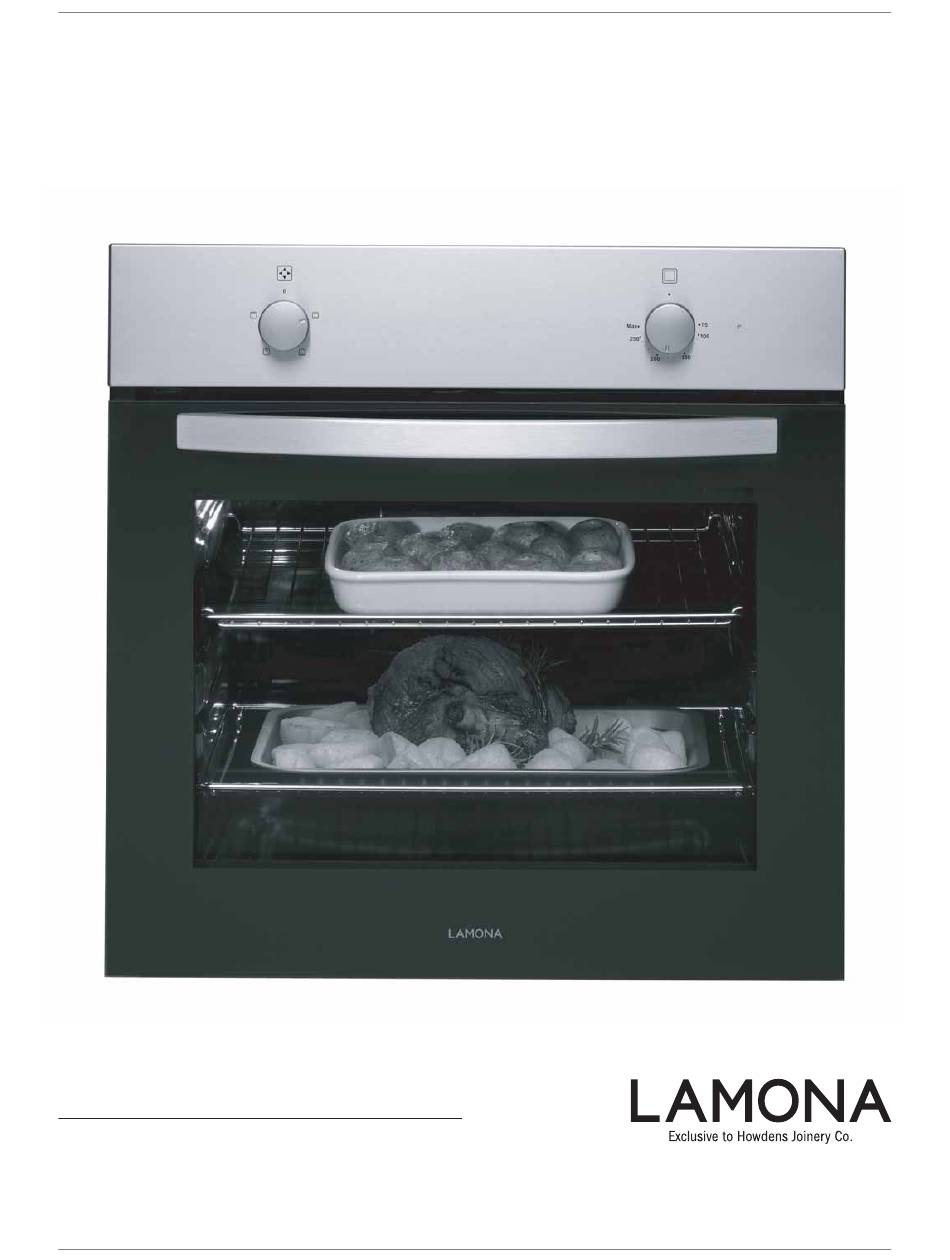

- Page 1 Built-in LAM3201 LAM3205 Conventional Oven LAM3206 User & Installation Guide...
- Page 2 LAMONA Appliances Dear Customer, Congratulations on your choice of oven which has been designed to give you excellent service. The user manual will help you use your product quickly and safely. Please read this user manual before installing and using the oven.
- Page 3 User manual LAM3201 / LAM3205 / LAM3206 Index Before using the oven & Safety Cooking and baking advice General Cooking table Important Safety Information Oven cooking table Safety for children Grill cooking table Safety when working with electricity Care and maintenance...
- Page 4 User manual LAM3201 / LAM3205 / LAM3206 Important instructions and warnings for safety and environment This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 5 User manual LAM3201 / LAM3205 / LAM3206 Important instructions and warnings for safety and envi ronment Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
-
Page 6: Before Using The Oven
LAMONA Appliances Before using the Oven Make sure that you have removed all packaging, wrappings, stickers and from the oven’s surface. It is recommended that you clean and wash the oven’s surface before using for the time. Never use the product when your judgment or coordination is impaired by the use of alcohol and/or drugs. -
Page 7: Safety For Children
User manual LAM3201 / LAM3205 / LAM3206 and components inside the oven which maybe Product must be installed by a person hot. Always allow time for the oven in accordance with the regulations in force. to cool. Otherwise, the guarantee may become void. -
Page 8: General Information
LAMONA Appliances General Information Oven layout Control panel Heating element Handle Light Oven Door Oven shelf positions Control panel layout oven/ grill function knob oven / grill temperature indicator Main oven temperature indicator Accessories Oven tray / grill pan Grill pan wire rack / trivet... -
Page 9: Operating Modes
User manual LAM3201 / LAM3205 / LAM3206 Operating modes Operating modes All functions for the ovens and grill are listed in this section. Please note* depending on the model of your oven, the number and order of operating modes available may deviate from the illustrations shown below. -
Page 10: First Cleaning Of The Appliance
LAMONA Appliances Preparation First cleaning of the appliance Tips for saving energy Remove all packaging materials. The following information will help you to use your Wipe the surfaces of the appliance with a appliance in an ecological way, and to save energy:... -
Page 11: Shelf Positions
User manual LAM3201 / LAM3205 / LAM3206 How to operate the main oven and grill Select temperature Shelf positions & Operating mode The oven has 5 shelf positions as illustrated below, It is important to position the wire shelf into the runners correctly. -
Page 12: Cooking And Baking Advice
LAMONA Appliances Cooking and baking advice Tips for baking cake If the cake is too dry, increase the temperature by 10°C and decrease the cooking time. If the cake is wet, use less liquid or lower the Risk of scalding by hot steam! Take care when temperature by 10°C. - Page 13 User manual LAM3201 / LAM3205 / LAM3206 Exclusive to Howdens Joinery.co Page _ 13...
-
Page 14: Cooking Tables
LAMONA Appliances Cooking Tables The values indicated in the tables below are Baking and roasting indicative. They may vary according to the type of Level 1 is the bottom level in the oven. food as well as your preferences of cooking. -
Page 15: Grill Cooking Table
User manual LAM3201 / LAM3205 / LAM3206 Grill cooking table GRILL COOKING TABLE Food Cooking level Oven Function Cooking Time (min) Fish 4-5 Level 20 - 25 Sliced chicken 4-5 Level 25 - 30 Lamb chops 4-5 Level 20 - 25... -
Page 16: Care And Maintenance
LAMONA Appliances Care and maintenance Do not remove the control knobs General information for control panel cleaning. Cleaning oven door Service life of the product will extend and the possibility of problems will decrease if the product is Don’t use any harsh abrasive cleaners or sharp cleaned at regular intervals. -
Page 17: Removing The Inner Door Glass
User manual LAM3201 / LAM3205 / LAM3206 Removing the inner door glass The inner glass panel of the oven door can be The inner glass can then be lifted from its removed for cleaning. retaining slots. When cleaning, avoid the use any harsh... -
Page 18: Replacing The Oven Lamp
LAMONA Appliances Replacing the oven lamp Hot surfaces may cause burns! Make sure that the appliance is switched off and cooled down in order to avoid the risk of an electrical shock or burns. The oven lamp is a special electric lamp that can resist up to 300°C. -
Page 19: Before Installation
User manual LAM3201 / LAM3205 / LAM3206 Installation Before installation Damaged products may cause risks to your own The product should only be installed by suitably safety. persons. The appliance is intended for installation in Howdens kitchen cabinets. Surfaces, synthetic laminates and adhesives used must be heat resistant. -
Page 20: Installation And Connection
LAMONA Appliances Installation and connection Risk of electric shock . Before starting any Material damage! work on the electrical installation, please The door and/or handle must not be used for lifting disconnect the mains supply. or moving the appliance. This appliance must only be installed by a We recommend 2 people handling of the electrician, e.g. -
Page 21: Cooling Fan
User manual LAM3201 / LAM3205 / LAM3206 Cooling fan Installation Slide the oven through the cabinet aperture, align and secure. Fix your oven with the 2 screws and washers as indicated in the illustration. Final check Control panel Connect the appliance to the mains supply, Door switch on the mains supply and check the oven’s... - Page 22 LAMONA Appliances TECHNICAL INFORMATION General Voltage /Frequency 220-240 V ~ 50 Hz Total power consumption 2.4kW Fuse min. 13A max. 2m Cable Length Cable type / section HO5W-FG1.5mm², 3 core or equivalent Oven/Grill External dimensions (height / width / depth)
-
Page 23: Troubleshooting Guide
User manual LAM3201 / LAM3205 / LAM3206 Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions Oven emits steam when it Food is being cooked with a high It is normal that steam escapes from food during cooking. is in use. water content This is not a fault. -
Page 24: Your Guarantee
LAMONA Appliances Your guarantee Product Guarantee Details (UK only) breakdown repairs. (Details of which are shown on your Proof of Purchase Document). Any claim during the period of the guarantee (MUST BE ACCOMPANIED BY THE PROOF OF PURCHASE) The product must be correctly installed and operated in accordance with the manufacturer’s instructions and used for normal domestic purposes. - Page 25 User manual LAM3201 / LAM3205 / LAM3206 Notes Exclusive to Howdens Joinery.co Page _ 25...
- Page 27 ISSUE v4 10-12-14 If supplied, please stick your self adhesive product rating plate here, or make a note of the product serial number below in the box below for future reference. Serial Number : ................... 285.4418.50/R.AA/08.05.2014...
