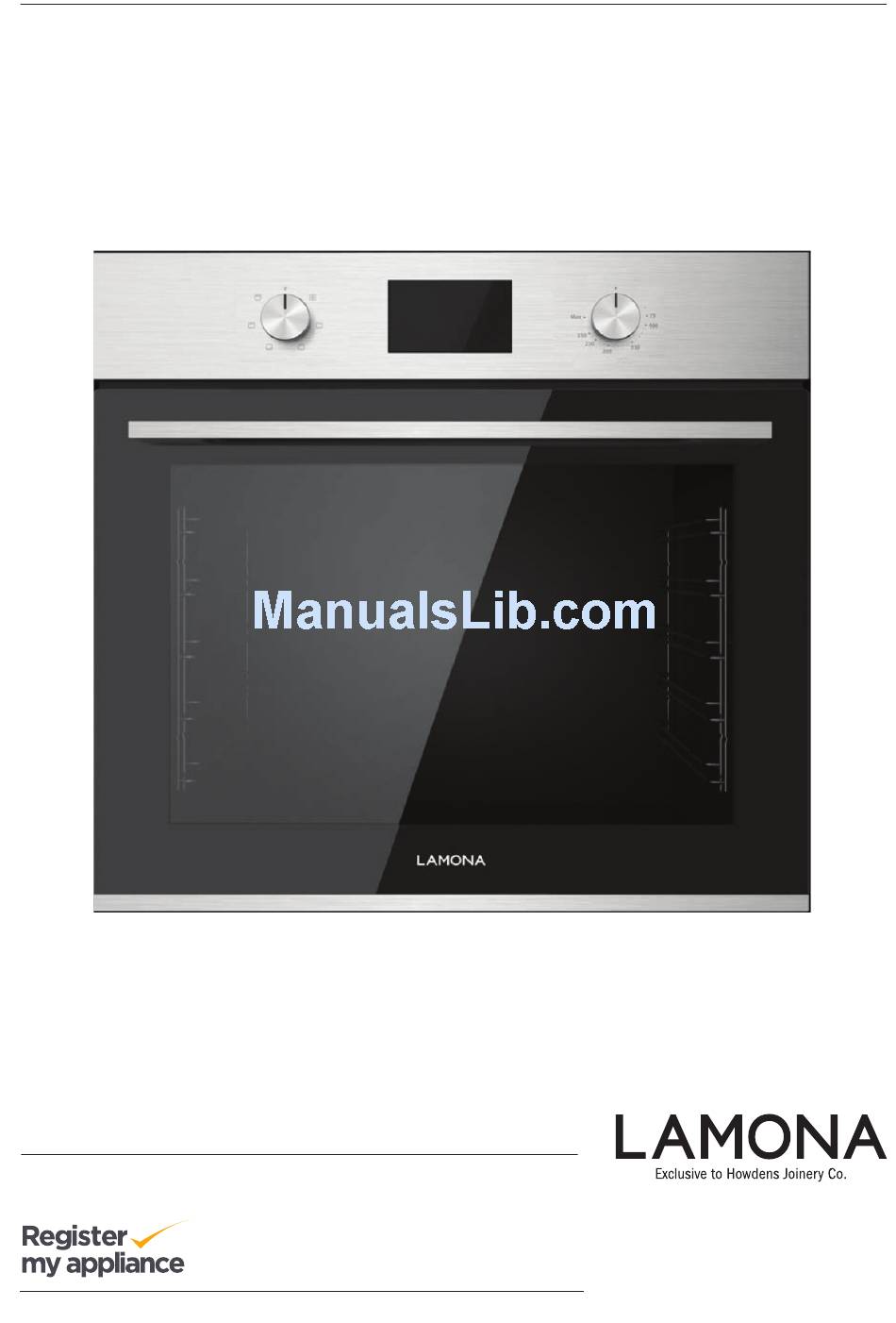

- Page 1 Built-In Single Fan Oven LAM3405 Instructions and Installation www.howdens.com/appliance-registration...
- Page 3 See back page for product serial number...
- Page 4 LAMONA Appliances Dear Customer, Congratulations on your choice of oven. The user manual will help you use your product quickly and safely. Please read this user manual before installing and using the oven. Always follow the safety instructions. Keep this user manual within easy reach for future reference.
-
Page 5: Table Of Contents
User manual LAM3405 Index Before using the oven & Safety Cooking table Oven cooking table General Safety for children Cooking and baking advice Safety when working with electricity Shelf positions Care and maintenance General information General information Cleaning the control panel... -
Page 6: General
LAMONA Appliances Before using the Oven • Make sure that you have removed all packaging, wrappings, stickers and fi lms from the oven’s surface. • It is recommended that you clean and wash the oven’s surface before using for the fi rst time. - Page 7 User manual LAM3405 • Do not operate the product • Accessible parts may if it is defective or has any become hot during use. To visible damage. avoid burns, children less than • Do not carry out any repairs 8 years of age should be kept or modfications to the product.
- Page 8 LAMONA Appliances • Do not heat closed tins and • Always use heat resistant glass jars in the oven. The oven gloves when putting pressure that would build-up in dishes in or removing dishes the tin/jar may cause it to from the hot oven.
-
Page 9: Safety When Working With Electricity
User manual LAM3405 • Make sure that the product • Keep all ventilation slots clear of obstructions, as this control knobs are switched off after every use. may cause premature failure of the oven element. Safety when working with • Do not allow the oven to electricity cool with the door open. -
Page 10: Shelf Positions
LAMONA Appliances Shelf positions The oven has 5 shelf positions. It is important to position the wire shelf into the runners correctly before placing items on the shelf. Do not insert shelves forcefully. Page _ 9 www.howdens.com... - Page 11 User manual LAM3405 °C oven / grill temperature knob Page _ 10 Exclusive to Howdens Joinery.co...
-
Page 12: Operating Modes
LAMONA Operating modes Operating modes or the ovens and grill are listed in this section. Please not der of operating modes av y deviate from the illustrations sho Lamp Defrosting Turns on the oven light. This will o this position. The automatically activate the cooling fan. -
Page 13: Preparation
User manual LAM3405 Preparation First cleaning of the appliance Tips for saving energy 1. Remove all packaging materials. The following information will help you to use your 2. Wipe the surfaces of the appliance with a appliance in an ecological way, and to save energy: damp cloth or sponge and dry with a clean cloth and mild detergent. -
Page 14: How To Operate The Main Oven
LAMONA Appliances How to operate the main oven and grill Setting the correct time How to use the Oven & Grill 1. Set thermostat knob to the desired temperature. 2. Set function knob to the required operating mode. 3. Close the oven door The oven heats up to the adjusted temperature and maintains it. -
Page 15: Clock Programmer
User manual LAM3405 Clock Programmer To Check time left: Press mode button Minute Minder (0.01 min - 2.30hr) To Cancel: Press mode button x 1 time until Cook symbol is displayed. Touch the + or – buttons until alarm sounds and display shows 00.00. -
Page 16: Delayed Start Cooking
User manual LAM3405 Delayed Start Cooking The two timed cooking modes can be combined to create a delayed start cooking period. Programme a Timed Operation Period (as described on p14). Then Programme a Time Stop Point (as described on p14). -
Page 17: Cooking Table
LAMONA Appliances Cooking Tables The values indicated in the tables below are Baking and roasting indicative. They may vary according to the type of Level 1 is the lowest shelf level. food, the quantity and your preferences of cooking. Oven cooking table... -
Page 18: Cooking And Baking Advice
User manual LAM3405 Cooking and baking advice Tips for baking cake Risk of scalding by hot steam! Take care when If the cake is too dry, increase the temperature opening the oven door as steam may escape. by 10°C and decrease the cooking time. -
Page 19: Care And Maintenance
User manual LAM3405 Care and maintenance General inf ormation Cleaning the Oven Door Service life of the product will extend and the Don’t use any harsh abrasive cleaners or sharp possibility of problems will decrease if the product metal scrapers for cleaning the oven door. They is cleaned at regular intervals. -
Page 20: Replacing The Oven Lamp
LAMONA Appliances 4. To replace the glass follow this process in reverse Removing the Inner Door Glass ensuring the printed surface of the glass is facing downwards. The inner glass panel of the oven door can be removed for cleaning. -
Page 21: Installation
LAMONA Appliances Installation Before installation The appliance is intended for installation in Howdens kitchen cabinets. The product should only be installed by suitably Surfaces, synthetic laminates and adhesives used must be heat resistant. The product must be installed in accordance with all local regulations. -
Page 22: Electrical Connections
User manual LAM3405 Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your oven is intended for permanent installation. Your appliance must be connected to fixed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation. -
Page 23: Cooling Fan
LAMONA Appliances Your oven comes prefitted with a mains cable. Terminal If you need to change it: Neutral : Live: Brown 1. Open the terminal block cover with screwdriver. Earth: Green / 2. Pass the mains lead under the cable clamp and secure clamp with the screw over the outer cable insulation. -
Page 24: Technical Specification
User manual LAM3405 TECHNICAL INFORMATION General Voltage /Frequency 220-2 40 V ~ 50 Hz Total power consumption 1935 W - 2300 W Fuse min. 13A Oven/Grill External dimensions (height / width / depth) 595 mm/594 mm/567mm Installation dimensions (height / width / depth) 585-595 mm/560 mm/min. -
Page 25: Troubleshooting
LAMONA Appliances Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions Food is being cooked with a high It is normal that steam escapes from food during Oven emits steam when it water content is in use. cooking. This is not a fault. -
Page 26: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0845 00 60 006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 27 PRODUCT FICHE Energy Label Directive EU2010/30/EU-No65/2014 of ovens LAMONA Brand Model LAM3405 Energy Efficiency Index per cavity EEI cavity 93.1 Energy efficiency class Energy consumption (kWh)-Conventional per cycle (1) Energy consumption (kWh)-Forced air convection per cycle (1) 0.79 Usable volume (litres)
- Page 28 Product serial number (Place sticker here) ISSUE v8 250117 285.4454.03/R.AA/25.01.2017...
Need help?
Do you have a question about the LAM3405 and is the answer not in the manual?
Questions and answers
How do you fit the plastic bit at the top of the glass on the oven door
To fit the plastic part (top cap) at the top of the glass on the Lamona LAM3405 oven door, ensure the printed surface of the glass is facing downwards and the glass is fully located in the lower retaining slots before attempting to re-fit the top cap.
This answer is automatically generated
Why the oven will switch off the power source itself during the preheating process? Besides, the glass of the oven door is very hot and unable to touch.
The Lamona LAM3405 oven does not specifically mention switching off the power source during preheating. Therefore, the reason for this behavior is not provided.
The glass on the oven door becomes very hot because the inner glass is exposed to high cooking temperatures. Although the outer door is air-cooled, the inner glass still heats up during cooking, which is normal.
This answer is automatically generated
how to reset clock time
To reset the clock time on the Lamona LAM3405 oven:
1. Touch the "+" or "–" buttons until the display flashes.
2. Adjust the time using the "+" or "–" buttons.
3. Wait until the alarm sounds and the time of day returns.
4. Touch any button to stop the alarm and return the oven to manual mode.
The timer will sound for 2 minutes if no button is pressed.
This answer is automatically generated
