- Page 1 Built in Single Conventional Oven LAM3209 Instructions & Installation www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 User manual LAM3209 Dear Customer, Congratulations on your choice of oven. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the oven. • Always follow the safety instructions.
-
Page 4: Table Of Contents
LAMONA Appliances Index Before using the oven & Safety Cooking and baking advice General Cooking table Safety for children 05-08 Oven cooking table Safety when working with electricity Grill cooking table Safety and cleaning Care and maintenance General information General information... -
Page 5: General
User manual LAM3209 Before using the Oven • Make sure that you have removed all packaging, wrappings, stickers and fi lms from the oven’s surface. • It is recommended that you clean and wash the oven’s surface before using for the fi rst time. - Page 6 LAMONA Appliances • Accessible parts may • Do not operate the product become hot during use. To if it is defective or has any avoid burns, children less than visible damage. 8 years of age should be kept • Do not carry out any repairs away unless continuously or modfications to the product.
- Page 7 User manual LAM3209 • Do not heat closed tins and • Always use heat resistant glass jars in the oven. The oven gloves when putting pressure that would build-up in dishes in or removing dishes the tin/jar may cause it to from the hot oven.
-
Page 8: Safety When Working With Electricity
LAMONA Appliances • Make sure that the product • Keep all ventilation slots clear of obstructions, as this control knobs are switched off after every use. may cause premature failure of the oven element. Safety when working with • Do not allow the oven to electricity cool with the door open. -
Page 9: Shelf Positions
User manual LAM3209 Shelf positions The oven has 5 shelf positions. It is important to position the wire shelf into the runners correctly before placing items on the shelf. Do not insert shelves forcefully. Page _ 9 www.howdens.com... -
Page 10: General Information

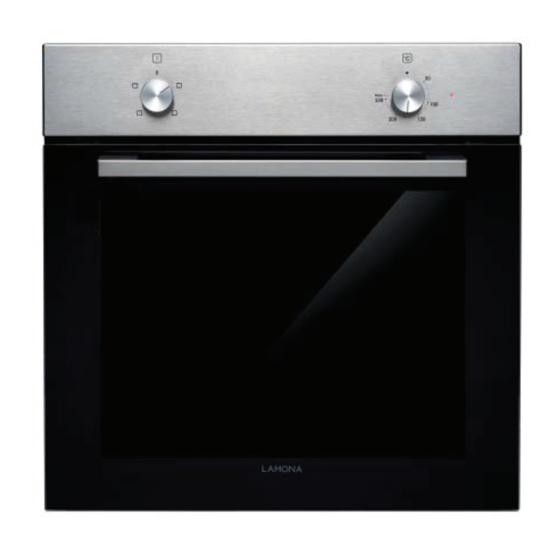

LAMONA Appliances General Information Oven layout Control panel Heating element Handle Light Oven Door Oven shelf positions Control panel layout °C Oven/ grill function knob Oven/grill temperature control knob 0ven / grill temperature indicator Accessories Oven tray / grill pan... -
Page 11: Operating Modes
User manual LAM3209 Operating modes Operating modes All functions for the ovens and grill are listed in this section. Please note* depending on the model of your oven, the number and order of operating modes available may deviate from the illustrations shown below. -
Page 12: Preparation
LAMONA Appliances Preparation First cleaning of the appliance Tips for saving energy Remove all packaging materials. The following information will help you to use your Wipe the surfaces of the appliance with a appliance in an ecological way, and to save energy:... -
Page 13: How To Operate The Main Oven
User manual LAM3209 How to operate the main oven and grill Select temperature Shelf positions & Operating mode The oven has 5 shelf positions. It is important to position the wire shelf into the runners correctly before placing items on the shelf. Do not insert °C... -
Page 14: Cooking And Baking Advice
LAMONA Appliances Cooking and baking advice Tips for baking cake Risk of scalding by hot steam! Take care when • If the cake is too dry, increase the temperature opening the oven door as steam may escape. by 10°C and decrease the cooking time. -
Page 15: Cooking Table
User manual LAM3209 Cooking Tables The values indicated in the tables below are Baking and roasting indicative. They may vary according to the type of Level 1 is the lowest shelf position in the oven. food as well as your preferences of cooking. -
Page 16: Grill Cooking Table
LAMONA Appliances Grill cooking table GRILL COOKING TABLE Food Shelf level Oven Function Cooking Time (min) Fish 4-5 Level 20 - 25 Sliced chicken 4-5 Level 25 - 30 Lamb chops 4-5 Level 20 - 25 Steak 4-5 level 25 - 30... -
Page 17: Care And Maintenance
User manual LAM3209 Care and maintenance General information Cleaning oven door Service life of the product will extend and the Don’t use any harsh abrasive cleaners or sharp possibility of problems will decrease if the product is metal scrapers for cleaning the oven door. They cleaned at regular intervals. -
Page 18: Removing The Inner Door Glass
LAMONA Appliances Removing the inner door glass The inner glass panel of the oven door can be The inner glass can then be lifted from its removed for cleaning. retaining slots. When cleaning, avoid the use any harsh abrasive chemicals or sharp metal scrapers for as this could scratch the surface and damage the glass. -
Page 19: Replacing The Oven Lamp
User manual LAM3209 Replacing the oven lamp Hot surfaces may cause burns! Make sure that the appliance is switched off and cooled down in order to avoid the risk of an electrical shock or burns. The oven lamp is a special electric lamp that can resist up to 300°C. -
Page 20: Installation
LAMONA Appliances Installation Before installation Howdens kitchen cabinets. • Surfaces, synthetic laminates and adhesives The product should only be installed by suitably used must be heat resistant. qualifi ed persons. • Kitchen cabinets must be set level and fi xed. -
Page 21: Electrical Connection
User manual LAM3209 Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your oven is intended for permanent installation. Your appliance must be connected to fi xed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation. -
Page 22: Cooling Fan
LAMONA Appliances Your oven comes prefi tted with a mains cable. If you need to change it: Open the terminal block cover with screwdriver. Pass the mains lead under the cable clamp and secure clamp with the screw over the outer cable insulation Connect the cables according to the supplied diagram. -
Page 23: Technical Specifi Cation
User manual LAM3209 Technical specification TECHNICAL INFORMATION General Voltage /Frequency 220-240 V ~ 50 Hz Total power consumption 2020 - 2400 W min. 13A Fuse Cable Length max. 2m (1.4m Prefi tted) Cable type / section HO5VV-F 1.5mm², 3 core or equivalent... -
Page 24: Troubleshooting
LAMONA Appliances Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions Oven emits steam when it • Food is being cooked with a high It is normal that steam escapes from food during cooking. is in use. water content This is not a fault. -
Page 25: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0845 00 60 006 * Product installed within a domestic kitchen or non-domestic kitchen where 8 or fewer people are using the appliance. - Page 26 PRODUCT FICHE Energy Label Directive EU2010/30/EU-No65/2014 of ovens LAMONA Brand Model LAM3209 Energy Efficiency Index per cavity EEI cavity 103.7 Energy efficiency class Energy consumption (kWh)-Conventional per cycle (1) 0.88 Energy consumption (kWh)-Forced air convection per cycle (1) Usable volume (litres)
