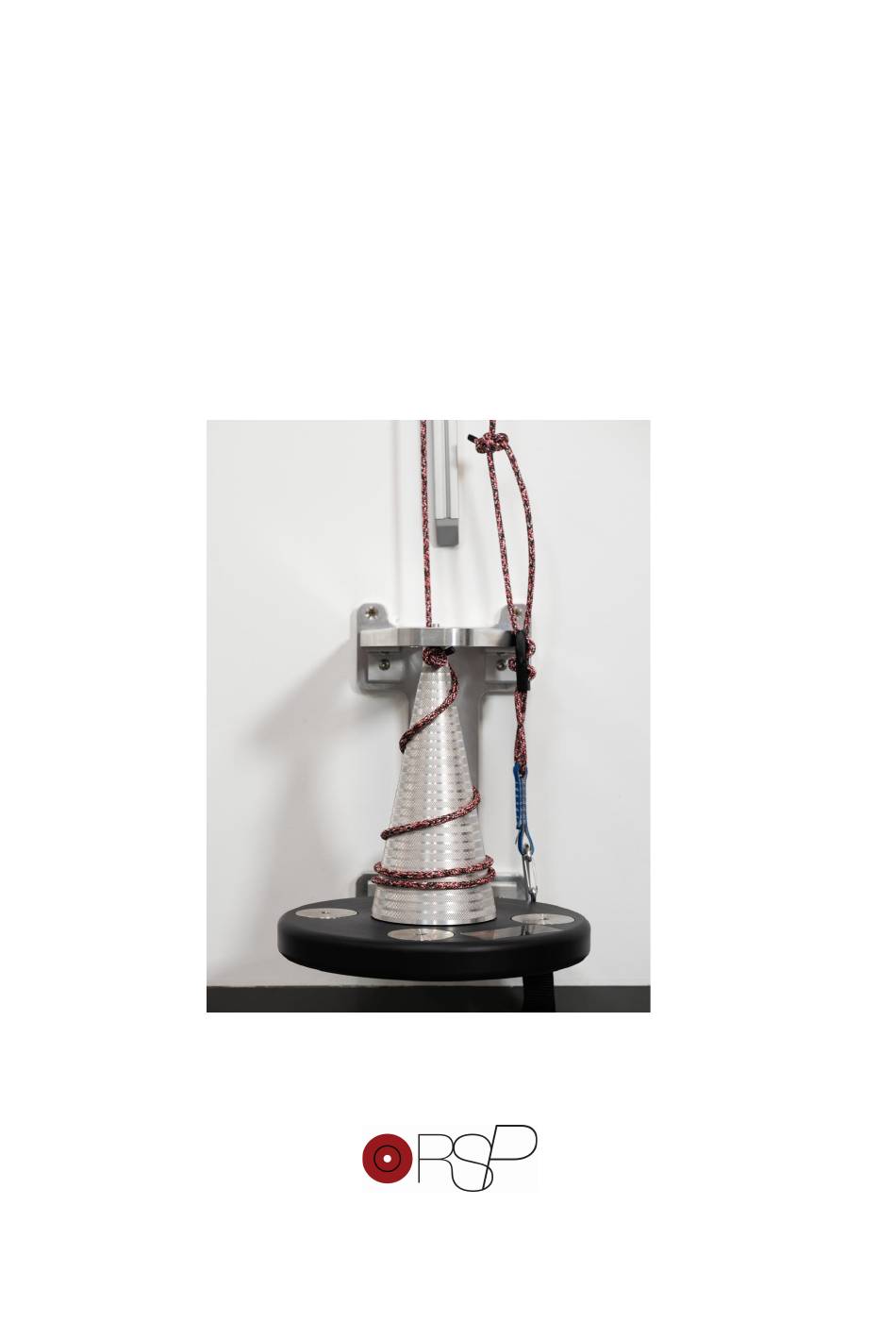

- Page 1 Installation and User Instructions RSP CONIC PRO MADE IN SPAIN Inercial Performance S.L. www.einercial.com...
-
Page 2: Table Of Contents
Table of Contents Introduction........................3 Standard equipment.....................3 Installation........................4-6 Adjusting The Handle Position..................6 Adding Weights to the Flywheel................7-8 How to move the rail.....................8 Different angles to pull the rope...................8 Technical Specifications....................9 Accessories…..……......................9 Use.....…..……......................10 Maintenance........................10 Replacing the Rope.......................11 Warranty…..………......................11... -
Page 3: Introduction
INTRODUCTION The RSP Conic Pro is our machine designed to train the directional changes and senses of direction with intensity. Our conical axis with a large ratio between the minimum and maximum diameter generates high accelerations in the concentric phase which we then have to manage and brake at the... - Page 4 INSTALATION Parts of the machine. rail 120 cm wall outlet block hook screw chassis screw conical axis rail masses rail block screw flywheel...
-
Page 5: Installation
Place de Machine. RSP CONIC PRO. Instalation 0.20 cm 0,41 cm 0.10 cm 0,62 cm Place de machine as close as possible to the ground, if you have baseboards will be placed above it. The rail of 120 cm is placed centered with the machine and 20 cm of it. -
Page 6: Adjusting The Handle Position
The most important technical features of our RSP Conic Pro, how you can assembly it, how the rope is adjusted and how the pulleys and the rope are changed. We also explain how to improve it and give you some useful tips. -
Page 7: Adding Weights To The Flywheel
Press the bottom up to remove the masses without mass How to place the masses Place the mass right Press up and down Until it is in line with the flywheel The RSP conic flywheel comes with four masses to modify the force/speed parameters. -
Page 8: How To Move The Rail
The flywheel has four locations to add or delete steel weights in opposite pairs. Placement masses: without masses 2 masses 4 masess IMPORTANT: FLYWHEEL WEIGHTS MUST BE ADDED OR DELETED IN PAIRS AND IN DIRECTLY OPPOSITE LOCATIONS HOW TO MOVE THE RAIL 2º... -
Page 9: Technical Specifications
2 masses 4 masses 722,83 Kg/cm² 910,76 kg/cm² 1238,33Kg/cm² ACCESORIES -RSP Encoder. -Harken Fly pulleys (highest quality of shooting on the market). -Long carbon bar. -Short carbon bar. -Adaptor for Chronojump encoder. -Foldable floor eyebolt. -Portability kit. Spare parts:... -
Page 10: Use
It is important to keep the unattended children away from the machine. The blocks and the ropes are elements of wear by the use of the machine. RSP recommends the use of his blocks and ropes to guarantee the ideal functioning of the machines. -
Page 11: Replacing The Rope
WARRANTY 1. Inercial Performance, S.L. warrants to the purchaser that RSP conic is free of defects in materials and workmanship under normal use and maintenance, has a limited warranty of 2 years from the date of purchase, subject to the terms and conditions that marks the Spanish law,... - Page 12 RSP CONIC PRO is manufactured in Spain. www.einercial.com Inercial Performance S.L. Avd. Val Miñor, 46 1ºC 36350 Nigrán (Pontevedra) Telf + 34 659910685 Spain...
