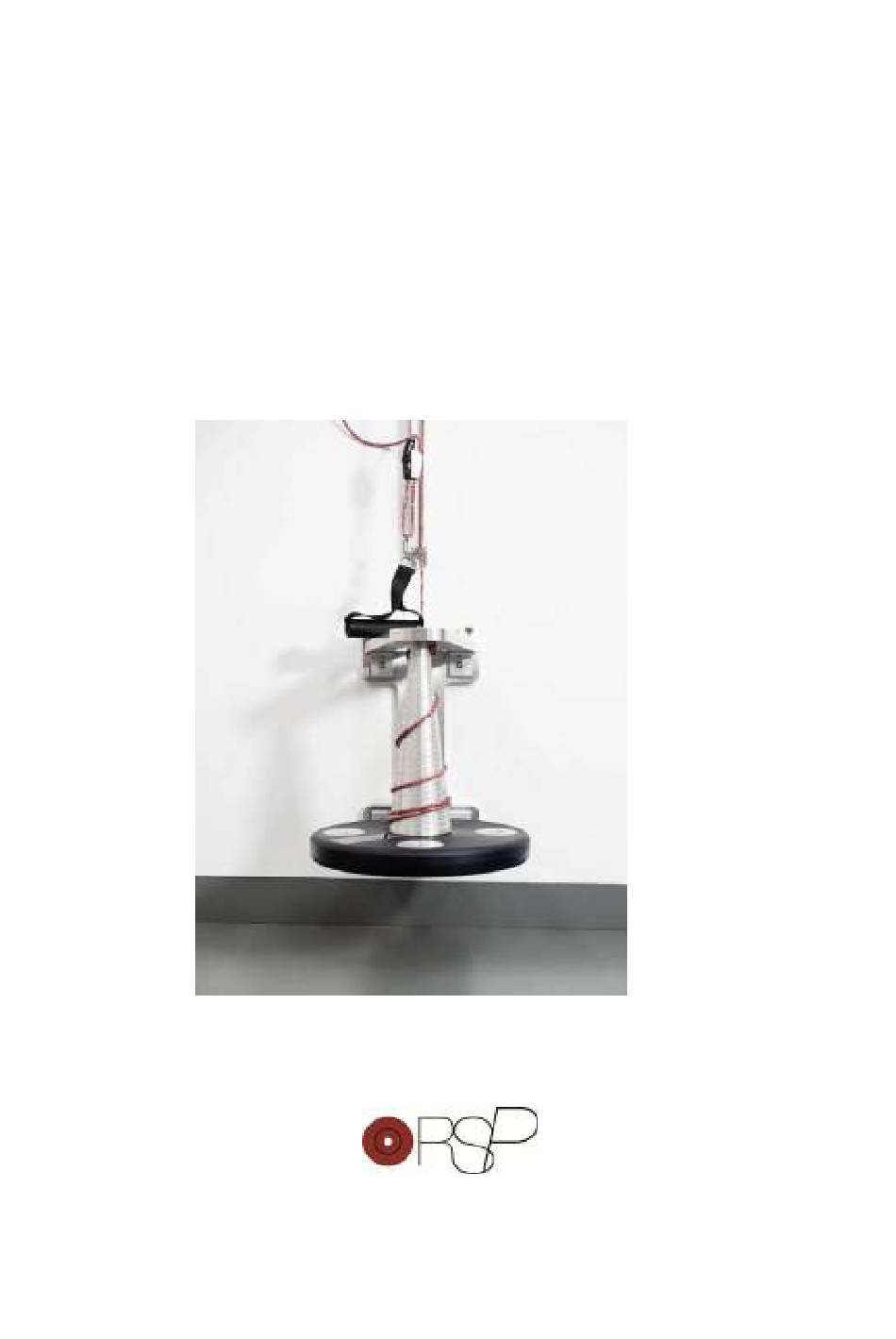

- Page 1 Installation and User Instructions RSP CONIC MADE IN SPAIN Inercial Performance S.L. www.einercial.com...
-
Page 2: Table Of Contents
Table of Contents Introduction........................3 Standard equipment.....................3 Installation........................4-6 Adjusting The Handle Position..................6 Adding Weights to the Flywheel................7-8 How to move the rail.....................8 Different angles to pull the rope...................9 Technical Specifications....................9 Accessories…..……......................10 Use.....…..……......................10 Maintenance........................11 Replacing the Rope.......................11 Warranty…..………......................11... -
Page 3: Introduction
The moment of inertia is adjusted through the different masses integrated within the disk. There are three possible positions. STANDARD EQUIPMENT -RSP Conic chassis - 120cm wall rail for height adjustment of the output pulley - Ground anchorage eyebolt for vertical shooting - 4 aluminium masses -Carbo Harken pulley 40mm Ø... -
Page 4: Installation
INSTALATION Parts of the machine. rail 120 cm outlet block handle screw chassis screw conical axis screw rail rail block masses screw flywheel... - Page 5 Place de Machine. 1 cm 20 cm 0,72 cm 10 cm The surface where the machine is placed must be installed on a stable and level base. Place de machine as close as possible to the ground, if you have baseboards will be placed above it.
- Page 6 Set the machine to the wall output ground.* output ground.* 8 mm Ø 10 mm Ø * This ringbolt mounting (optional) is used to derive the output block to the ground. Make four holes in the wall to the height indicated, first insert the plugs and screw the four screws into the wall.
-
Page 7: Adjusting The Handle Position
The most important technical features of our RSP Conic, how you can assembly it, how the rope is adjusted and how the pulleys and the rope are changed. We also explain how to improve it and give you some useful tips. -
Page 8: How To Move The Rail
Press up and down Until it is in line with the flywheel The RSP conic flywheel comes with four masses to modify the force/speed parameters. The flywheel has four locations to add or delete steel weights in opposite pairs. Placement... -
Page 9: Different Angles To Pull The Rope
DIFFERENT ANGLES TO PULL THE ROPE Wall outlet block. Output pulley from the ground. Output of the cone. TECHNICAL SPECIFICATIONS - Designed for precise upper and lower body movements. - Adjusting the acceleration through the axis radius. - Adjustment of the moment of inertia through the masses integrated in the disc, each mass represents 10% of the moment of inertia. -
Page 10: Accessories
It is important to keep the unattended children away from the machine. The blocks and the ropes are elements of wear by the use of the machine. RSP recommends the use of his blocks and ropes to guarantee the ideal functioning of the machines. -
Page 11: Maintenance
WARRANTY 1. Inercial Performance, S.L. warrants to the purchaser that RSP conic is free of defects in materials and workmanship under normal use and maintenance, has a limited warranty of 2 years from the date of purchase, subject to the terms and conditions that marks the Spanish law,... - Page 12 RSP CONIC is manufactured in Spain. www.einercial.com Inercial Performance S.L. Avd. Val Miñor, 46 1ºC 36350 Nigrán (Pontevedra) Telf + 34 659910685 Spain...
