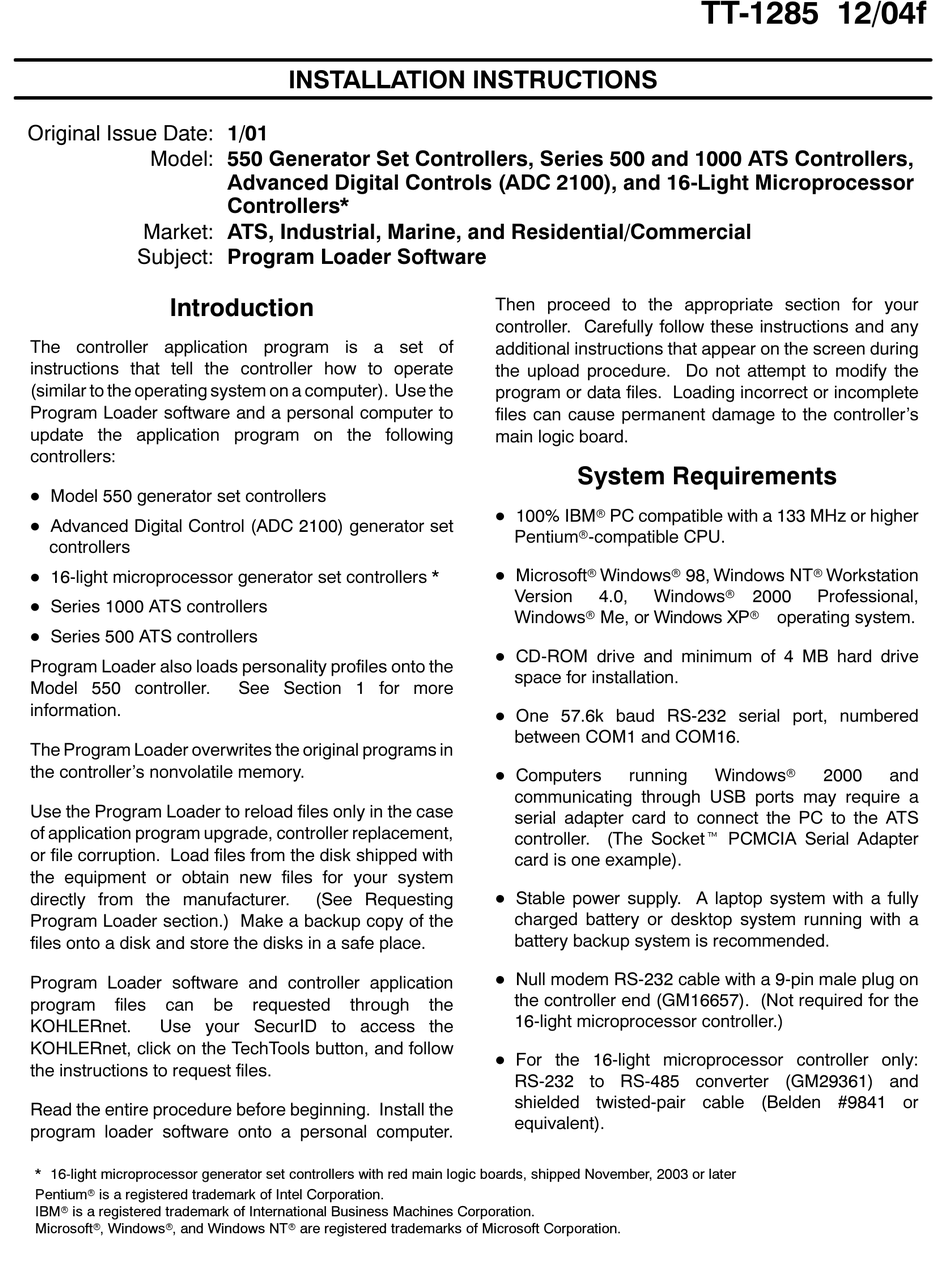

Original Issue Date: 1/01
Model: 550 Generator Set Controllers, Series 500 and 1000 ATS Controllers,
Market: ATS, Industrial, Marine, and Residential/Commercial
Subject: Program Loader Software
Introduction
The controller application program is a set of
instructions that tell the controller how to operate
(similar to the operating system on a computer). Use the
Program Loader software and a personal computer to
update the application program on the following
controllers:
D
Model 550 generator set controllers
D
Advanced Digital Control (ADC 2100) generator set
controllers
D
16-light microprocessor generator set controllers *
D
Series 1000 ATS controllers
D
Series 500 ATS controllers
Program Loader also loads personality profiles onto the
Model 550 controller.
information.
The Program Loader overwrites the original programs in
the controller's nonvolatile memory.
Use the Program Loader to reload files only in the case
of application program upgrade, controller replacement,
or file corruption. Load files from the disk shipped with
the equipment or obtain new files for your system
directly from the manufacturer.
Program Loader section.) Make a backup copy of the
files onto a disk and store the disks in a safe place.
Program Loader software and controller application
program
files
can
KOHLERnet.
Use your SecurID to access the
KOHLERnet, click on the TechTools button, and follow
the instructions to request files.
Read the entire procedure before beginning. Install the
program loader software onto a personal computer.
* 16-light microprocessor generator set controllers with red main logic boards, shipped November, 2003 or later
Pentiumr is a registered trademark of Intel Corporation.
IBMr is a registered trademark of International Business Machines Corporation.
Microsoftr, Windowsr, and Windows NTr are registered trademarks of Microsoft Corporation.
INSTALLATION INSTRUCTIONS
Advanced Digital Controls (ADC 2100), and 16-Light Microprocessor
Controllers*
See Section 1 for more
(See Requesting
be
requested
through
Then proceed to the appropriate section for your
controller. Carefully follow these instructions and any
additional instructions that appear on the screen during
the upload procedure. Do not attempt to modify the
program or data files. Loading incorrect or incomplete
files can cause permanent damage to the controller's
main logic board.
System Requirements
D
100% IBMr PC compatible with a 133 MHz or higher
Pentiumr-compatible CPU.
D
Microsoftr Windowsr 98, Windows NTr Workstation
Version
4.0,
Windowsr Me, or Windows XPr operating system.
D
CD-ROM drive and minimum of 4 MB hard drive
space for installation.
D
One 57.6k baud RS-232 serial port, numbered
between COM1 and COM16.
D
Computers
communicating through USB ports may require a
serial adapter card to connect the PC to the ATS
controller. (The Sockett PCMCIA Serial Adapter
card is one example).
D
Stable power supply. A laptop system with a fully
charged battery or desktop system running with a
battery backup system is recommended.
D
Null modem RS-232 cable with a 9-pin male plug on
the controller end (GM16657). (Not required for the
the
16-light microprocessor controller.)
D
For the 16-light microprocessor controller only:
RS-232 to RS-485 converter (GM29361) and
shielded twisted-pair cable (Belden #9841 or
equivalent).
TT-1285 12/04f
Windowsr 2000
running
Windowsr
Professional,
2000
and
