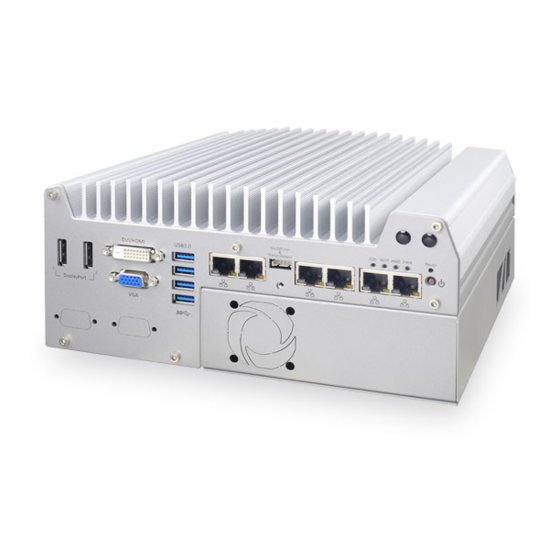

Intel 6th-gen core i7/15/13 fanless controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Nuvo-5000 Series User's Manual
Neousys Technology Inc.
Nuvo-5000 Series
®
th
Intel
6
-Gen Core™ i7/i5/i3 Fanless Controller
Nuvo-5002E, Nuvo-5006E
Nuvo-5002P, Nuvo-5006P
Nuvo-5002LP, Nuvo-5006LP
Nuvo-5006E-PoE, Nuvo-5006P-PoE, Nuvo-5006LP-PoE
Nuvo-5026E, Nuvo-5026E-PoE
User's Manual
Rev. A3
Copyright © 2016 Neousys Technology Inc. All Right Reserved.
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nuvo-5026E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Neousys Technology Nuvo-5026E

Summary of Contents for Neousys Technology Nuvo-5026E

  • Page 1 Nuvo-5000 Series User’s Manual Neousys Technology Inc. Nuvo-5000 Series ® Intel -Gen Core™ i7/i5/i3 Fanless Controller Nuvo-5002E, Nuvo-5006E Nuvo-5002P, Nuvo-5006P Nuvo-5002LP, Nuvo-5006LP Nuvo-5006E-PoE, Nuvo-5006P-PoE, Nuvo-5006LP-PoE Nuvo-5026E, Nuvo-5026E-PoE User’s Manual Rev. A3 Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 1 -...
  • Page 2 Nuvo-5000 Series User’s Manual Revision History Date Change List Version May. 2016 Initial release Feb. 2018 Added Nuvo-5026E/ Nuvo-5026E-PoE Feb. 2019 Updated 5/12VDC power wafer pitch specifications (P.45 / P.46) Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 2 -...

  • Page 3: Table Of Contents

    1.2.1 Specification of Nuvo-5002E/P and Nuvo-5006E/P ......... - 9 - 1.2.2 Specification of Nuvo-5002LP and Nuvo-5006LP ........- 11 - 1.2.3 Specification of Nuvo-5006E-PoE/5006P-PoE/5006LP-PoE ....- 13 - 1.2.4 Specification of Nuvo-5026E/ Nuvo-5026E-PoE ........- 15 - 1.3 List of Supported CPU ..................- 17 - Chapter 2 Getting to Know your Nuvo-5000 ............
  • Page 4 2.7.7 Side View of Nuvo-5000LP Series ............- 54 - 2.7.8 Bottom View of Nuvo-5000LP Series ............. - 54 - 2.7.9 Top View of Nuvo-5026E/ Nuvo-5026E-PoE ......... - 55 - 2.7.10 Front View of Nuvo-5026E/ Nuvo-5026E-PoE ........- 56 - 2.7.11 Rear View of Nuvo-5026E/ Nuvo-5026E-PoE ........
  • Page 5 Step 5 - Install Windows 7 using USB flash drive installer ......- 119 - Appendix B Using Watchdog Timer ................- 120 - Install WDT_DIO Library ..................- 120 - Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 5 -...
  • Page 6 WDT Function Reference ..................- 123 - Appendix C Using Per-Port PoE On/Off Control ............- 126 - Per-Port PoE On/Off Control Function Reference ..........- 126 - Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 6 -...

  • Page 7: Declaimer

    This manual is intended to be used as a practical and informative guide only and is subject to change without prior notice. It does not represent commitment from Neousys Technology Inc. Neousys shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of the product or documentation, nor for any infringements upon the rights of third parties, which may result from such use.

  • Page 8: Chapter 1 Introduction

    Latest Intel® CPU, Cassette and MezIO creates a powerful controller with numerous I/O configuration. Nuvo-5000 is the one platform for all applications! Nuvo-5000E/P Series Nuvo-5000LP Series * R.O.C. Patent No. M456527 Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 8 -...

  • Page 9: Product Specification

    1x full-size mSATA port (mux with mini-PCIe) Expansion Bus 1x PCI slot in Cassette (Nuvo-5002P/5006P) PCI/PCI Express 1x PCIe x16 slot @ Gen3, 8-lanes signals in Cassette (Nuvo-5002E/5006E) Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 9 -...
  • Page 10 Users can configure CPU power in BIOS to obtain higher operating temperature. For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 10 -...

  • Page 11: Specification Of Nuvo-5002Lp And Nuvo-5006Lp

    1x internal mini PCI Express socket with internal SIM socket (mux with mSATA) Expandable I/O 1x MezIO expansion port for Neousys’ MezIO modules Power Supply & Ignition Control DC Input 1x 3-pin pluggable terminal block for 8~35V DC input Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 11 -...
  • Page 12 Users can configure CPU power in BIOS to obtain higher operating temperature. For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 12 -...

  • Page 13: Specification Of Nuvo-5006E-Poe/5006P-Poe/5006Lp-Poe

    1x PCIe x16 slot @ Gen3, 8-lanes PCIE signals in Cassette (Nuvo-5006E-PoE) 1x internal mini PCI Express socket with panel-accessible SIM socket Mini PCI-E 1x internal mini PCI Express socket with internal SIM socket (mux with mSATA) Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 13 -...
  • Page 14 Users can configure CPU power in BIOS to obtain higher operating temperature. For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 14 -...

  • Page 15: Specification Of Nuvo-5026E/ Nuvo-5026E-Poe

    1x internal mini PCI Express socket with front-accessible SIM socket Mini PCI-E 1x internal mini PCI Express socket with internal SIM socket (mux with mSATA) Expandable I/O 1x MezIO™ expansion port for Neousys’ MezIO™ modules Power Supply Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 15 -...
  • Page 16 Users can configure CPU power in BIOS to obtain higher operating temperature. ** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 16 -...

  • Page 17: List Of Supported Cpu

     Intel® Celeron® Processor G3900 (2M Cache, 2.80 GHz, 51W TDP)* ® The processors with * are listed in Intel Embedded Roadmap and with a 7-year life cycle support (2015~2021). Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 17 -...

  • Page 18: Chapter 2 Getting To Know Your Nuvo-5000

    When you receive the package of Nuvo-5000 series, please check immediately if the package contains all the items listed in the following table. If any item is missing or damaged, please contact your local dealer or Neousys Technology Inc. for further assistance.
  • Page 19 Foot pad  3-pin power terminal block  HDD thermal pad for 2.5” HDD/SSD (if HDD is not installed)  Screw pack  Fan (40X40X10 mm)  Rubber spacer Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 19 -...

  • Page 20: Front Panel I/O Functions

    5 seconds to compulsorily shut down the system. Please note that a 5 seconds interval is kept by the system between two on/off operations (i.e. once turning off the system, you shall wait for 5 seconds to initiate another power-on operation). Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 20 -...

  • Page 21: Reset Button

    Hard drive indicator, flashing when SATA hard drive is active. Yellow Watchdog timer indicator, flashing when watchdog timer is started. If ignition option (MezIO-V20) is applied, this LED is used to indicate Orange ignition signal status. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 21 -...

  • Page 22: Gigabit Ethernet Port

    To utilize the GbE port in Windows, you need to install corresponding driver for Intel I210-IT/I219-LM GbE controller. Please refer to section 4.5 for information of driver installation. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 22 -...

  • Page 23: Remote On/Off Control And Status Led Output

    [Output] Watchdog timer indicator, flashing when watchdog timer is started. WDT- Note Please make sure the polarity is correct when you connect the external LED indicator to the Status LED Output. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 23 -...

  • Page 24: Usb 3.0 Connectors

    USB keyboard/mouse not working when installing Windows 7. Neousys offers a Windows-based batch file and step-by-step guide to help you. Please refer to Appendix A for information of installing Windows 7 on Nuvo-5000 series. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 24 -...

  • Page 25: Dvi/Hdmi Connectors

    DVI/HDMI and DisplayPort. To support multiple display outputs and achieve best DVI/HDMI output resolution in Windows, you need to install corresponding graphics driver. Please refer to section 4.5 for information of driver installation. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 25 -...

  • Page 26: Vga Connector

    Please make sure your VGA cable includes SDA and SCL (DDC clock and data) signals for correct communication with monitor to get resolution/timing information. A cable without SDA/SCL can cause blank screen on your VGA monitor due to incorrect resolution/timing output. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 26 -...

  • Page 27: Displayport

    DVI/HDMI and DisplayPort. To support multiple display outputs and achieve best DVI/HDMI output resolution in Windows, you need to install corresponding graphics driver. Please refer to section 4.5 for information of driver installation. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 27 -...

  • Page 28: Back Panel I/O Functions

    MezIO-V20 ignition control module is installed for in-vehicle applications. Caution Please make sure the voltage of DC power is correct before you connect it to Nuvo-5000 controller. Supplying a voltage over 35V will damage the system. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 28 -...

  • Page 29: Com Ports (Com1 / Com2 / Com3)

    COM ports. COM1 / COM3 COM2 RS-485 Mode Pin# RS-232 Mode RS-422 Mode RS-232 Mode (Two-wire 485) 422 TXD+ 485 TXD+/RXD+ 422 RXD+ 422 RXD- 422 TXD- 485 TXD-/RXD- Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 29 -...

  • Page 30: Usb2.0 Connectors

    Windows, you need to install corresponding drivers for both Intel Q170 chipset and Realtek ALC262 codec. Please refer to section 4.5 for information of driver installation. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 30 -...

  • Page 31: Mezio I/O Connector

    SIM card to the end to install it, and push the installed SIM card again to eject it. Please note that SIM card must be inserted upside down. You can refer to section 3.5 for information of installing a 3G/4G module and SIM card. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 31 -...

  • Page 32: Internal I/O Functions

    It supports maximal 32GB capacity by installing two 16GB DDR4 2133 MHz SODIMM modules. For information of installing DDR4 memory modules, please refer to section 3.3 for details. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 32 -...

  • Page 33: Msata / Mini-Pcie #1 Dual-Mode Socket

    Internet in wide territory through telecom 3G/4G network. For WIFI/3G/4G communication, Nuvo-5000 series provides multiple SMA antenna apertures on the front and back panel for multi-antenna configuration. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 33 -...
  • Page 34 Please make sure your 4G module has the correct pin definition or consult Neousys for the compatibility. Installing an incompatible 4G module may damage the system or the module itself may be damaged. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 34 -...

  • Page 35: Mini-Pcie #2 Socket

    You can also install a 3G/4G module and SIM card to access Internet in wide territory through telecom 3G/4G network. For WIFI/3G/4G communication, Nuvo-5000 provides multiple SMA antenna apertures on the front and back panel for multi-antenna configuration. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 35 -...
  • Page 36 Please make sure your 4G module has the correct pin definition or consult Neousys for the compatibility. Installing an incompatible 4G module may damage the system or the module itself may be damaged. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 36 -...

  • Page 37: Internal Sata Port #1

    HDD tray so you can easily install and remove a 2.5” HDD/SSD. For information of installing a HDD/SSD to SATA port #1, please refer to section 3.4 for detail. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 37 -...

  • Page 38: Internal Sata Port #2

    2.5” HDD/SSD. A dedicated cable is shipped with the system to provide standard 22-pin SATA connector. For information of installing a HDD/SSD to SATA port #2, please refer to section 3.4 for detail. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 38 -...

  • Page 39: Internal Usb Port

    Nuvo-5000 series provides one additional USB port internally on the PCBA. It supports standard USB 2.0 signals. You can utilize this USB port to connect a USB protection dongle inside the chassis of Nuvo-5000 controller. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 39 -...

  • Page 40: Mezio Tm Interface

    The receptacle part on the PCBA is FCI 61082-063402LF while the plug part on the MezIO module is FCI 61083-064402LF. Please refer to the following table for signal definition of its 60-pos connector. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 40 -...
  • Page 41 PCH GPIO GPIO_RISER1 TXD5 SIO COM5 Ground Ground 3.3V power P3V3 P1V8 1.8V power 3.3V power P3V3 Ground 5V power P12V 12V power 5V power P12V 12V power Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 41 -...

  • Page 42: Mezio Module For Nuvo-5000 Series

    Product Photo 4-port RS-232/422/485 and 4-port MezIO-C180-50 RS-232 MezIO module 4-port RS-232/422/485 and 4-port MezIO-C181-50 RS-422/485 MezIO module 8-CH isolated DI and 8-CH isolated DO MezIO-D220-50 MezIO module Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 42 -...
  • Page 43 Nuvo-5000 Series User’s Manual 16-CH isolated DI and 16-CH isolated MezIO-D230-50 DO MezIO module 16-mode ignition power control MezIO MezIO-V20 module (Nuvo-5000LP only) Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 43 -...

  • Page 44: Expansion Cassette

    Nuvo-5006E/5002E contains a Cassette with PCI Express slot, Nuvo-5006P/5002P contains a Cassette with PCI slot and Nuvo-5026E contains a Cassette that has dual x8 PCI Express slots, each with x4 PCI Express signal. If users want to use an add-on card...

  • Page 45: Cassette Of Nuvo-5006E/5002E

    12VDC Fan Power (2A rated Current) SATA Signal Standard 7-pin SATA connector 4-pin, 2.5mm pitch wafer connector for supplying 5/12VDC Description 5/12VDC Power (2A rated Current) (2A rated Current) Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 45 -...

  • Page 46: Cassette Of Nuvo-5006P/5002P

    12VDC Fan Power (2A rated Current) SATA Signal Standard 7-pin SATA connector 4-pin, 2.5mm pitch wafer connector for supplying 5/12VDC Description 5/12VDC Power (2A rated Current) (2A rated Current) Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 46 -...

  • Page 47: Cassette Of Nuvo-5026E/ Nuvo-5026E-Poe

    Nuvo-5000 Series User’s Manual 2.6.3 Cassette of Nuvo-5026E/ Nuvo-5026E-PoE The expansion Cassette of Nuvo-5026E series contains a backplane with two x8 PCI Express slot connectors with x4 PCI Express signal. It supports 7.5A@12V rated current for two PCIe slots. (60 watts Max. power consumption for PCIe slot when paired with a 65W CPU or 90 watts Max.

  • Page 48: Neousys Cassette Module

    Cassette module with PCIe-PoE354at CSM-PoE354 and pre-installed passive heat-spreader Cassette module with PCIe-USB380 and CSM-USB380 pre-installed passive heat-spreader Cassette module with nVidia GTX-750 CSM-NV750 graphics card, pre-installed heat-spreader and fan Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 48 -...

  • Page 49: Fan In Cassette Enclosure

    When an add-on card with high power consumption (e.g. PCIe graphics card) installed in Cassette, you need to consider the thermal dissipation. Neousys offers a fan (optional accessory for Nuvo-5000 series, standard for Nuvo-5026E series) as a general solution for versatile add-on cards, to create active air flow and maintain proper temperature inside Cassette.

  • Page 50: Mechanical Dimension

    Nuvo-5000 Series User’s Manual 2.7 Mechanical Dimension 2.7.1 Top View of Nuvo-5000E/5000P Series Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 50 -...

  • Page 51: Front View Of Nuvo-5000E/5000P Series

    Nuvo-5000 Series User’s Manual 2.7.2 Front View of Nuvo-5000E/5000P Series 2.7.3 Side View of Nuvo-5000E/5000P Series Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 51 -...

  • Page 52: Bottom View Of Nuvo-5000E/5000P Series

    Nuvo-5000 Series User’s Manual 2.7.4 Bottom View of Nuvo-5000E/5000P Series Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 52 -...

  • Page 53: Top View Of Nuvo-5000Lp Series

    Nuvo-5000 Series User’s Manual 2.7.5 Top View of Nuvo-5000LP Series 2.7.6 Front View of Nuvo-5000LP Series Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 53 -...

  • Page 54: Side View Of Nuvo-5000Lp Series

    Nuvo-5000 Series User’s Manual 2.7.7 Side View of Nuvo-5000LP Series 2.7.8 Bottom View of Nuvo-5000LP Series Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 54 -...

  • Page 55: Top View Of Nuvo-5026E/ Nuvo-5026E-Poe

    Nuvo-5000 Series User’s Manual 2.7.9 Top View of Nuvo-5026E/ Nuvo-5026E-PoE Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 55 -...

  • Page 56: Front View Of Nuvo-5026E/ Nuvo-5026E-Poe

    Nuvo-5000 Series User’s Manual 2.7.10 Front View of Nuvo-5026E/ Nuvo-5026E-PoE 2.7.11 Rear View of Nuvo-5026E/ Nuvo-5026E-PoE Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 56 -...

  • Page 57: Side View Of Nuvo-5026E/ Nuvo-5026E-Poe

    Nuvo-5000 Series User’s Manual 2.7.12 Side View of Nuvo-5026E/ Nuvo-5026E-PoE 2.7.13 Bottom View of Nuvo-5026E/ Nuvo-5026E-PoE Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 57 -...

  • Page 58: Chapter 3 Getting Start

    Nuvo-5000 controller. 3.1.1 Disassemble Nuvo-5000E/P Series Put the Nuvo-5000E/P controller upside down on a flat surface. Unscrew four M3 flat-head screws and detach Cassette by pulling it up. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 58 -...
  • Page 59 And remove both front panel and back panel. (another 7 hex bolts on the opposite side) Remove the bottom cover of Nuvo-5000E/P controller. You can see the PCBA exposed. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 59 -...

  • Page 60: Disassemble Nuvo-5000Lp Series

    (another 6 hex bolts on the opposite side) Remove the bottom cover of Nuvo-5000LP controller and the SATA cable attached to the hot-swappable HDD tray. You can see the PCBA exposed. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 60 -...

  • Page 61: Install And Replace Lga1151 Cpu

    For Nuvo-5000 series Rev. A1, please refer to section 3.2.2 and 3.2.3 for instructions of installing/replacing CPU. For Nuvo-5000 series Rev. A2, please refer to section 3.2.4 and 3.2.5 for instructions of installing/replacing CPU. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 61 -...

  • Page 62: Install A Cpu On Nuvo-5000 Rev. A1

    Place the PCBA on a flat surface. Remove the plastic protective cover from the LGA1151 socket. Caution When the protective cover is removed and LGA1151 socket is exposed, please carefully handle the PCBA to avoid any damage on LGA socket. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 62 -...
  • Page 63 Get the CPU retaining bracket from the accessory box. Place it on the top of CPU and secure it to the PCBA using two M3 P-head screws. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 63 -...
  • Page 64 Put the PCBA back to heat-sink. Make sure all the screw holes on PCBA are aligned with mounting posts of the heat-sink. Get five M3 spring screws from the accessory box. Fix them according to the order Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 64 -...
  • Page 65 Nuvo-5000 Series User’s Manual indicated on the photo (red circles). And tighten four M3 P-head screws (yellow circles) to fix the PCBA to the heat-sink. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 65 -...

  • Page 66: Replace The Cpu On Nuvo-5000 Rev. A1

    M3 P-head screws (yellow circles). Hold the heat-sink firmly and gently push the PCBA forward and backward till you feel the CPU is detached from the thermal pad on the heat-sink. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 66 -...
  • Page 67 M3 P-head screws to remove the CPU retaining bracket. And carefully pick up the CPU. Caution When the original CPU is removed and LGA1151 socket is exposed, please carefully handle the PCBA to avoid any damage on LGA socket. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 67 -...
  • Page 68 CPU. If it’s broken, please replace it with a new one. Follow steps described in step 3 to step 7 in section 3.2.2 to install a new CPU to your Nuvo-5000 controller. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 68 -...

  • Page 69: Install A Cpu On Nuvo-5000 Rev. A2

    Place the PCBA on a flat surface. Remove the plastic protective cover from the LGA1151 socket. Caution When the protective cover is removed and LGA1151 socket is exposed, please carefully handle the PCBA to avoid any damage on LGA socket. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 69 -...
  • Page 70 On Nuvo-5000 Rev. A2, the CPU retaining bracket must be screwed from the opposite side. Please hold the CPU and bracket firmly while turning the PCBA upside down, and secure the CPU retaining bracket with two M3 P-head screws. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 70 -...
  • Page 71 Remove all protective films of thermal pads of the heat-sink. Put the PCBA back to heat-sink. Make sure all the screw holes on PCBA are aligned with mounting posts of the heat-sink. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 71 -...
  • Page 72 Get five M3 spring screws from the accessory box. Fix them according to the order indicated on the photo (red circles). And tighten four M3 P-head screws (yellow circles) to fix the PCBA to the heat-sink. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 72 -...

  • Page 73: Replace The Cpu On Nuvo-5000 Rev. A1

    Remove the PCBA from the heat-sink by loosing five M3 spring screws (red circles) and six M3 P-head (yellow circles). Gently lift the PCBA from the heat-sink. The CPU and CPU retaining bracket shall stay with the heat-sink. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 73 -...
  • Page 74 CPU. If it’s broken, please replace it with a new one. Follow steps described in step 3 to step 7 in section 3.2.4 to install a new CPU to your Nuvo-5000 controller. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 74 -...

  • Page 75: Install Ddr4 Sodimm Module

    SODIMM module. Repeat step 2 if you want to install the second DDR4 SODIMM module. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 75 -...

  • Page 76: Install Ddr4 Sodimm Module For Nuvo-5000Lp Series

    SODIMM module. Repeat step 2 if you want to install the second DDR4 SODIMM module. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 76 -...

  • Page 77: Install 2.5" Sata Hdd/Ssd

    Get the HDD thermal pad from the accessory box. Remove protective films on both sides and place the thermal pad on the center of HDD bracket. (HDD bracket of Nuvo-5000E/P) (HDD bracket of Nuvo-5000LP) Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 77 -...
  • Page 78 Pull out the SATA cable inside the chassis and connect it to HDD/SSD. (Nuvo-5000E/P) (Nuvo-5000LP) Place the HDD/bracket assembly back to the bottom cover. And fix it with three M3 flat-head screws. (Nuvo-5000E/P) (Nuvo-5000LP) Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 78 -...

  • Page 79: Install 2.5" Sata Hdd/Ssd To Hdd Tray (Nuvo-5000Lp Only)

    Push the handle back to the HDD tray along with the 2.5” HDD till it snaps into the latching position. If necessary, get the key from the accessory box to lock the door of HDD tray and secure the HDD/SSD. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 79 -...

  • Page 80: Install Mini-Pcie Module

    PCBA exposed. Tilt the mini-PCIe 3G module and insert it into the mini-PCIe #2 socket (marked as red). And fix the module with one M2.5 P-head screw. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 80 -...
  • Page 81 SMA connector. The mini-PCIe #2 socket shall be used in conjunction with the panel-accessible SIM socket on the back panel. Insert the SIM card upside down to the SIM socket to support 3G communication for your Nuvo-5000 controller. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 81 -...

  • Page 82: Install Mezio Tm Module

    Align the board-to-board connector on the MezIO-C180 module to to connector on the PCBA. Gently push it down and make sure the connector is firmly contacted. Fix the MezIO module with three M3 P-head screws. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 82 -...
  • Page 83 Nuvo-5000 Series User’s Manual Remove the pre-cutting plate of MezIO I/O aperture on the back panel to expose the SCSI-II 68-pin connector of the MezIO-C180 module. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 83 -...

  • Page 84: Install Add-On Card In Cassette

    Cassette, please refer to the instructions described in this section. Remove Cassette from the system by loosening four M4 screws. Nuvo-5000E/P systems Nuvo-5026E series Gently wiggle and detach the Cassette enclosure from the main system enclosure Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 84 -...
  • Page 85 Nuvo-5000 Series User’s Manual For Nuvo-5026E series, unscrew three screws shown below to remove the Cassette cover. Pull the cover of Cassette toward arrow pointing direction to open it. And then remove the blank faceplate installed in Cassette by loosening a M3 screw.
  • Page 86 Tighten the add-on card using a M3 screw. Recover Cassette and assemble it to system enclosure. Fix the Cassette with four M4 screws. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 86 -...

  • Page 87: Mount Your System

    Nuvo-5000 Series User’s Manual 3.8 Mount your System Nuvo-5000 series/ Nuvo-5026E series provide versatile ways of mounting. You can use wall-mounting brackets shipped with the system to mount it on the wall. Neousys also offers optional DIN rail mounting kit to mount it on a DIN rail. To mount your system controller, please refer to the instructions listed below.
  • Page 88 Wall. Nuvo-5000 series Nuvo-5026E series For best efficiency of heat dissipation, please mount your system in a right direction. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 88 -...

  • Page 89: Mount Your System On The Din-Rail

    M4 screws. This option can be useful if you want to deploy it inside an equipment cabinet where DIN rail is available. Nuvo-5000 series Nuvo-5026E series Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 89 -...

  • Page 90: Connect Dc Power To Your System

    DC power is correct before you connect it to Nuvo-5000 controller. Supplying a voltage over 35V or incorrect polarity will damage the system. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 90 -...

  • Page 91: Power On Your Nuvo-5000 Controller

    Push the button when system is on will turn off the system. If your operating system supports ATX power mode (i.e. Microsoft Windows or Linux), push the power button causes a pre-defined system behavior, such as shutdown or hibernation. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 91 -...

  • Page 92: Power On Using An External Non-Latched Switch

    If your operating system supports ATX power mode (i.e. Microsoft Windows or Linux), push the power button causes a pre-defined system behavior, such as shutdown or hibernation. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 92 -...

  • Page 93: Power On Nuvo-5000 Using Wake-On-Lan Function

    4.1.6 for the instruction of configuring this BIOS option. In Windows 7 system, identify the Local Area Connection of corresponding Intel® I219 Gigabit Controller and click the Configure button. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 93 -...
  • Page 94 There are some free tools available on Internet that can be used to send a magic packet. Please refer to the following link to understand more about Magic Packet. http://en.wikipedia.org/wiki/Wake-on-LAN Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 94 -...

  • Page 95: Chapter 4 Bios And Driver

    In this section, we’ll illustrate some of BIOS settings you may need to modify. Please always make sure you understand the effect of change before you proceed with any modification. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 95 -...

  • Page 96: Com Port Configuration

    Set the [Set COM1 as] to a proper mode for COM1 of your Nuvo-5000 controller. Set the [Set COM3 as] to a proper mode for COM3 of your Nuvo-5000 controller. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 96 -...

  • Page 97: Sata Port Configuration

    When Nuvo-5000 controller boots up, press F2 to enter BIOS setup utility. Go to [Advanced]  [SATA Configuration]. Set the [SATA Mode Selection] to a proper mode for your Nuvo-5000 controller. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 97 -...

  • Page 98: Hot Plug For Sata Port #1

    When Nuvo-5000 controller boots up, press F2 to enter BIOS setup utility. Go to [Advanced]  [SATA Configuration]. Enable the [Hot Plug] option for SATA port #1 to support hot-swap feature. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 98 -...

  • Page 99: Enable Tpm Feature

    Enable TPM by selecting “Available” for [TPM Availability] option. You will also need to select UEFI boot mode for installing Windows. Please refer to section 4.1.8 for detail. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 99 -...

  • Page 100: Configure Cpu Sku Power

    When Nuvo-5000 controller boots up, press F2 to enter BIOS setup utility. Go to [Power]  [Power & Performance]. Select a proper value of SKU power limit for [SKU Power Config] option. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 100 -...

  • Page 101: Wake-On-Lan Option

    To enable/disable “Wake on LAN” option: When Nuvo-5000 controller boots up, press F2 to enter BIOS setup utility. Go to [Power]. Enable/disable the [Wake on LAN] option according to your application. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 101 -...

  • Page 102: Power On After Power Failure Option

    When Nuvo-5000 controller boots up, press F2 to enter BIOS setup utility. Go to [Power]. Set the [Power On after Power Failure] option to a proper value for your Nuvo-5000 controller. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 102 -...

  • Page 103: Configure Legacy/Uefi Boot Type

    When Nuvo-5000 controller boots up, press F2 to enter BIOS setup utility. Go to [Boot]. Set the [Boot Type] option to a proper value for your Nuvo-5000 controller. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 103 -...

  • Page 104: Position New Boot Device

    Go to [Boot] menu. The [Add New Boot Device] option decides whether to place the newly-installed boot device to the “First” place or the “Last” place in the boot sequence. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 104 -...

  • Page 105: Watchdog Timer For Booting

    Disable or select timeout value for [WDT for Booting] option. Once you give a timeout value, the [WDT Stop Option] option appears. You can select “Automatically after POST” or “Manually after Entering OS”. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 105 -...
  • Page 106 Nuvo-5000 Series User’s Manual Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 106 -...

  • Page 107: Select A Boot Device

    The [Boot Menu] option decides whether to list all bootable devices connected to your Nuvo-5000 controller according to [By Device] or [By Device Type]. You can use F5/F6 or +/- to change the boot order of devices or device categories. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 107 -...

  • Page 108: Configure Amt

    Select “MEBx Login” and you’re asked for password. The default password is “admin”. For further MEBx configuration, please refer to Intel® MEBX User Guide. You can find related information at http://www.intel.com/support/motherboards/desktop/sb/CS-033768.htm Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 108 -...

  • Page 109: Configure Raid Volume

    Reboot Nuvo-5000 controller, you will see a UI banner for RAID configuration. Press <CTRL-I> to enter RAID configuration page. You can create, delete or configure your RAID volume here. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 109 -...

  • Page 110: Operating System Support

    RAID. It should be user’s liability to manually upgrade related drivers if necessary. Neousys will keep this list updated as we continuously test other operating systems with Nuvo-5000 series. Please contact us for the latest OS support list. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 110 -...

  • Page 111: Driver Installation

    Windows operating system and install all necessary drivers. According to different versions of Windows, the installation process takes about 6~8 minutes. Once driver installation is done, the setup utility reboots your Windows and your system works normally afterward. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 111 -...

  • Page 112: Install Drivers Manually

    Graphics driver (x:\Driver_Pool\Graphics_6th_i7\Win_7_8_10_64\Setup.exe) Audio driver (x:\Driver_Pool\Audio_ALC262\Win_ALL_64\Setup.exe) LAN driver (x:\Driver_Pool\GbE_I210_I350\Win_ALL_64\APPS\PROSETDX\Winx64\DxSetup.exe) ME driver (x:\Driver_Pool\ME_10_Series\Win_ALL_AMT\SetupME.exe) Windows 10 64-bit The recommended driver installation sequence is Chipset driver (x:\Driver_Pool\Chipset_10_Series\Win_ALL\SetupChipset.exe) Graphics driver (x:\Driver_Pool\Graphics_6th_i7\Win_7_8_10_64\Setup.exe) Audio driver (x:\Driver_Pool\Audio_ALC262\Win_ALL_64\Setup.exe) Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 112 -...
  • Page 113 Nuvo-5000 Series User’s Manual LAN driver (x:\Driver_Pool\GbE_I210_I350\Win_ALL_64\APPS\PROSETDX\Winx64\DxSetup.exe) ME driver (x:\Driver_Pool\ME_10_Series\Win_ALL_AMT\SetupME.exe) Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 113 -...

  • Page 114: Install Driver For Wdt And Per-Port Poe On/Off Control

    Windows 7/8/10 64-bit (x64) Please execute the driver setup program in the following directory. x:\Driver_Pool\WDT_DIO\Win7_8_64\WDT_DIO_Setup_v2.2.2(x64).exe Windows 7/8/10 64-bit (WOW64) Please execute the driver setup program in the following directory. x:\Driver_Pool\WDT_DIO\Win7_8_WOW64\WDT_DIO_Setup_v2.2.2(wow64).exe Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 114 -...

  • Page 115: Appendix A Install Windows 7 On Nuvo-5000

    The first step is to create a .iso file from the Windows 7 DVD. Here we use ImgBurn (http://www.imgburn.com) to create the .iso file and save it to local drive. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 115 -...

  • Page 116: Step 2 - Create Usb Flash Drive Installer From .Iso

    USB flash drive will be destroyed. 1. Right-click on the ‘Windows 7 USB DVD Download Tool’ and select ‘Run as administrator’. 2. Follow the instructions below to create the USB flash drive installer. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 116 -...

  • Page 117: Step 3 - Create Working Folder On Your Local Drive

    4. Copy install.wim and boot.wim from \sources folder of your USB flash drive to D:\WIM. 5. Copy the batch file (Win7_USB3_Patch_x86.bat or Win7_USB3_Patch_x64.bat) to D:\WIM. You can find the batch file in x:\Driver_Pool\USB3_10_Series\Win7_ALL. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 117 -...

  • Page 118: Step 4 - Execute Batch File To Patch .Wim Files

    Execute the batch file with administrator privilege. It appears an interactive menu for choosing Windows 7 edition. Please input the corresponding index number for your Windows 7 edition and press Enter. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 118 -...

  • Page 119: Step 5 - Install Windows 7 Using Usb Flash Drive Installer

    If it appears a warning message of “Setup was unable to create a new system partition or locate an existing system partition”, please to unplug and re-plug the USB flash drive, click ‘Refresh’ and try again. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 119 -...

  • Page 120: Appendix B Using Watchdog Timer

    In this section, we’ll illustrate how to use the function library provided by Neousys to program the WDT functions. Currently, WDT driver library supports Windows 7/8.1/10 32-bit and 64-bit versions. For other OS support, please contact Neousys Technology for further information.
  • Page 121 To install WDT_DIO_Setup package, please follow steps described below. Execute WDT_DIO_Setup.2.2.20.exe. The following dialog appears. Click “Next >” and specify the directory of installing related files. The default directory is C:\Neousys\WDT_DIO. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 121 -...
  • Page 122 When you programming your WDT or DIO program, the related files are located in Header file: \Include Lib file: \Lib Function Reference: \Manual Sample Code: \Sample\WDT_Demo (Demo for Watchdog Timer) \Sample\PoE_Demo (Demo for Per-port PoE Control) Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 122 -...
  • Page 123 If value of unit is correct (0 or 1), this function returns TRUE, otherwise FALSE. Usage WORD tick=255; BYTE unit=1; //unit is second. BOOL bRet = SetWDT(tick, unit); //timeout value is 255 seconds Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 123 -...
  • Page 124 BOOL bRet = ResetWDT() StopWDT Syntax BOOL StopWDT(void); Description Stop the countdown of WDT. When WDT is stopped, the WDT LED indicator stops blinking. Parameter None Return Value Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 124 -...
  • Page 125 Nuvo-5000 Series User’s Manual Always returns TRUE; Usage BOOL bRet = StopWDT() Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 125 -...
  • Page 126 BYTE value indicating PoE on/off status. 0 if port is disabled (off), 1 if port is enabled (on). Usage BYTE bEnabled = GetStatusPoEPort (1); //Get on/off status of PoE Port#1 Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 126 -...
  • Page 127 BYTE value specifies the index of PoE port. For Nuvo-5000 series, port should be a value of 1 ~ 4. You can refer to the following photo for the PoE port# of Nuvo-5000 series. Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 127 -...
  • Page 128 Nuvo-5000 Series User’s Manual Return Value Returns TRUE on success, return FALSE if the function failed. Usage BOOL bRet = DisablePoEPort (1); //Turn off PoE Port#1 Copyright © 2016 Neousys Technology Inc. All Right Reserved. - 128 -...

This manual is also suitable for:

Nuvo-5006eNuvo-5002pNuvo-5006pNuvo-5002lpNuvo-5006lpNuvo-5006e-poe ... Show all

Table of Contents
