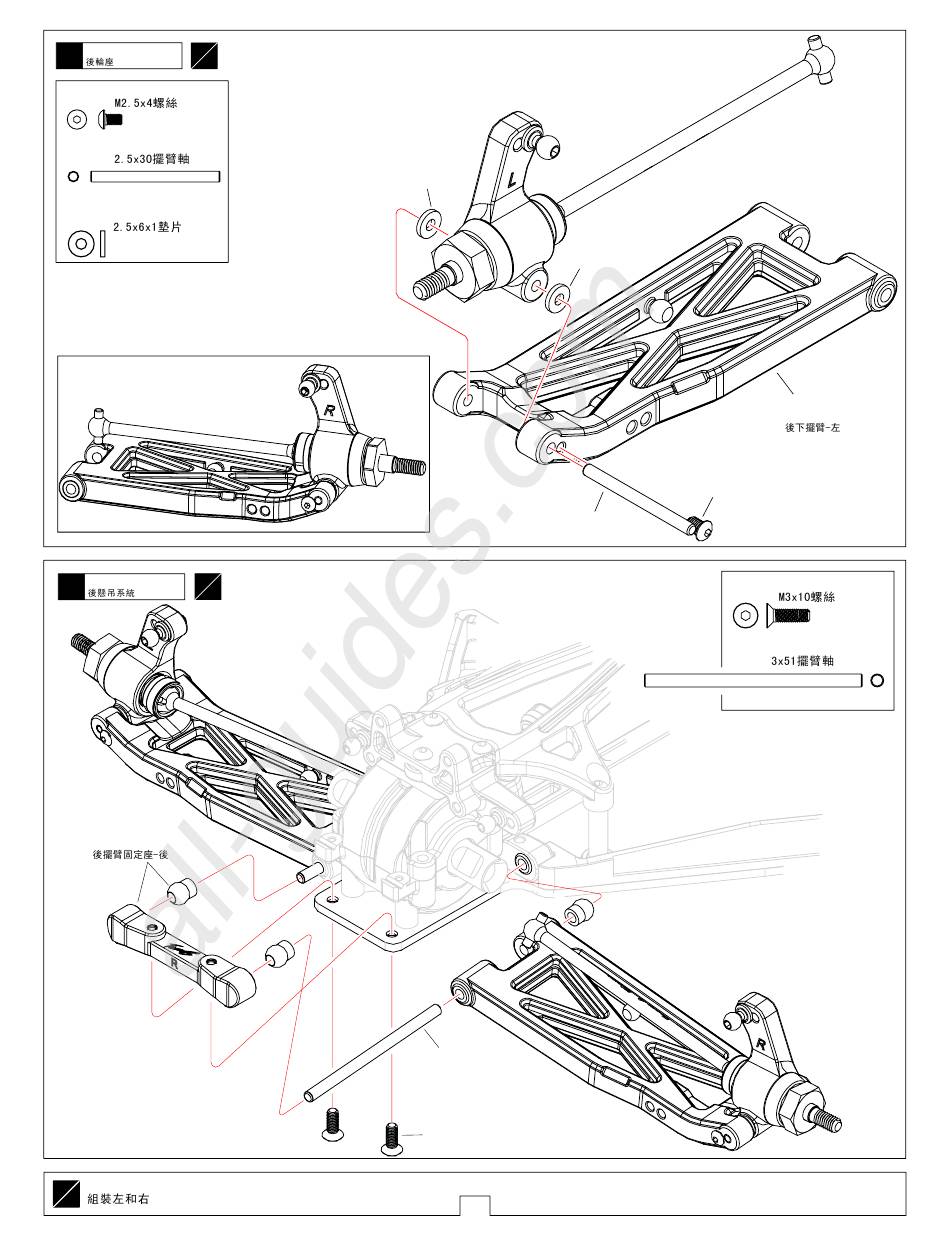

Rear hub carriers
L
Bag
26
R
TR4059 M2.5x4 Screw
.....................2
TR4046 2.5x30 Arm pin
..................2
TR4011 2.5x6x1 Washer
........................4
< R >
Rear suspension
L
27
Bag
R
TU0418
Rear Arm Mount-R
Assemble both Left and Right
L
R
All manuals and user guides at all-guides.com
-D
TR4011
2.5x6x1
-D
T04035 3x51
TR4058 M3x10
< L >
TR4011
2.5x6x1
TR4046 2.5x30
13
TS4013
Rear lower arm-L
TR4059 M2.5x4
TR4058 M3x10 Screw
...............2
T04035 3x51 Arm pin
..................2
