Team C TS4-TE Manual page 10

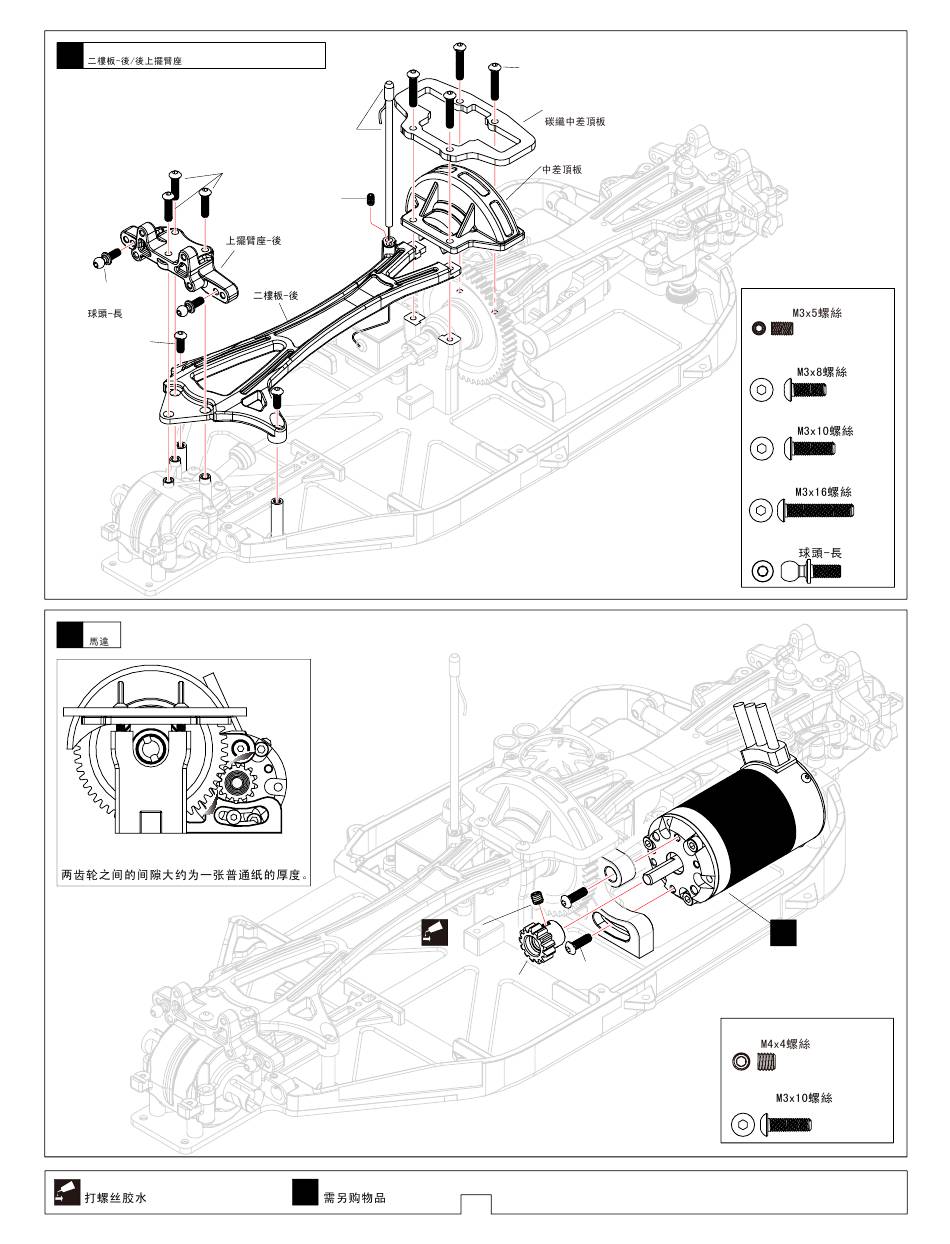

Upper Deck-Rear / Rear Upper Suspension Arm Mount
14
B
I
-
-
Bag
Bag
TR4059 M3x10
TR4004
Upper Suspension Arm Mount-R
TS4042
Ball stud-Long
TR4059 M3x8
B
-
Motor
15 Bag
Tighten the screws with one sheet of paper
inserted between both gears.
Apply threadlocker(screw cement)
Screw
Cement
All manuals and user guides at all-guides.com
T02087
T08814
M3x5
TR4014
Upper Deck-R
Screw
Cement
Must be purchased separately
X
TS409 M3x16
TS409
Carbon Center diff upper plate
TS4020
Center diff upper plate
H393
M4x4
TR4059 M3x10
H393 13T
7
T08814 M3x5 Screw
...... ... ............1
TR4059 M3x8 Screw
............2
TR4059 M3x10 Screw
.........3
TS409 M3x16 Screw
......4
TS4042 Ball stud-Long
.........2
X
H393 M4x4 Screw
...... ... ...............1
TR4059 M3x10 Screw
...............2
