LP Vapor Installation (typical)
LP BTU = ft
Megajoules = m
A. Sediment Trap
B. Flexible Fuel Line
C. Manual Shut Off Valve With Pressure Port
D. Check Distance with Regulator Manufacturer
E. BTU and Pressure Decal
F. Check Distance with Gas Provider
G. Secondary Fuel Pressure Regulator
H. Manual Shut Off Valve
I. Primary Fuel Pressure Regulator Per LP Provider
J. Size fuel tank large enough to provide required BTUs for generator and ALL
connected appliance loads. Be sure to correct for weather evaporation.
Installation Guidelines for 50 Hz PowerPact™
E
D
B
C
A
3
/h X 2500
3
/h X 93.15

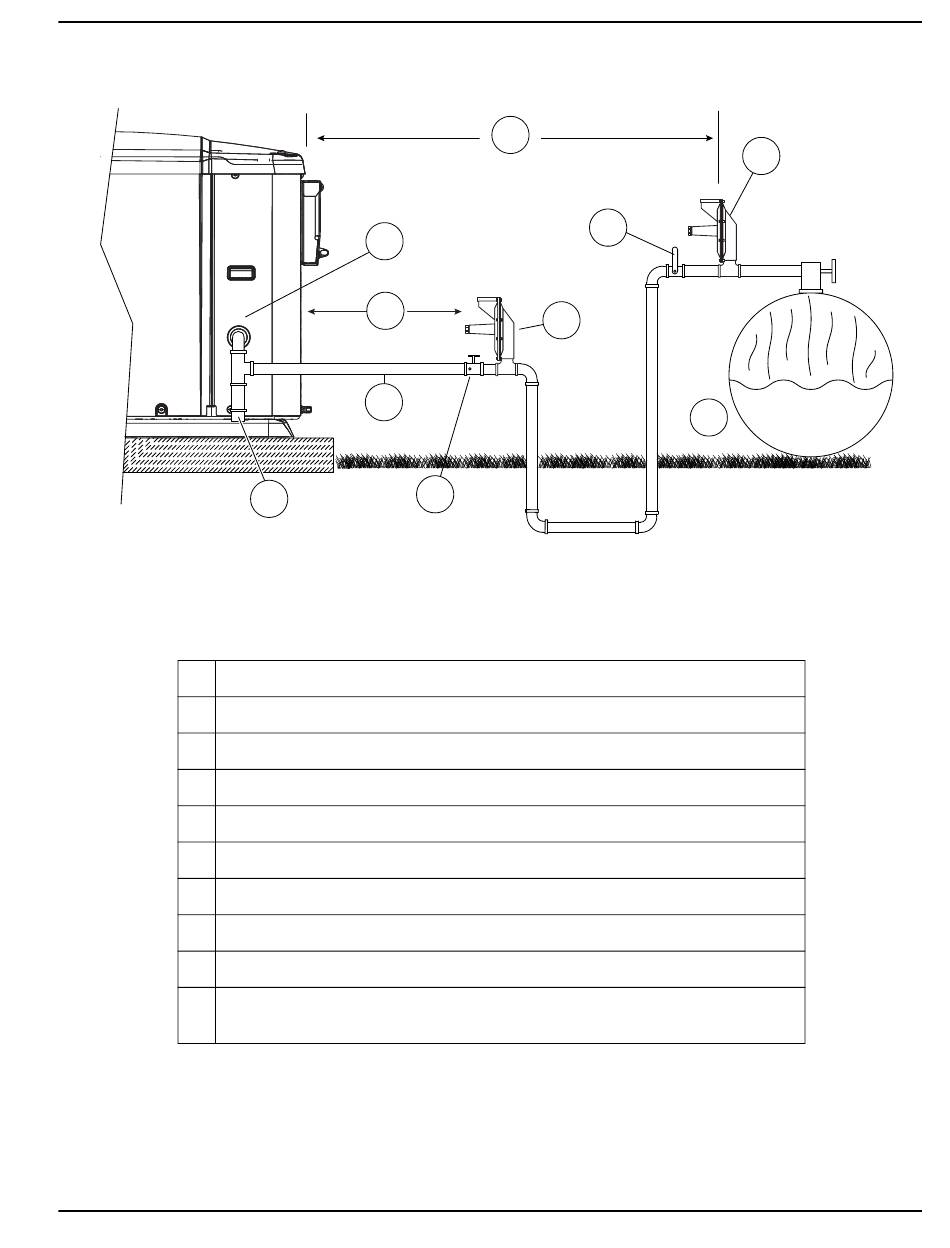

Figure 5-6. LP Vapor Installation (typical)
Fuel Conversion/Gas Connections
F
H
G
I
J
