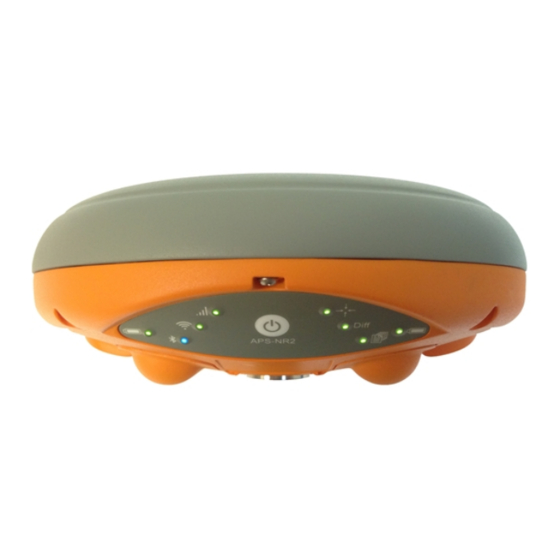

SEPTENTRIO ALTUS NR2 Quick Start Manual

Hide thumbs Also See for ALTUS NR2:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

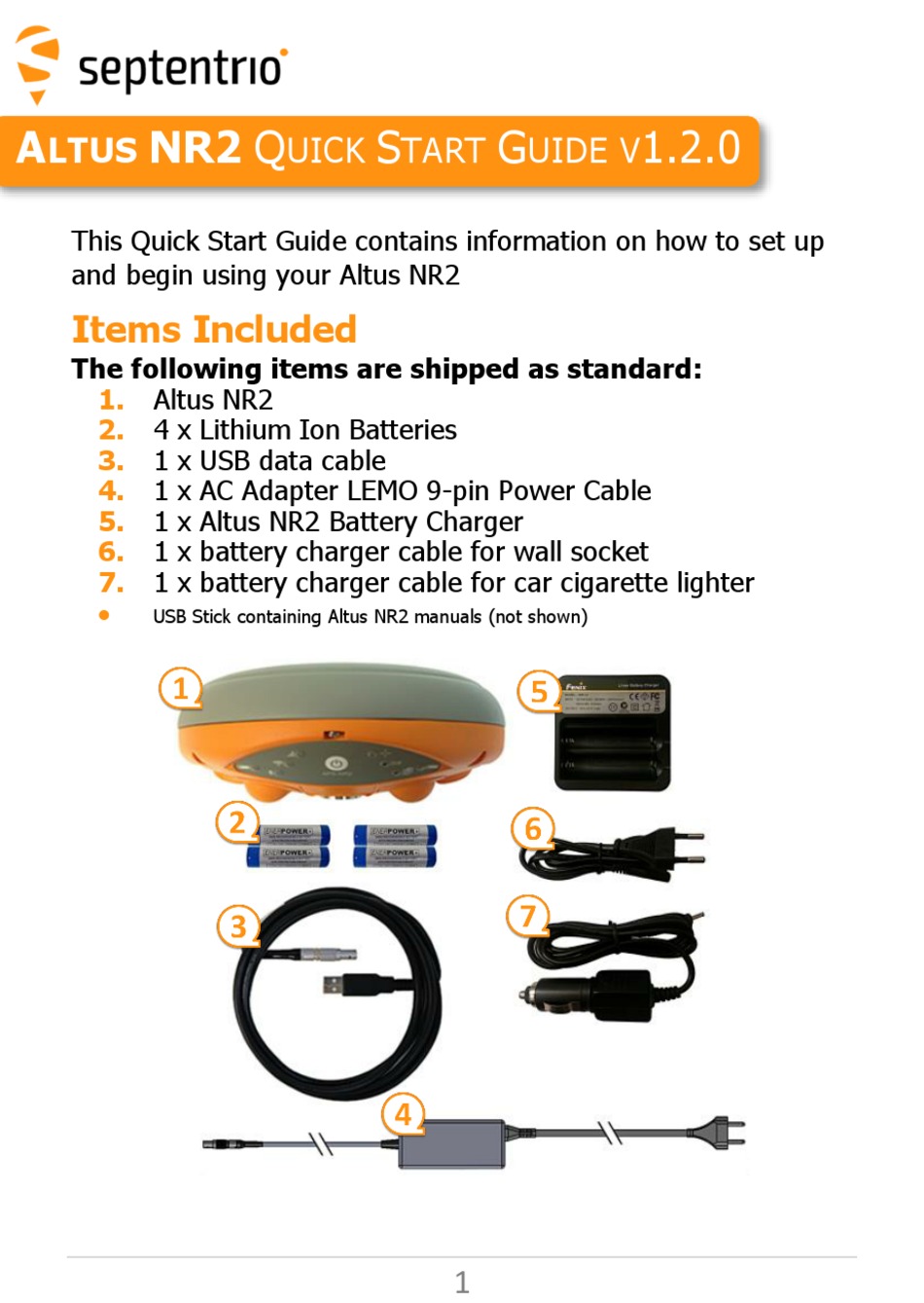

A
NR2 Q
LTUS
This Quick Start Guide contains information on how to set up
and begin using your Altus NR2
Items Included
The following items are shipped as standard:
1.
Altus NR2
2.
4 x Lithium Ion Batteries
3.
1 x USB data cable
4.
1 x AC Adapter LEMO 9-pin Power Cable
5.
1 x Altus NR2 Battery Charger
6.
1 x battery charger cable for wall socket
7.
1 x battery charger cable for car cigarette lighter
USB Stick containing Altus NR2 manuals (not shown)
S
UICK
TART
1
G
1.2.0
UIDE V

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALTUS NR2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEPTENTRIO ALTUS NR2

Summary of Contents for SEPTENTRIO ALTUS NR2

  • Page 1 1 x AC Adapter LEMO 9-pin Power Cable 1 x Altus NR2 Battery Charger 1 x battery charger cable for wall socket 1 x battery charger cable for car cigarette lighter  USB Stick containing Altus NR2 manuals (not shown)

  • Page 2: Additional Equipment Required

    1. Install the SIM card and batteries  Install an activated SIM in the left hand battery slot  Insert fully charged batteries  The positive side of the battery should point to the front panel of the Altus NR2...
  • Page 3 The battery door is only latched after a click is heard 2. Power up the Altus NR2  Power up by pressing the power button once  The unit will fully boot up in around 20 seconds (To switch off the Altus NR2, press the power button for 2 seconds)

  • Page 4: Connect To The Web Interface

    3. Connect to the Web Interface  Search for a wireless network or access point called ‘Altus_NR2-XXXXXXX’ and click Connect.  No password is required  Open Browser and type 192.168.20.1 in the address bar.
  • Page 5 4. Saving settings during configuration  During configuration, the pop up above will appear if the settings are changed  Click on Save to keep the same settings at the next start 5. Configure the Cellular Modem  On the Communication/Cellular Tab enter the appropriate information: leave blank if fields are not- applicable ...
  • Page 6 Click the NTRIP tab and enter in appropriate details  Click Ok when complete 7. Connect Bluetooth to third-party software  Set third-party software to search for Bluetooth devices  Connect to Altus NR2 using ‘1234’ as the pairing code...
  • Page 7 9. Use your favorite application Once your receiver has been configured you can use a large variety of applications compatible with the Altus NR2 (SurvCE, Septentrio FieldGenius, Collector for ArcGIS, DigiTerra Explorer and more). Alternatively, you can also use PinPoint-GIS which provides seamless integration of GNSS data into Esri ArcGIS Online and other GIS database workflows.
  • Page 8 Further information … Contact your dealer for first line support. More information can be found on our website or by contacting Septentrio’s Technical Support Department: Web: www.septentrio.com Email: support@septentrio.com Europe Septentrio Satellite Navigation Phone: +32 16 300 800 Greenhill Campus...
