5 . Basic Monitoring
Is the PolaRx5S tracking satellites?
•
Select the 'GNSS' tab then
'Satellites and Signals'
•
In open sky, the PolaRx5S
should track between 15
and 25 GPS and Glonass
satellites.
•
The Carrier-to-Noise plot
for GPS should show
about 3 satellites with an
L1CA above 50 dB-Hz
Is there any interference?
• Select the 'GNSS' tab then 'Spectrum'
• Click 'Show table' on the
Spectrum plot then select
GPS L2-P(Y). This frequency
band can be vulnerable to
interference.
•
The small GPS L2 signal at
1227.6 MHz should be visible.
Other spikes or anomalous
activity in the spectrum may
indicate interference.
For more information:
The memory stick delivered with the PolaRx5S
contains the following documents:
•
PolaRx5S User Manual
•
PolaRx5S Firmware Manual
•
SBF Reference Guide
•
You can also consult our webpage or contact our
Support Department:
http://www.septentrio.com
support@septentrio.com

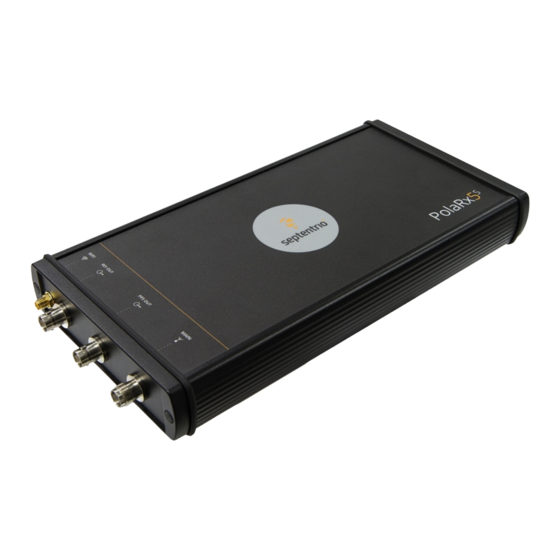

PolaRx5S
Quick Start Guide
To set up the PolaRx5S you will need:
Power adapter
WiFi capable device
Antenna
Antenna cable
USB cable
Advertisement
Related Manuals for SEPTENTRIO PolaRx5S
Summary of Contents for SEPTENTRIO PolaRx5S
- Page 1 • Click 'Show table' on the Spectrum plot then select GPS L2-P(Y). This frequency band can be vulnerable to interference. To set up the PolaRx5S you will need: • The small GPS L2 signal at 1227.6 MHz should be visible. Other spikes or anomalous activity in the spectrum may indicate interference.
- Page 2 Connect the power adapter to the ‘PWR’ socket on the PolaRx5S front panel • Plug the power adapter into the mains • Find the PolaRx5S WiFi • The PolaRx5S will start up automatically signal on your device and click: Connect • When connected, open a 2.
