Quick Setup Guide
BDV-E280
©2011 Sony Corporation Printed in Malaysia
1

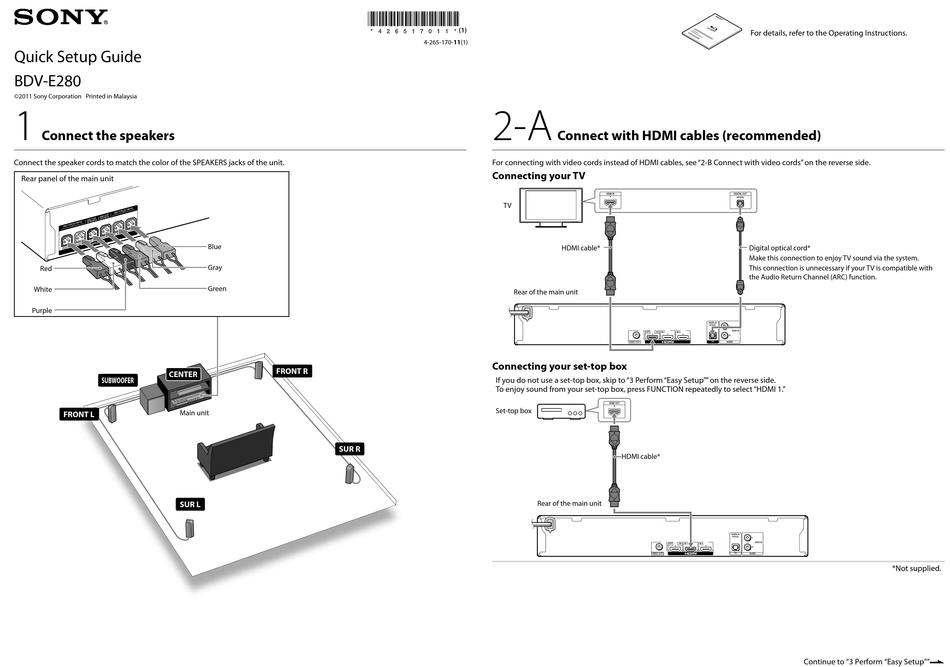

Connect the speakers

Connect the speaker cords to match the color of the SPEAKERS jacks of the unit.
Rear panel of the main unit
Red
White
Purple
CENTER
SUBWOOFER
FRONT L
Main unit
SUR L
Blue
Gray
Green
FRONT R
SUR R
(1)
4-265-170-11(1)
2-A
Connect with HDMI cables (recommended)
For connecting with video cords instead of HDMI cables, see "2-B Connect with video cords" on the reverse side.
Connecting your TV
TV
HDMI cable*
Rear of the main unit
Connecting your set-top box
If you do not use a set-top box, skip to "3 Perform "Easy Setup"" on the reverse side.
To enjoy sound from your set-top box, press FUNCTION repeatedly to select "HDMI 1. "
Set-top box
Rear of the main unit
For details, refer to the Operating Instructions.
HDMI IN
DIGITAL OUT
OPTICAL
Digital optical cord*
Make this connection to enjoy TV sound via the system.
This connection is unnecessary if your TV is compatible with
the Audio Return Channel (ARC) function.
DIGITAL IN
OPTICAL
L
AUDIO IN
OUT
ARC
IN 1
IN 2
R
VIDEO OUT
TV
AUDIO
HDMI OUT
HDMI cable*
DIGITAL IN
OPTICAL
L
AUDIO IN
OUT
ARC
IN 1
IN 2
R
VIDEO OUT
TV
AUDIO
*Not supplied.
Continue to "3 Perform "Easy Setup""
