(Assembly cont.)

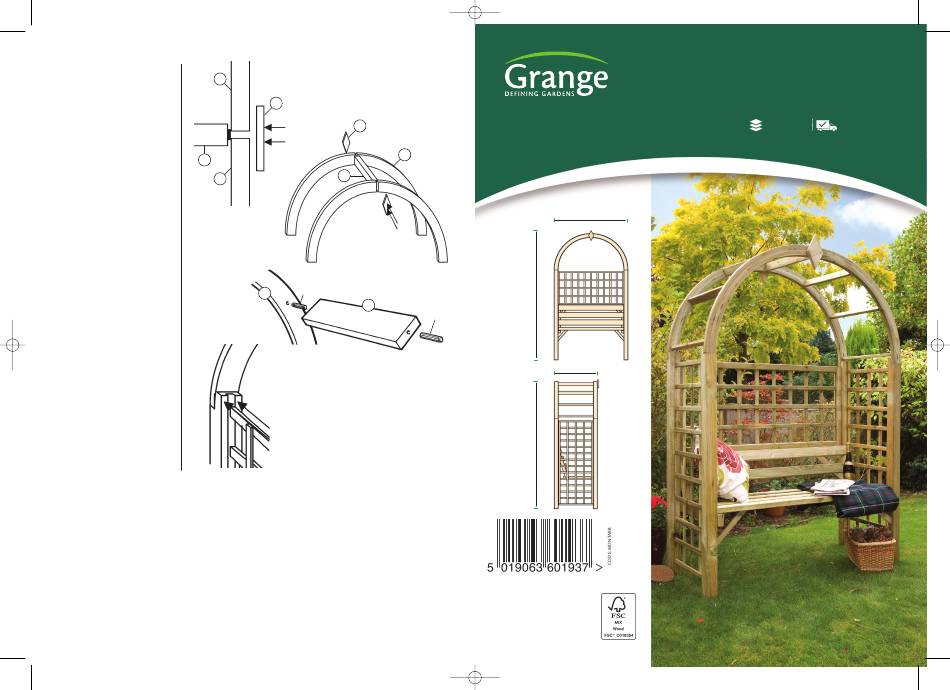

STEP 9
Fix one of the Roof Struts (F) at
the join of the Curved Beams (E)
from the outside [plain] side using
the Finial (G) to form the joint as
Fig.6 and Fig.7.
STEP 10
Using the remaining two curved
beams fix them to the other end
F
of the roof strut in the same way.
STEP 11
Insert wooden dowels [v] into
each end of the other roof struts
Fig.6
(F) and slot them into position in
the holes along the two Curved
Roof Beams (E) as Fig.8.
STEP 12
Raise this assembly and locate
onto the tops of the posts of the
seat assembly. Insert the roof
struts between the curved beams
in the slots provided and fix the
curved beams to the top of the
post using two screws [z] at each
post as Fig.9.
Your Arbour is now completed.
CARE OF YOUR ARBOUR
The Montebello Arbour is made of planed pressure treated and FSC certified timber
and as such is guaranteed against rot for a minimum of 15 years. However, it
should be remembered that as a natural product, timber is subject to movement
and weathering as it seasons. It is not uncommon for small spits to occur when
drying and warping when timber is allowed to dry too rapidly. These will normally
go back when humidity rises, it is nature at work and not considered a fault.
AFTERCARE
Its colour will also change with time, A re-treatment, as required with a proprietary wood treatment is recommended.
