Grange BOWED WALKWAY Quick Start Manual

BWALK [A5 4page instructions] 4/2/16
STEPS 7 - 9

STEP 7

A
Fix five of the longer brackets
(x) to the Curved Beam (2) at
Posts CD spaced equally as
Step 6.

STEP 8

Site the two remaining posts
B
and curved beam at EF as
Steps 3 and 4.

STEP 9

Fix the remaining five smaller
brackets (w) to the Curved
Beam (2) equally spaced as
step 6
Step 10
Locate one of the Rafters (3)
into the centre brackets at
AB and CD. The straight end
of the rafter should be fixed
centrally in the longer bracket
(x) at CD

STEP 11

Locate a second rafter in line
with the rafter just fitted,
2
between CD and EF. Fix in
place.

STEP 12

Repeat Step 11 for the
remaining rafters.
1
NB.
The structure is designed to
accept standard fence panels
of 183cm.
To allow 180cm panels to be
fitted the distance between
the posts may be adjusted to
suit.

AFTERCARE

To ensure longevity of your structure it is recommended that it is treated with a wood preservative on a yearly basis.
10:22 Page 1
z
z
C E
2
D F
3
w
x
x
©2015 Grange Fencing Ltd All rights reserved.
In line with the Company's policy of
continuous product development, the right
is reserved to change and improve product
design without prior notice.
All products and related emblems featured are
trademarks of Grange Fencing Ltd.
www.grangefen.co.uk

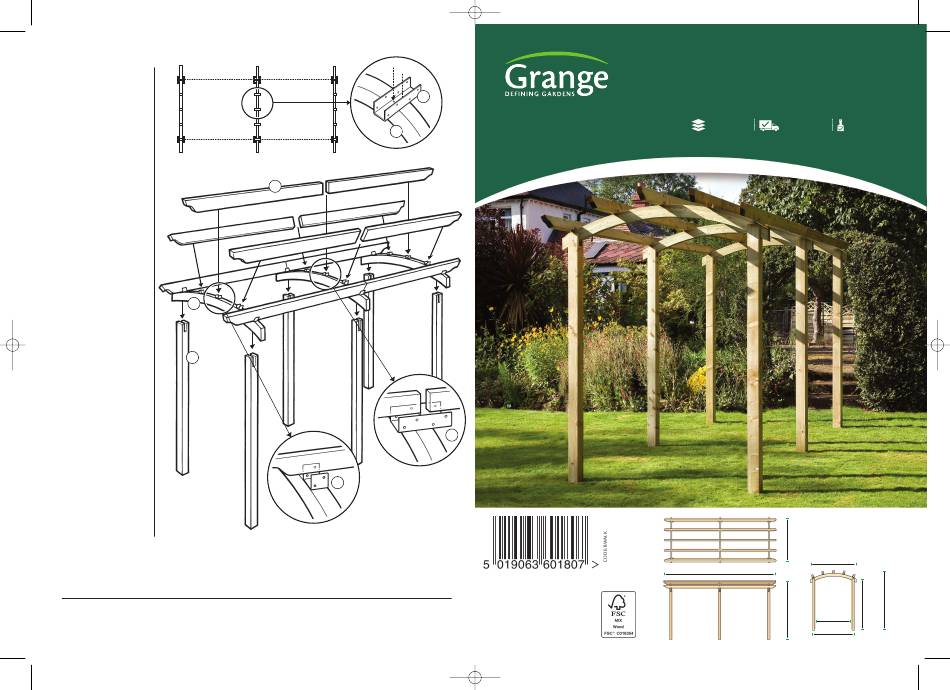

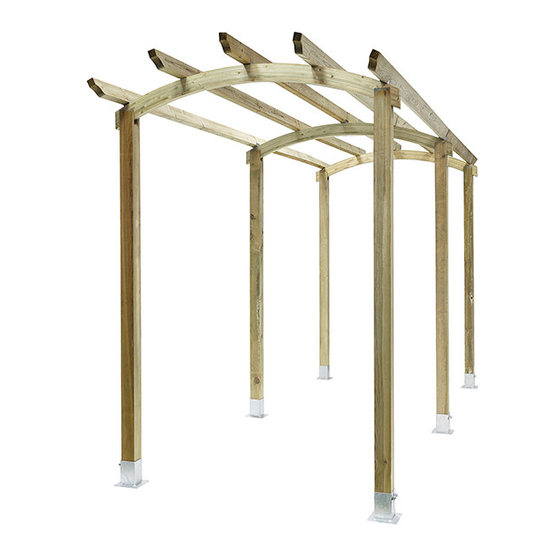

BOWED WALKWAY
BWALK - 293cm [H] x 180cm [W] x 480cm [D]
Self-Assembly required Home Delivery available
PLAN
180cm
480cm
293cm
Pre-Painted available
180cm
293cm
270cm
141cm
160cm
