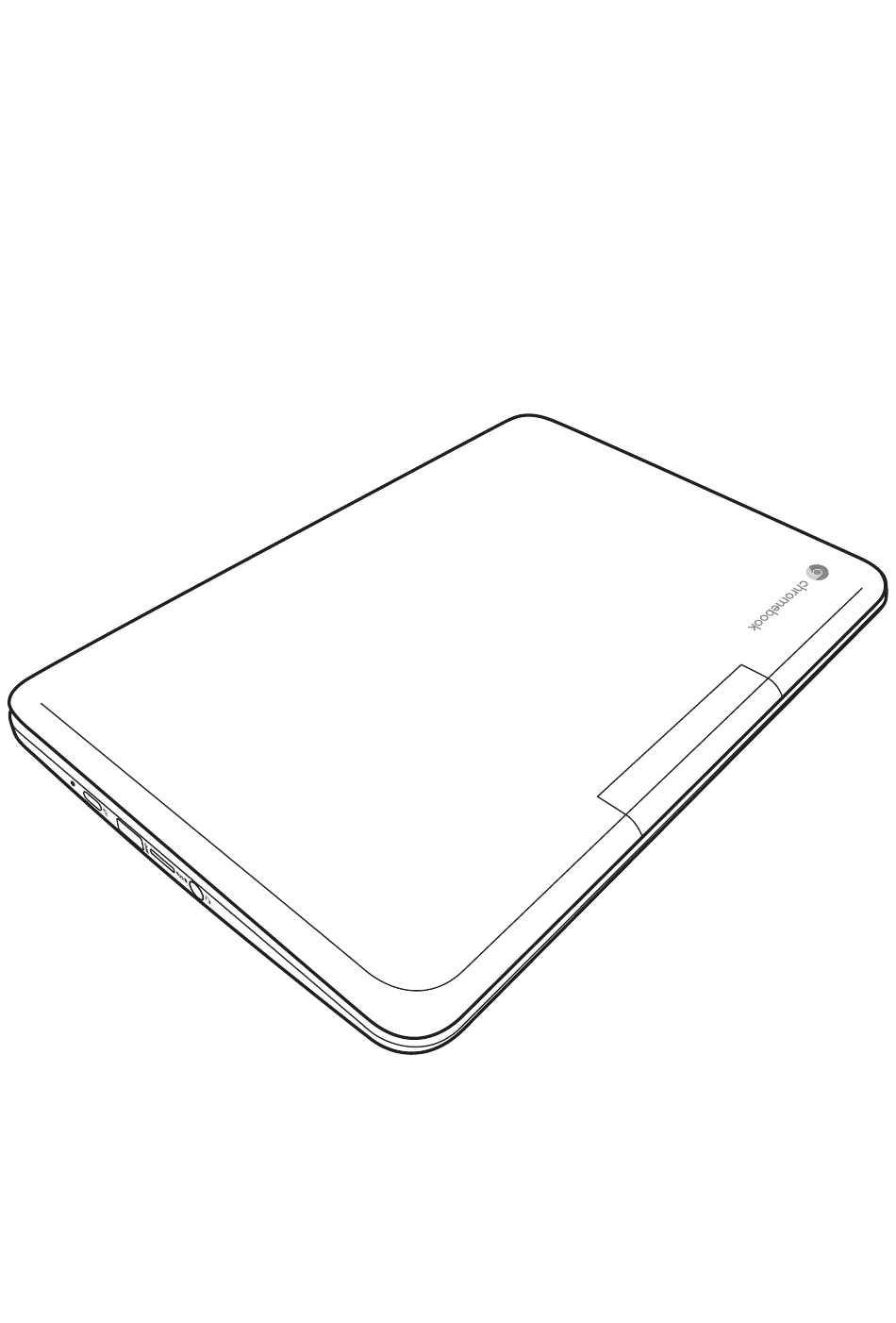

- Page 1 Education Chromebook USER MANUAL E N G L I S H LI9B series January 2020 – Clamshell...
-
Page 2: Table Of Contents
CONTENTS BEFORE YOU START ................... 4 Make sure you have everything ...................4 Familiarize yourself with the computer ...............5 OPENING THE DISPLAY PANEL ................5 FRONT OVERVIEW....................6 LEFT SIDE OVERVIEW .....................8 RIGHT SIDE OVERVIEW ..................10 BACK OVERVIEW ....................13 BOTTOM OVERVIEW....................13 GETTING STARTED .................... 15 Power Sources ......................15 CONNECTING THE POWER ADAPTERS ..............15 RECHARGING THE BATTERY ................16... - Page 3 TAKING CARE OF YOUR COMPUTER • To prevent possible overheating of the computer’s processor, make sure you don’t block the openings provided for ventilation. DO NOT press or touch the display panel. • DO NOT place on uneven or unstable work surfaces. •...
-
Page 4: Before You Start
BEFORE YOU START Make sure you have everything When you receive your Chromebook, unpack it carefully, and check to make sure you have all the items listed below. For a pre-configured model you should have the following: • Chromebook • AC adapter with power cord •... -
Page 5: Familiarize Yourself With The Computer
BEFORE YOU START Familiarize yourself with the computer OPENING THE DISPLAY PANEL To open the display panel, simply lift the lid up. When closing it, be sure not to slam it shut. -
Page 6: Front Overview
BEFORE YOU START FRONT OVERVIEW The following is an overview of the front of the Chromebook. Camera LED Camera Microphone Display Panel Suspend/ Power On Button Keyboard Touchpad Pointing Device Microphone The built-in microphone allows for the reception and transmission of voice and/or other audio data to any program capable of accepting such input. - Page 7 BEFORE YOU START Suspend/Power On Button This button turns your Chromebook on and off. (See Power On section for more information.) Touchpad Pointing Device The touchpad pointing device is a mouse-like cursor control with a touch sensitive movement pad. Keyboard The standard Chromebook keyboard is equipped with special shortcut keys which help you access common actions quickly.
-
Page 8: Left Side Overview
BEFORE YOU START LEFT SIDE OVERVIEW The following is a brief description of the left side of the Chromebook. Audio Combo Jack USB Type C Port (Headphone & Microphone) USB 3.0 Port Battery Charging Status Indicator Memory Card Reader USB Type C Port The USB Type C port allows you to connect Universal Serial Bus devices. - Page 9 BEFORE YOU START Battery Charging Status Indicator The battery charging status indicator shows the system battery status in the following manner: • Amber light - The battery is charging. • Blue light - The battery is fully charged.
-
Page 10: Right Side Overview
BEFORE YOU START RIGHT SIDE OVERVIEW The following is a brief description of the right side of the Chromebook for three different SKUs: USB, HDMI, and LTE. USB SKU: USB Type C Port Kensington USB 3.0 Port Lock Slot HDMI SKU: USB Type C Port Kensington HDMI Port... - Page 11 BEFORE YOU START USB Type C Port The USB Type C port allows you to connect Universal Serial Bus devices. It is small, compact, and reversible port. Kensington Lock Slot The Kensington lock slot allows you to secure your Chromebook to an immovable object with an optional security cable.
- Page 12 BEFORE YOU START LTE SKU: USB 3.0 Port (for USB SKU) The USB 3.0 port allows you to connect Universal Serial Bus devices. It supports v3.0 of the USB standard, which allows data exchange rates as high as 4.8 Gb/s. USB 3.0 is backwards compatible with USB 2.0.
-
Page 13: Back Overview
BEFORE YOU START BACK OVERVIEW The following is an overview of the back of the Chromebook. BOTTOM OVERVIEW The following is an overview of the bottom of the Chromebook. Drainage Hole Handle Speakers... - Page 14 BEFORE YOU START Drainage Hole The drainage hole prevents the accumulation of liquid inside the keyboard by releasing any liquid that has entered the keyboard, such as liquid from condensation or accidental spillage. To prevent the accumulation of liquid inside the keyboard, make sure you do not CAUTION block the drainage holes.
-
Page 15: Getting Started
GETTING STARTED Power Sources Your computer has two types of power source: a Lithium-Polymer battery or an AC adapter. CONNECTING THE POWER ADAPTERS The AC adapter provides power for operating your Chromebook and charging the battery. Connecting the AC Adapter 1. -
Page 16: Recharging The Battery
GETTING STARTED RECHARGING THE BATTERY The Lithium-Polymer battery is recharged internally using the AC adapter. To recharge the battery, make sure the battery is installed and the computer is connected to the AC. There is no “memory effect” in Lithium-Polymer batteries; therefore you do not need to discharge the battery completely before recharging. -
Page 17: Starting Your Chromebook
GETTING STARTED Starting Your Chromebook POWER ON The suspend/power on switch is used to turn on your Chromebook from its off state. For first time use, you must connect your AC adapter to the Chromebook and fully charge the internal Lithium- Polymer battery, once the battery charging status indicator has turned blue, you can power on your Chromebook by pressing the suspend/power on button located at the upper-right corner of the keyboard. -
Page 18: Using Shortcut Keys
GETTING STARTED USING SHORTCUT KEYS Your Chromebook has several shortcut keys along the top row of the keyboard that have various functions. Go to the previous page in your browser history Go to the next page in your browser history Reload your current page Enter Immersive mode, which hides the tabs and launcher Enter Overview mode, which shows all windows... - Page 19 GETTING STARTED Ctrl + Shift + q Sign out of your Google Account (twice) Ctrl + Shift + ? Display all keyboard shortcuts...
-
Page 20: Using The Touchpad
GETTING STARTED USING THE TOUCHPAD A touchpad pointing device comes built into your computer. It is used to control the movement of the pointer to select items on your display panel. The touchpad consists of a cursor control, and a clicking area. The cursor control works the same way a mouse does, and moves the cursor around the display. - Page 21 GETTING STARTED Dragging Dragging means pressing and holding the clicking area, while moving the cursor. To drag, move the cursor to the item you wish to move. Press and hold the clicking area while moving the item to its new location and then release it. Dragging can also be done using only the touchpad. First, tap the touchpad once over the item you wish to move with one finger.
-
Page 22: Troubleshooting
TROUBLESHOOTING Your computer is sturdy and subject to few problems in the field. However, you may encounter simple setup or operating problems that you can solve on the spot, or problems with peripheral devices, that you can solve by replacing the device. The information in this section helps you isolate and resolve some of these straightforward problems and identify failures that require service. -
Page 23: Regulatory Notices
REGULATORY NOTICES Manufacturer Information Quanta Computer Inc. No, 188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City,Taiwan, R.O.C. 桃園縣龜山區文化二路 188 號 Tel: +886-3-327-2345 Made in China Federal Communications Commission Declaration of Conformity Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause... - Page 24 REGULATORY NOTICES FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
- Page 25 REGULATORY NOTICES WEEE and recycling statements The Waste Electrical and Electronic Equipment (WEEE) Directive This symbol means that the equipment must not be disposed of as unsorted municipal waste, in accordance with the EU directive for waste electrical and electronic equipment (WEEE - 2012/19/ EU).
- Page 26 Attention: Teachers, Parents and Adult Supervisors in Safety Instructions This Chromebook is intended for use as a child development tool primarily by children, 6 years of age or above. There must be supervision by an adult. It is a must to have a thorough explanation to children on safe and proper handling of the LI9B –...
-
Page 27: Specifications
SPECIFICATIONS 16:9/HD (1,366 x 768)/Flat/Glossy type/LED backlight/LVDS and eDP interface Platform Intel Gemini Lake-Refresh Video Two internal speakers Audio One digital microphone on the camera One audio combo jack (Headphone & Microphone) Memory Supported up to 8G LPDDR4 1600 Storage eMMC 16GB/32GB (option) USB SKU: Two USB 3.0 port...
