OWNER’S MANUAL Safety and Reference LED TV* * LG LED TVs are LCD TVs with LED backlighting. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com...
Safety Instructions Please read these safety precautions carefully before using the product. WARNING Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. Do not place the TV and/or remote control in the following environments: • ...
Page 43
Do not insert any metal objects/conductors (like a metal chopstick/ When mounting TV onto wall make sure to neatly install and isolate cutlery/screwdriver) between power cable plug and input Wall Socket cabling from rear of TV as to not create possibility of electric shock / while it is connected to the input terminal on the wall.
Page 44
It may cause a fire or a burn by a spark. Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation. Do not disassemble, repair or modify the product at your own discretion.
Page 45
CAUTION When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard. Install the product where no radio wave occurs. We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV.
Page 46
When connecting external devices such as video game consoles, make Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay sure the connecting cables are long enough. Otherwise, the product particular attention to plugs, wall outlets, and the point where the cord may fall over, which may cause injury or damage the product.
Page 47
This panel is an advanced product that contains millions of pixels. When unplugging the cable, grab the plug and unplug it, by pulling at You may see tiny black dots and/or brightly coloured dots (red, blue the plug. or green) at a size of 1 ppm on the panel. This does not indicate a Don’t pull at the cord to unplug the power cord from the power board, malfunction and does not affect the performance and reliability of the as this could be hazardous.

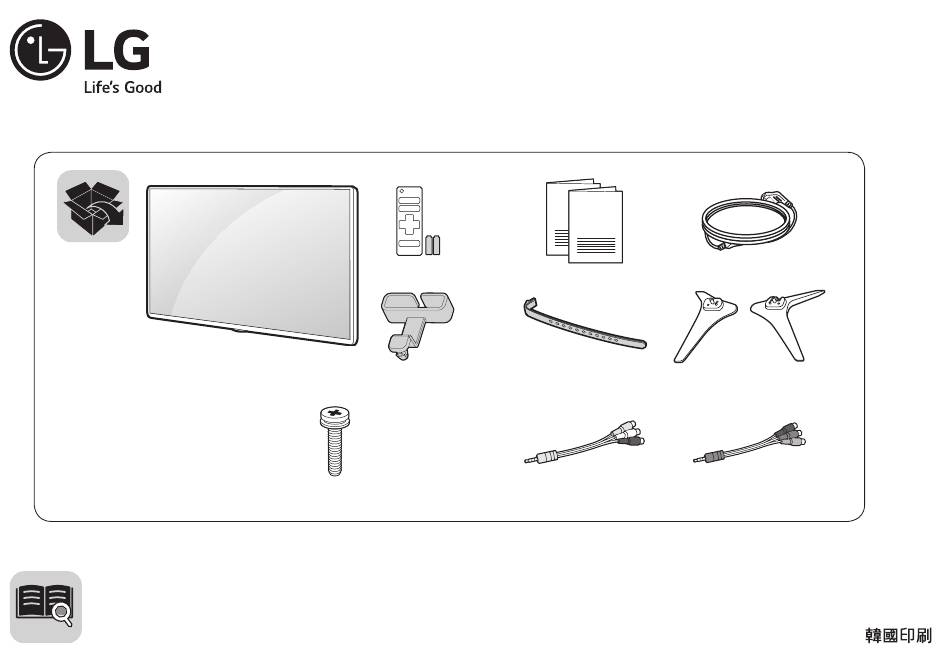

Preparing WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal NOTE injury or death. Many injuries, particularly to children, can be avoided by taking simple • If the TV is turned on for the first time after it was shipped from the precautions such as: factory, initialization of the TV may take a few minutes.
Lifting and moving the TV CAUTION • Avoid touching the screen at all times, as this may result in damage Please note the following advice to prevent the TV from being scratched to the screen. or damaged and for safe transportation regardless of its type and size. • ...
Mounting on a table Securing the TV to a wall 1 Lift and tilt the TV into its upright position on a table. (This feature is not available for all models.) • Leave a 10 cm (minimum) space from the wall for proper ventilation.
We recommend the use of LG’s wall mount bracket. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is...
Connections (notifications) Other connections Connect your TV to external devices. For the best picture and audio Connect various external devices to the TV and switch input modes to quality, Connect the external device and the TV with the HDMI cable. select an external device.
Remote control Wired network connection (Depending on model) (Depending on model) This TV can be connected to a Pro:Centric server via the LAN port. After The descriptions in this manual are based on the buttons on the remote making the physical connection, the TV needs to be set up for network control.
Page 54
- This feature is available on certain models which are supported ULTRA HD Deep Colour only. Licenses Supported licenses may differ by model. For more information about licenses, visit www.lg.com . Adjusts the volume level. Selects a smart menu. Manufactured under license from Dolby Laboratories. Dolby and the By zooming in on the selected area, you can view it double-D symbol are trademarks of Dolby Laboratories.
15 minutes of inactivity. When connecting to the PC (HDMI), ‘No signal’ or ‘Invalid Format’ is LG Electronics will also provide open source code to you on CD-ROM displayed. for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to • ...
External Control Device Setup • Image shown may differ from your TV. Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally. Note: The type of control port on the TV can be different between model series.
Page 59
(PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter which is not made nor provided by LG. • It can be purchased from computer stores that carry accessories for IT support professionals.
Page 60
Type of connector : D-Sub 9-Pin male RS-232C (Serial port) RS-232C Configurations 7-Wire Configurations 3-Wire Configurations (Standard RS-232C cable) (Not standard) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 Set ID For Set ID number, see “Real Data Mapping”. 1 Press to access the main menus.
Page 61
Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA DATA...
Page 62
Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] First command to control the TV. (j, k, m or x) [Command 2] Second command to control the TV. [Set ID] You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
Page 63
* Commands may work differently depending on model and signal. 04 Volume Mute (Command: k e) ▶ To control volume mute on/off. 01 Power (Command: k a) You can also adjust mute using the MUTE button on remote control. ▶ To control Power *On or Off of the set. Transmission [k][e][ ][Set ID][ ][Data][Cr] Transmission[k][a][ ][Set ID][ ][Data][Cr] Data...
Page 64
08 Color/Colour (Command: k i) 12 Remote control lock mode (Command: k m) ▶ To adjust the screen Color (Colour). ▶ To lock the front panel controls on the monitor and remote control. You can also adjust colour in the PICTURE menu. Transmission [k][m][ ][Set ID][ ][Data][Cr] Transmission [k][i][ ][Set ID][ ][Data][Cr] Data 00 : Lock off...
Page 65
15 Equalizer (Command : j v) 17 Tune Command (Command: m a) ▶ Adjust EQ of the set. * This command may work differently depending upon model and signal. Transmission [j][v][ ][Set ID][ ][Data][Cr] • For Europe, Mid-East, Colombia, Asia except South Korea and Japan Model ▶...
Page 66
3. Tune to the satellite (DVB-S) Channel 1000. Data 05 : Input Source (Digital) Set ID = All = 00 - 02 : Antenna TV (DTV) – Use Physical Channel Number Data 00 & 01 = Channel Data is 1000 = 03 E8 - 06 : Cable TV (CADTV) –...
Page 67
[Data 03][Data 04]: Minor/Branch Channel Number 20 Control Backlight (Command: m g) (Don’t care in Satellite) * For LCD TV / LED TV Data 03: High byte Channel Data ▶ To control the backlight. Data 04: Low byte Channel Data Transmission [m][g][ ][Set ID][ ][Data][Cr] Data 05 : Input Source (Digital/Satellite for Japan) Data Min : 00 to Max : 64...
Specifications HDMI (PC) supported mode (Use HDMI IN 1 for PC mode) Wireless module Specification Horizontal Frequency Vertical Frequency • As band channels can vary per country, the user cannot change or Resolution (kHz) (Hz) adjust the operating frequency. This product is configured for the regional frequency table.
Page 69
HDMI (DTV) supported mode Component port connecting information Horizontal Frequency Vertical Frequency Resolution (Depending on model) (kHz) (Hz) 31.46 59.94 Component ports on the TV 640 x 480 31.50 60.00 31.47 59.94 720 x 480 31.50 60.00 720 x 576 31.25 50.00 Video output ports on DVD player...
Page 72
Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
