Pull door to
the side then lower door
Remove hinge pin

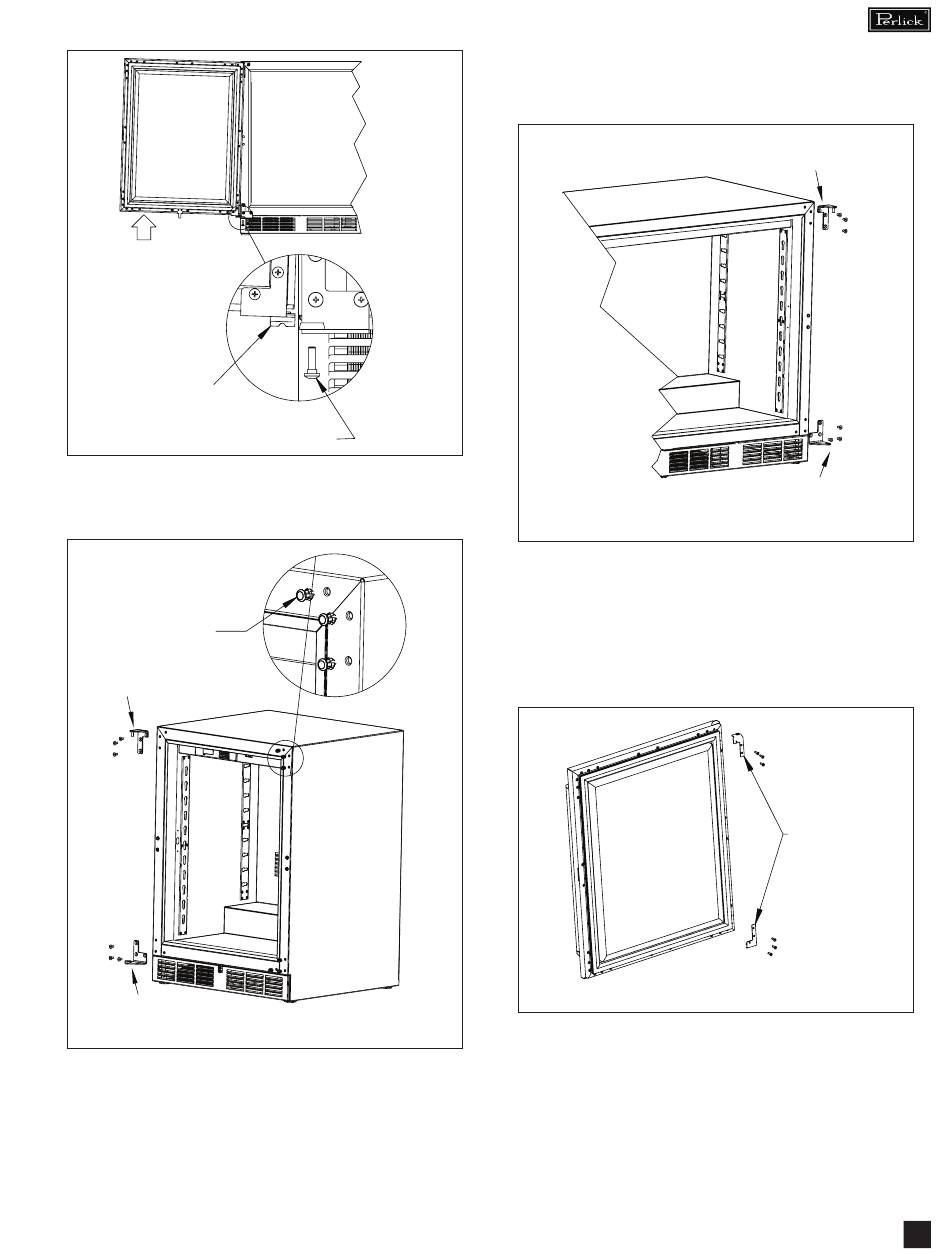

Figure 7. Door Removal
Hole plugs
Hinge brackets
and mounting
screws
Hinge brackets
and mounting
screws
Figure 8. Hinge Removal
PERLICK RESIDENTIAL INSTALLATION MANUAL
5). Using the screws removed in step 3, install the top and
bottom hinge brackets from the kit (Fig. 9).
Figure 9. Hinge Installation
6). Remove the top and bottom door hinge brackets and
the push plunger brackets (Fig. 10). Retain the screws for
later use.
Figure 10. Door Brackets
Hinge brackets
and mounting
screws
Hinge brackets
and mounting
screws
Hinge brackets
and mounting
screws
