Summary of Contents for Western Global ECW105

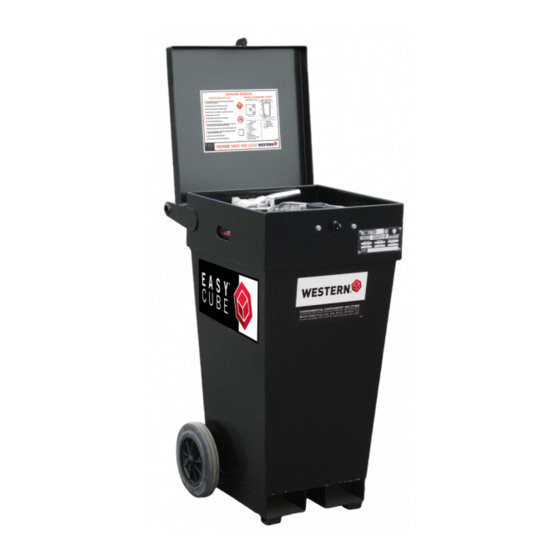

- Page 1 TRANSPORTABLE TANK ECW105 01/4710...
-
Page 2: Table Of Contents
Contents INTRODUCTION ........................ 1 DESCRIPTION ........................2 IDENTIFICATION MARKS ....................3 UNIT SPECIFICATION ......................4 SAFETY ..........................5 ACCESS AND SECURITY ..................... 8 CABINET OVERVIEW ......................9 LIFTING & HANDLING...................... 10 FILLING THE EASYCUBE ....................11 DISPENSING FUEL ......................11 TRANSPORTING ...................... -
Page 3: Introduction
• However, it is the owner’s / user’s sole responsibility to ensure that they and the tank fully comply with all legal requirements. Western Global cannot and will not accept any liability for any inaccuracy or incorrectly stated legal requirements •... -
Page 4: Description
WM038 EasyCube 105 v1 EN Feb 2021 DESCRIPTION UN IBC 31A/Y – (IBC) Intermediate Bulk Container The EasyCube is a UN IBC 31A/Y tank and has been designed to enable safe storage and transportation of Class 3 Flammable & Combustible fluids. •... -
Page 5: Identification Marks
WM038 EasyCube 105 v1 EN Feb 2021 IDENTIFICATION MARKS Each tank is supplied with a unique identification numbers. 1. UN IBC Serial Number 1, UN IBC Serial Number The UN IBC Plate is located on the front external of the tank Record your serial number here UN IBC Data-plate Serial Number Plant Number*... -
Page 6: Unit Specification
WM038 EasyCube 105 v1 EN Feb 2021 UNIT SPECIFICATION Capacities / Dimensions Capacity Model Litres US Gallon Imp. Gallon Nominal Safe Fill Nominal Safe Fill Nominal Safe Fill EASYCUBE 105 Weight Model TARE GROSS TARE GROSS EASYCUBE 105 Dimension Model Metric (mm) Imperial (Inch) EASYCUBE 105... -
Page 7: Safety
WM038 EasyCube 105 v1 EN Feb 2021 SAFETY Before using this equipment and to avoid personal injury, carefully read and understand these instructions. - Page 8 WM038 EasyCube 105 v1 EN Feb 2021 General If there is anything you do not understand, contact your supplier for advice • The unit must be operated by authorised personnel only • • This unit must not be moved, filled, maintained or operated by persons who are under the influence of alcohol or drugs, tired or unwell •...
- Page 9 WM038 EasyCube 105 v1 EN Feb 2021 Limitations of use The EASYCUBE is designed for the safe storage of Class 3 Flammable & • Combustible fluids, on site or in transit • Each unit should be filled up to a maximum of 95% (Safe Fill) of its stated Nominal capacity Safe practice The storage, transportation and dispensing of Flammable &...
-
Page 10: Access And Security
WM038 EasyCube 105 v1 EN Feb 2021 ACCESS AND SECURITY Inner tank For maintenance, inspection and cleaning, the inner tank can be fully removed from the containment. See Inner Tank Removal Access to the Pump Area • The lid is constructed of a heavy-duty steel, care should be taken when opening or closing Ensure the lid safety catch is engaged •... -
Page 11: Cabinet Overview
WM038 EasyCube 105 v1 EN Feb 2021 CABINET OVERVIEW 1. Vent / Fill Cap 2. Inner Tank 3. 1” Hand Pump 4. 1” Deliver Hose 5. ¾” Ball Valve – ¾” to 1” Reducing nipple – ¾” Nipple 6. ¾” feed Block... -
Page 12: Lifting & Handling
WM038 EasyCube 105 v1 EN Feb 2021 LIFTING & HANDLING IMPORTANT: Always prepare a Lifting Plan/Risk Assessment. By Forklift / Tele-handler • Each EASYCUBE is fitted with forklift pockets which are designed to allow the EASYCUBE to be raised by a forklift/tele-handler. The EASYCUBE can be lifted from both the front and the back. -
Page 13: Filling The Easycube
WM038 EasyCube 105 v1 EN Feb 2021 FILLING THE EASYCUBE DO NOT FILL TANK WHEN DISPENSING IS IN OPERATION • • Only fill the EASYCUBE to 95% (Safe Fill) of its nominal capacity • Filling should only be performed by a suitably trained person and only following a full risk assessment The EASYCUBE must be positioned on a firm level surface, whether static, truck •... -
Page 14: Maintenance And Service Schedule
WM038 EasyCube 105 v1 EN Feb 2021 MAINTENANCE AND SERVICE SCHEDULE V = Visual inspection P = Physical Check L = Lubricate Reference / Item Daily Weekly Monthly 6 Monthly Yearly Other Comments General Check site and Housekeeping tank. Remove debris etc. -
Page 15: Statutory Inspection And Maintenance
Every 5 years • Internal inspection • External inspection • Function of all services equipment • Leak test. NOTE: The 2 ½ and 5-year Inspection must be carried out by a competent person. Contact Western Global for details on training plans. - Page 16 WM038 EasyCube 105 v1 EN Feb 2021 Record Keeping A report of each inspection and test shall be kept by the owner of the IBC at least until the next inspection or test. The report shall include the results of the inspection and test and shall identify the party performing the inspection and test.
-
Page 17: Inner Tank Removal
WM038 EasyCube 105 v1 EN Feb 2021 INNER TANK REMOVAL For periodic inspection you may be required to remove the inner tank from the containment. Follow local Health and Safety rules when carrying out this operation. IMPORTANT - Ensure the tank is empty before lifting. 1. -
Page 18: Environmental Responsibility
WM038 EasyCube 105 v1 EN Feb 2021 ENVIRONMENTAL RESPONSIBILITY Correct and considerate management of Flammable & Combustible fluids, its storage and transfer are the responsibility of everyone who operates or maintains this equipment. All necessary precautions should be made to prevent spills and subsequent pollution of the environment. -
Page 19: Trouble-Shooting
Below we have listed common problems, causes and solutions that you may encounter. If a problem is difficult to solve, even after having read through this trouble- shooting section, please call your local Western Global distributor or dealer. PROBLEM CAUSE... -
Page 20: Warranty
WM038 EasyCube 105 v1 EN Feb 2021 WARRANTY The Company undertakes to replace or repair, free of charge, any defect which Company considers to be due to faulty workmanship or material within 36 months (or otherwise stated) of the sale date, except for: Defects arising from neglect, misuse or unauthorised modifications.
