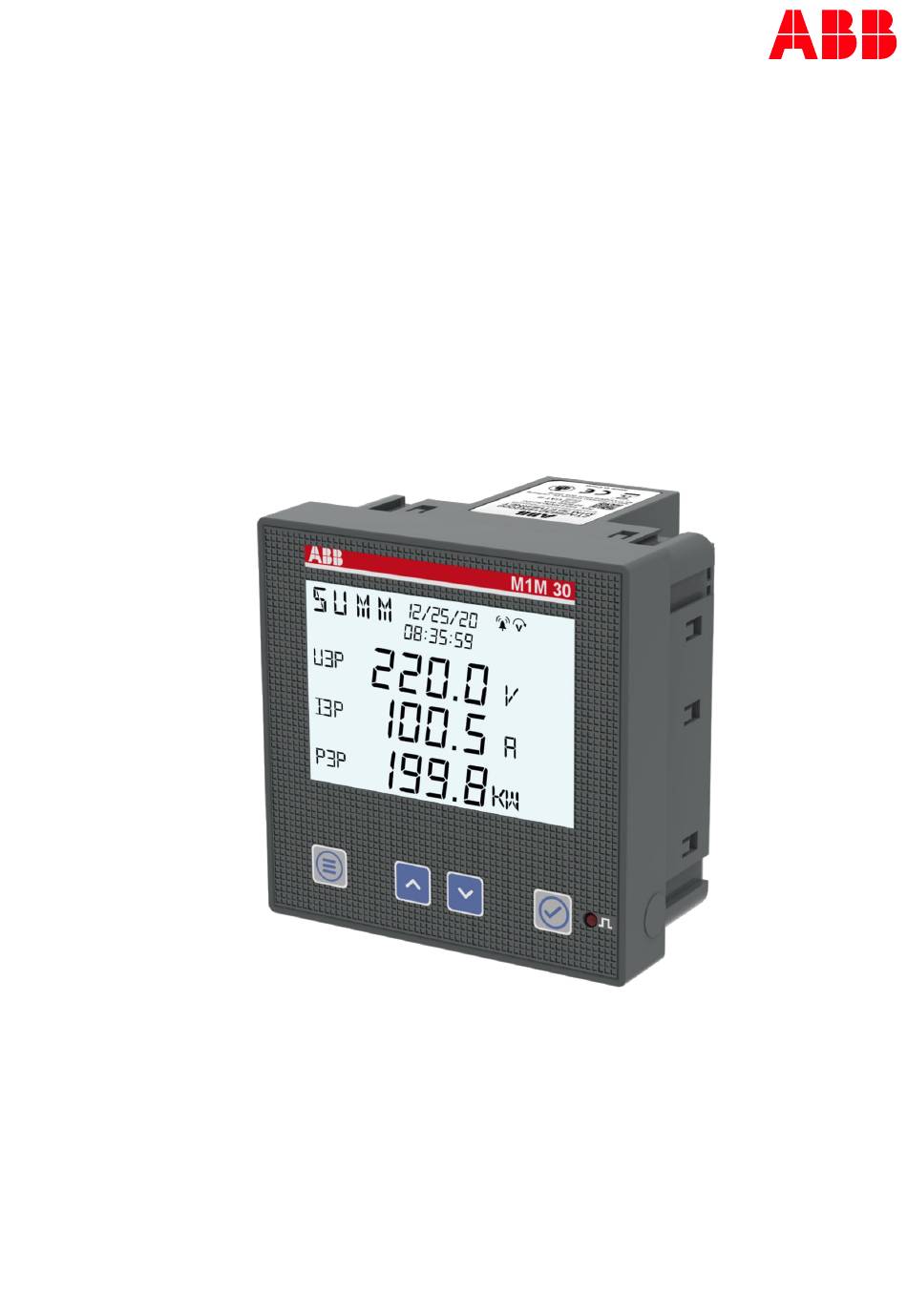

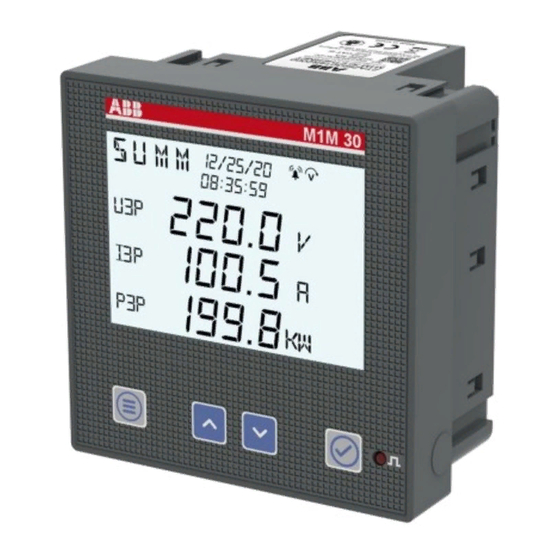

- Page 1 — CO MM I S S I ON I NG G UI D E L IN E M1M Firmware update Getting started 1 /8 9AKK108466A3466...
- Page 2 1 Material and tools needed ......................3 2 Initial settings on M1M device ....................3 M1M Modbus RTU (M4M 15 Modbus, M1M 20 Modbus, M1M 20 I/O, M1M 30 Modbus, M1M 30 I/O) ....................3 M1M Ethernet (M1M 20 Ethernet, M1M 30 Ethernet) ............4 3 Procedure via M1M FW update tool ..................
- Page 3 In case of product communicating via Modbus TCP/IP, please follow the • dedicated section "M1M Ethernet" M1M Modbus RTU (M4M 15 Modbus, M1M 20 Modbus, M1M 20 I/O, M1M 30 Modbus, M1M 30 I/O) A. Check that Modbus RTU cable connected to the ABB power meter is cor- rectly connected...
- Page 4 • Protocol = 8E1 (8 bit data, even parity and 1 bit stop) • RTU address for Master Device = 1 • RTU address for M1M slave device: to be inserted starting from 2 to 247. TIP: Each device shall be provided with a different slave address.
- Page 5 M 1M F IRMWAR E UP DAT E Procedure via M1M FW update tool After opening the FW update tool, two different procedures are needed in case of connection via Modbus RTU or Modbus TCP/IP Connection to M1M 3.1.1 Modbus RTU (M1M Modbus)
- Page 6 M 1M F IRMWAR E UP DAT E 3.1.2 Connection via Modbus TCP/IP (M1M Ethernet) Select type: Ethernet MB It is needed to enter the main communication parameters of the device: IP Address: enter the value of the device that can be found in the "MENU"→"CONF"→"COMM"→”IP”...
- Page 7 FW update A. Download the M1M FW version from the ABB Library here B. Please click on “Open File” C. Select the latest M1M FW version available (.enc file previously extracted from the .zip). D. Please click on “Download” 7/ 8...
- Page 8 M1M during the FW update process, in or- der to have a successful update. E. Please do not unplug the M1M’s auxiliary power supply during this opera- tion. F. As the FW update is completed successfully, you can check the installed FW version on your M1M directly on the “MENU”→”CONF”→”UNIT”→”INFO”...
